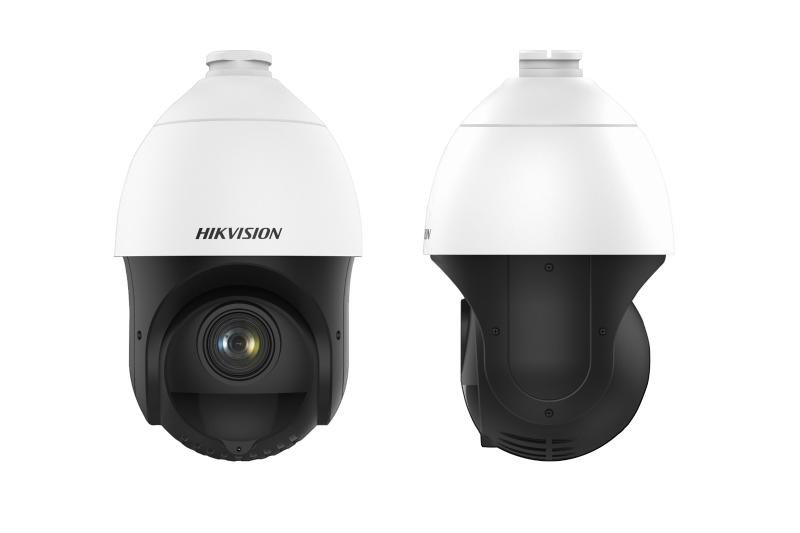

4-inch 2 MP 25X Powered by DarkFighter IR Network Speed Dome

  • Accurate human and vehicle target classification and alarm based on deep learning algorithm
  • Support face capture. Up to 5 faces captured at the same time
  • 1/2.8" Progressive Scan CMOS
  • Up to 1920 × 1080@30fps resolution
  • Min. illumination: Color: 0.005Lux @ (F1.6，AGC ON),B/W: 0.001Lux @(F1.6，AGC ON),0 Lux with IR
  • 25× optical zoom, 16× digital zoom
  • WDR, HLC, BLC, 3D DNR, Defog, Regional Exposure, Regional Focus
  • Up to 100m IR distance
  • 12VDC & POE(802.3at)
  • Support H.265+/H.265 video compression

View Less
View more
Sales Inquiry

Available models:

DS-2DE4225IW-DE(S5)
DS-2DE4225IW-DE(S5)
EOL

Specification

  • Camera
  • Image Sensor1/2.8＂ progressive scan CMOS
  • Max. Resolution1920 × 1080
  • Min. Illumination0 Lux with IR,color: 0.005Lux @ (F1.6，AGC ON); B/W: 0.001Lux @ (F1.6，AGC ON)
  • Shutter Speed1/1s-1/30000s
  • Day & NightICR
  • Zoom16x
  • Slow Shutteryes
  • Optical Zoom25x
  • Lens
  • Focal Length4.8 mm to 120 mm, 25× Optical
  • FOVHorizontal field of view: 57.6° to 2.5° (wide-tele), Vertical field of view: 34.4° to 1.4° (wide-tele), Diagonal field of view: 64.5° to 2.9° (wide-tele)
  • Focussemi-auto||manual||auto||半自动/手动/自动
  • ApertureF1.6
  • Zoom Speedapprox. 3.6 s
  • Illuminator
  • Supplement Light RangeIR distance: 100 m
  • PTZ
  • Movement Range (Pan)360°
  • Movement Range (Tilt)-15° to 90° (auto flip)
  • Pan Speedpan speed: configurable from 0.1° to 80°/s; preset speed: 80°/s
  • Tilt Speedtilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
  • Proportional Panyes
  • Presets300
  • Preset Freezingyes
  • Patrol Scan8 patrols, up to 32 presets for each patrol
  • Pattern Scan4 pattern scans
  • Park Actionpreset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan
  • 3D Positioningyes
  • PTZ Status Displayyes
  • Scheduled Taskpreset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan||dome reboot||dome adjust||aux output
  • Power-off Memoryyes
  • Video
  • Main Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • Sub-Stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
  • Third Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
  • Video CompressionH.265||H.264||MJPEG
  • Video Bit Rate32kbps to 16384kbps
  • H.264 TypeBaseline Profile||Main Profile||High Profile||baseline profile||main profile||high profile
  • H.265 TypeMain Profile||main profile
  • Scalable Video Coding (SVC)yes
  • Region of Interest (ROI)fixed region||main stream, sub-stream and third stream respectively support eight fixed areas
  • Audio
  • Audio CompressionG.711alaw||G.711ulaw||G.722.1||G.726||MP2L2||PCM
  • Audio Bit RateMP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps||MP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps, 192 kbps||192kbps
  • Audio Sampling RateMP2L2: 16 kHz, 32 kHz, 48 kHz, PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz
  • Environment Noise Filteringyes
  • Network
  • ProtocolsIPv4/IPv6||HTTP||HTTPS||802.1x||Qos||FTP||SMTP||UPnP||SNMP||DNS||DDNS||NTP||RTSP||RTCP||RTP||TCP/IP||UDP||IGMP||ICMP||DHCP||PPPoE||Bonjour
  • Simultaneous Live View20
  • APIISAPI||Hikvision SDK||Hik-Connect||ONVIF (Profile S, Profile G, Profile T)||ISUP
  • Smooth Streamingyes
  • User/Host32
  • SecurityAuthenticated username and password||MAC address binding||HTTPS encryption||802.1X authenticated access||IP address filter
  • Network StorageNAS (NFS, SMB/ CIFS)||ANR
  • ClientiVMS-4200||Hik-Connect
  • Web BrowserIE 8 to 11, Chrome 57+, Firefox 52+, Safari 12+
  • Image
  • Image Settingssaturation||brightness||contrast||sharpness
  • Day/Night Switchday, night, auto, scheduled-switch
  • Wide Dynamic Range (WDR)120 dB WDR
  • SNR＞52dB
  • Defogyes
  • Image StabilizationEIS
  • Image EnhancementBLC,HLC,3D DNR
  • Privacy Maskup to 24 masks||polygon region ||mosaic mask ||mask color configurable
  • Regional Focusyes
  • Regional Exposureyes
  • Interface
  • Ethernet InterfaceRJ45, self-adaptive 10M/100M Ethernet port||1 RJ45 10 M/100 M Ethernet interface; PoE (802.3at)
  • On-board Storagesupport microSD/microSDHC/microSDXC cards||up to 256 GB
  • Audio1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
  • Alarm1 alarm input, 1 alarm output
  • Resetyes
  • Event
  • Basic Eventaudio exception||motion detection||video tampering alarm||exception
  • Smart Eventintrusion detection||line crossing detection||region entrance detection||region exiting detection||unattended baggage detection||object removal detection
  • Linkagepreset||patrol scan||pattern scan||memory card video recording||alarm output||sending email||notify surveillance center|| upload to FTP
  • Deep Learning Function
  • Face Captureyes
  • General
  • Power12 VDC,PoE(802.3at)
  • DimensionΦ 164.5 mm × 290 mm (Φ 6.48" × 11.42")
  • WeightApprox. 2 kg (4.41 lb)
  • MaterialADC 12, PC, PC+10% GF
  • Operating Conditionhumidity lower than 90%RH ||temperature: -30℃ to 65℃ (-22°F to 149°F)
  • Power Consumption and CurrentMax. 24 W, including max. 9 W for supplement light
  • Approval
  • ProtectionIP66||IP66; 4000V 防雷、防浪涌、防突波，符合GB/T17626.5 四级标准||4000V Lightning Protection, Surge Protection and Voltage Transient Protection
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Camera
Image Sensor
1/2.8＂ progressive scan CMOS
Max. Resolution
1920 × 1080
Min. Illumination
0 Lux with IR,color: 0.005Lux @ (F1.6，AGC ON); B/W: 0.001Lux @ (F1.6，AGC ON)
Shutter Speed
1/1s-1/30000s
Day & Night
ICR
Zoom
16x
Slow Shutter
yes
Optical Zoom
25x
Lens
Focal Length
4.8 mm to 120 mm, 25× Optical
FOV
Horizontal field of view: 57.6° to 2.5° (wide-tele), Vertical field of view: 34.4° to 1.4° (wide-tele), Diagonal field of view: 64.5° to 2.9° (wide-tele)
Focus
semi-auto||manual||auto||半自动/手动/自动
Aperture
F1.6
Zoom Speed
approx. 3.6 s
Illuminator
Supplement Light Range
IR distance: 100 m
PTZ
Movement Range (Pan)
360°
Movement Range (Tilt)
-15° to 90° (auto flip)
Pan Speed
pan speed: configurable from 0.1° to 80°/s; preset speed: 80°/s
Tilt Speed
tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
Proportional Pan
yes
Presets
300
Preset Freezing
yes
Patrol Scan
8 patrols, up to 32 presets for each patrol
Pattern Scan
4 pattern scans
Park Action
preset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan
3D Positioning
yes
PTZ Status Display
yes
Scheduled Task
preset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan||dome reboot||dome adjust||aux output
Power-off Memory
yes
Video
Main Stream
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream
50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Third Stream
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video Compression
H.265||H.264||MJPEG
Video Bit Rate
32kbps to 16384kbps
H.264 Type
Baseline Profile||Main Profile||High Profile||baseline profile||main profile||high profile
H.265 Type
Main Profile||main profile
Scalable Video Coding (SVC)
yes
Region of Interest (ROI)
fixed region||main stream, sub-stream and third stream respectively support eight fixed areas
Audio
Audio Compression
G.711alaw||G.711ulaw||G.722.1||G.726||MP2L2||PCM
Audio Bit Rate
MP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps||MP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps, 192 kbps||192kbps
Audio Sampling Rate
MP2L2: 16 kHz, 32 kHz, 48 kHz, PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz
Environment Noise Filtering
yes
Network
Protocols
IPv4/IPv6||HTTP||HTTPS||802.1x||Qos||FTP||SMTP||UPnP||SNMP||DNS||DDNS||NTP||RTSP||RTCP||RTP||TCP/IP||UDP||IGMP||ICMP||DHCP||PPPoE||Bonjour
Simultaneous Live View
20
API
ISAPI||Hikvision SDK||Hik-Connect||ONVIF (Profile S, Profile G, Profile T)||ISUP
Smooth Streaming
yes
User/Host
32
Security
Authenticated username and password||MAC address binding||HTTPS encryption||802.1X authenticated access||IP address filter
Network Storage
NAS (NFS, SMB/ CIFS)||ANR
Client
iVMS-4200||Hik-Connect
Web Browser
IE 8 to 11, Chrome 57+, Firefox 52+, Safari 12+
Image Settings
saturation||brightness||contrast||sharpness
Day/Night Switch
day, night, auto, scheduled-switch
Wide Dynamic Range (WDR)
120 dB WDR
SNR
＞52dB
Defog
yes
Image Stabilization
EIS
Image Enhancement
BLC,HLC,3D DNR
Privacy Mask
up to 24 masks||polygon region ||mosaic mask ||mask color configurable
Regional Focus
yes
Regional Exposure
yes
Interface
Ethernet Interface
RJ45, self-adaptive 10M/100M Ethernet port||1 RJ45 10 M/100 M Ethernet interface; PoE (802.3at)
On-board Storage
support microSD/microSDHC/microSDXC cards||up to 256 GB
Audio
1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
Alarm
1 alarm input, 1 alarm output
Reset
yes
Event
Basic Event
audio exception||motion detection||video tampering alarm||exception
Smart Event
intrusion detection||line crossing detection||region entrance detection||region exiting detection||unattended baggage detection||object removal detection
Linkage
preset||patrol scan||pattern scan||memory card video recording||alarm output||sending email||notify surveillance center|| upload to FTP
Deep Learning Function
Face Capture
yes
General
Power
12 VDC,PoE(802.3at)
Dimension
Φ 164.5 mm × 290 mm (Φ 6.48" × 11.42")
Weight
Approx. 2 kg (4.41 lb)
Material
ADC 12, PC, PC+10% GF
Operating Condition
humidity lower than 90%RH ||temperature: -30℃ to 65℃ (-22°F to 149°F)
Power Consumption and Current
Max. 24 W, including max. 9 W for supplement light
Approval
Protection
IP66||IP66; 4000V 防雷、防浪涌、防突波，符合GB/T17626.5 四级标准||4000V Lightning Protection, Surge Protection and Voltage Transient Protection
