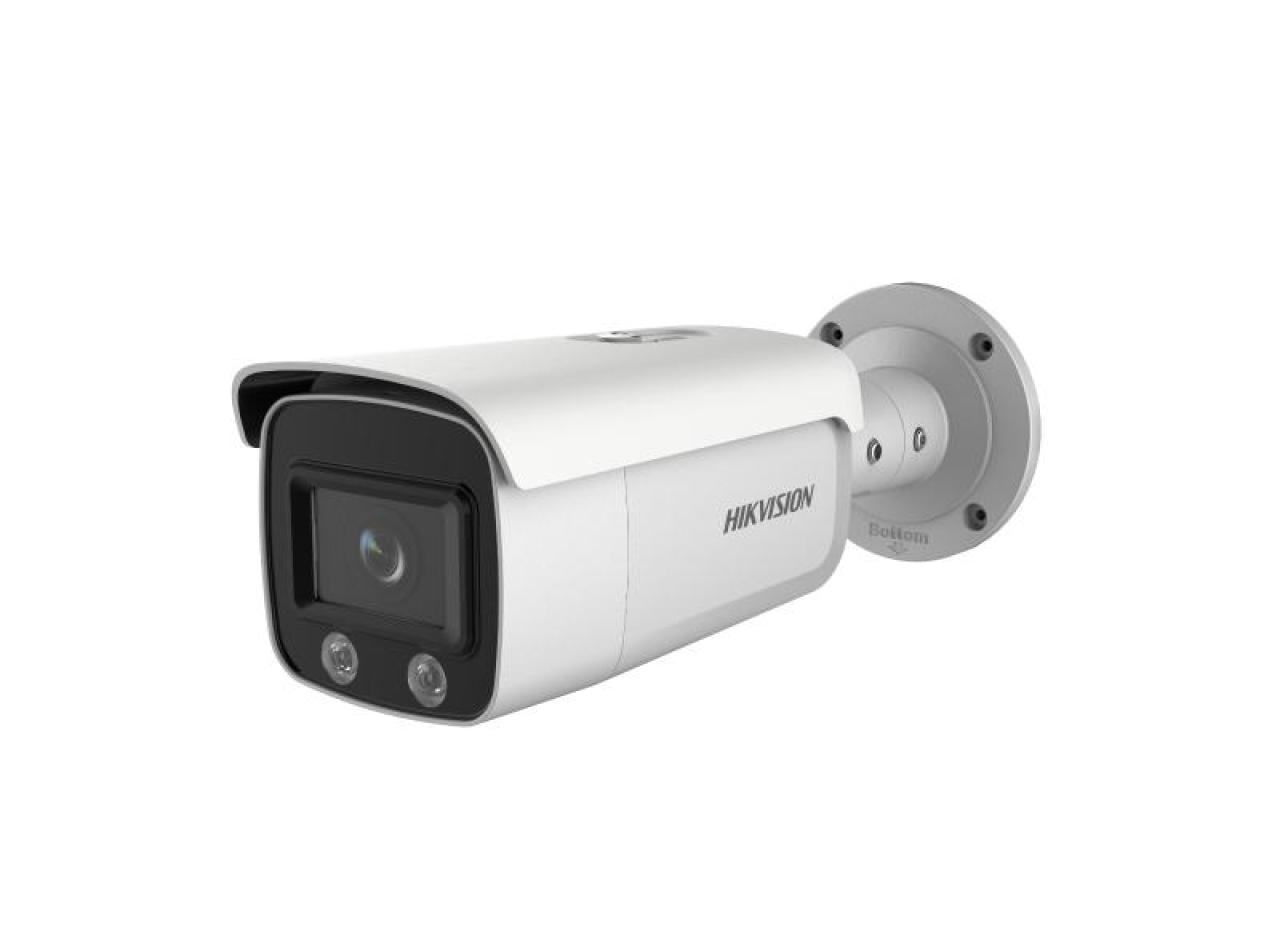

4MP ColorVu Fixed Bullet Network Camera

High quality imaging with 4 MP resolution
24/7 full color imaging
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB true WDR technology
Audio and alarm interface available
Water and dust resistant (IP67)
Robust structure design with full metal materials

View Less

Available models:

DS-2CD3T47G1-LS(6mm)

DS-2CD3T47G1-LS(4mm)

DS-2CD3T47G1-LS

EOL

Specification
Resources
Accessories

Camera
Image Sensor1/1.8" Progressive Scan CMOS
Min. IlluminationMin. Illumination 0.0014 @ (F1.0, AGC ON), 0 Lux with Light
Shutter Speed1/3 s to 1/100,000 s
Slow ShutterYes
Day &NightIR cut filter
Wide Dynamic Range120dB
Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
DNR3D DNR

Lens
Focal length4/6 mm
ApertureF1.0
FocusFixed
FOVFOV 4 mm, horizontal FOV: 94°, vertical FOV: 48°, diagonal FOV: 115° 6 mm, horizontal FOV: 57°, vertical FOV: 31°, diagonal FOV: 67°
Lens MountM16

Audio
Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
Environment Noise FilteringYes
Sampling Rate8kHz/16kHz/32kHz/44.1kHz/48kHz

Smart Feature-Set
Behavior AnalysisLine crossing detection, intrusion detection, object removal detection, unattended baggage detection
Exception DetectionScene change detection
Face DetectionYes

Max. Resolution2688 × 1520
Main Stream50Hz: 25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720) 60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)
Sub-Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288) 60Hz: 30fp s(1280 × 720, 640 × 360, 352 × 240)
Image EnhancementBLC/3D DNR/HLC
Image SettingRotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Day/Night SwitchDay/Night
ROISupport 1 fixed region for main stream and sub-stream separately

Network
Network StorageSupport micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
APIONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live ViewUp to 6 channels
User/HostUp to 32 users 3 levels: Administrator, Operator and User
ClientiVMS-4200, Hik-Connect, iVMS-4500, iVMS-5200
Web BrowserPlug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11 Plug-in free live view: Chrome 45.0+, Firefox 52.0+
Alarm TriggerMotion detection, video tampering detection, network disconnected, IP address conflict, illegal login, HDD full, HDD error
General FunctionOne-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Firmware VersionV5.5.82

Interface
Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
Audio1 audio input (line in), 1 audio output (line out), mono sound
Alarm1 alarm input, 1 alarm output
On-board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 128 GB
Reset ButtonYes

Compression Standard
Video CompressionMain stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
H.264 TypeMain Profile/High Profile
H.264+Main stream supports
H.265 TypeMain Profile
H.265+Main stream supports
Video Bit Rate32 Kbps to 16 Mbps

General
Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
Power Supply12 VDC ± 25%, 5.5 mm coaxial power plug PoE (802.3af, class 3)
Power Consumption and CurrentPower Consumption 12 VDC, 0.7 A, max. 9.5 W PoE: (802.3af, 36 V to 57 V), 0.3 A to 0.1 A, max. 11 W
MaterialMaterial Front cover: metal, back cover: metal
DimensionsCamera: Φ 105 × 327.2 mm (Φ 4.1" × 12.9") With package: 385 × 190 × 180 mm (15.2" × 7.5" × 7.1")
WeightWeight Camera: 1195 g (2.6 lb.) With package: 1789 g (3.9 lb.)
Protection LevelIP67
Visible Light RangeUp to 30m
