EOL

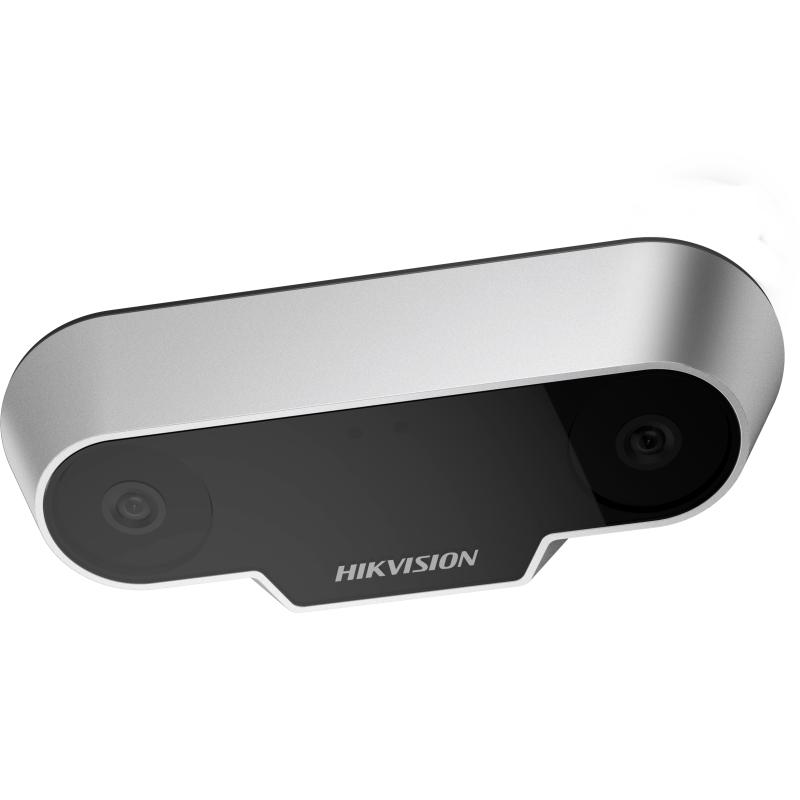

Dual-Lens People Counting Network Camera

  • Max. resolution 640 × 960
  • Dual lens, dual CPU, support stereo views
  • 2 mm/2.8 mm/4 mm lens, optional
  • Efficient H.264 compression technology
  • Flash memory storing people counting data
  • 3D digital noise reduction
  • 12 VDC/PoE
View Less
View more

Available models:

iDS-2CD6810F/C(2.0mm)
iDS-2CD6810F/C(2.8mm)
iDS-2CD6810F/C(4mm)

Specification

  • Camera
  • Image Sensor1/3″ Progressive Scan CMOS
  • Shutter Speed1/25 s to 1/10,000 s
  • Digital Noise Reduction3D DNR
  • Auto-irisManual
  • Lens
  • Aperture2 mm: F2.2 2.8 mm: F2.0 4 mm: F2.2
  • FOV2 mm: horizontal FOV 105°, vertical FOV 89° 2.8 mm: horizontal FOV 83°, vertical FOV 68° 4 mm: horizontal FOV 63°, vertical FOV 55°
  • Lens MountM12
  • Focal length2 mm, 2.8 mm and 4 mm, optional
  • Image
  • Image Enhancement3D DNR
  • Image SettingBrightness and sharpness are adjustable by client software or web browser
  • Max. Resolution640 × 960
  • Main StreamMax. Frame Rate50Hz: 25fps (640 × 480) 60Hz: 24fps (640 × 480)
  • Sub-streamMax. Frame Rate50Hz: 25fps (640 × 960) 60Hz: 24fps (640 × 960)
  • Network
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
  • APIISAPI, HTTP
  • Simultaneous Live ViewUp to 6 channels
  • User/HostUp to 32 users 3 levels: Administrator, Operator and User
  • ClientiVMS-4200
  • Web BrowserIE8+, Chrome31-44, Firefox 30.0 - 51
  • Alarm TriggerVideo tampering, alarm input, alarm output, network disconnected, IP address conflict, illegal login
  • General FunctionOne-key reset, anti-flicker, heartbeat, password protection, watermark
  • Interface
  • Communication Interface1 RJ45 10M/100M Ethernet port 1 RS-485 interface
  • Alarm1 input, 1 output (up to 12 VDC 30mA)
  • Compression Standard
  • H.264 Compression TypeBaseline Profile/Main Profile/High Profile
  • Video CompressionMain stream: H.264 Sub-stream: H.264
  • Video Bitrate32 Kbps to 8 Mbps
  • General
  • Power Supply12 VDC ± 25%, 5.5 mm coaxial power plug PoE (802.3af, class 3)
  • Power Consumption and Current12 VDC, max. 5 W, 0.42 A PoE(802.3af 36 V to 57 V) , max. 7 W, 0.2 A to 0.13 A
  • MaterialBody: metal; enclosure: plastic
  • DimensionsCamera: 194 × 70.2 × 35.8 mm (7.64″ × 2.76″ × 1.4″) Package: 225 × 125 × 76 mm (8.86″ × 4.92″ × 2.99″)
  • WeightApprox. 300 g (0.66 lb), 480 g (1.06 lb) with package
  • Operating Conditions-10 °C to +40 °C (+14 °F to +104 °F), humidity 95% or less, no condensing

Specification

Specification
Camera
  • Image Sensor1/3″ Progressive Scan CMOS
  • Shutter Speed1/25 s to 1/10,000 s
  • Digital Noise Reduction3D DNR
  • Auto-irisManual
Lens
  • Aperture2 mm: F2.2 2.8 mm: F2.0 4 mm: F2.2
  • FOV2 mm: horizontal FOV 105°, vertical FOV 89° 2.8 mm: horizontal FOV 83°, vertical FOV 68° 4 mm: horizontal FOV 63°, vertical FOV 55°
  • Lens MountM12
  • Focal length2 mm, 2.8 mm and 4 mm, optional
  • Image Enhancement3D DNR
  • Image SettingBrightness and sharpness are adjustable by client software or web browser
  • Max. Resolution640 × 960
  • Main StreamMax. Frame Rate50Hz: 25fps (640 × 480) 60Hz: 24fps (640 × 480)
  • Sub-streamMax. Frame Rate50Hz: 25fps (640 × 960) 60Hz: 24fps (640 × 960)
Network
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
  • APIISAPI, HTTP
  • Simultaneous Live ViewUp to 6 channels
  • User/HostUp to 32 users 3 levels: Administrator, Operator and User
  • ClientiVMS-4200
  • Web BrowserIE8+, Chrome31-44, Firefox 30.0 - 51
  • Alarm TriggerVideo tampering, alarm input, alarm output, network disconnected, IP address conflict, illegal login
  • General FunctionOne-key reset, anti-flicker, heartbeat, password protection, watermark
Interface
  • Communication Interface1 RJ45 10M/100M Ethernet port 1 RS-485 interface
  • Alarm1 input, 1 output (up to 12 VDC 30mA)
Compression Standard
  • H.264 Compression TypeBaseline Profile/Main Profile/High Profile
  • Video CompressionMain stream: H.264 Sub-stream: H.264
  • Video Bitrate32 Kbps to 8 Mbps
General
  • Power Supply12 VDC ± 25%, 5.5 mm coaxial power plug PoE (802.3af, class 3)
  • Power Consumption and Current12 VDC, max. 5 W, 0.42 A PoE(802.3af 36 V to 57 V) , max. 7 W, 0.2 A to 0.13 A
  • MaterialBody: metal; enclosure: plastic
  • DimensionsCamera: 194 × 70.2 × 35.8 mm (7.64″ × 2.76″ × 1.4″) Package: 225 × 125 × 76 mm (8.86″ × 4.92″ × 2.99″)
  • WeightApprox. 300 g (0.66 lb), 480 g (1.06 lb) with package
  • Operating Conditions-10 °C to +40 °C (+14 °F to +104 °F), humidity 95% or less, no condensing

Firmware

Applied to:
iDS-2CD6810F/C(2.0mm)
iDS-2CD6810F/C(2.8mm)
iDS-2CD6810F/C(4mm)
For better user experience, we highly recommend you to update your device to the latest firmware asap.
