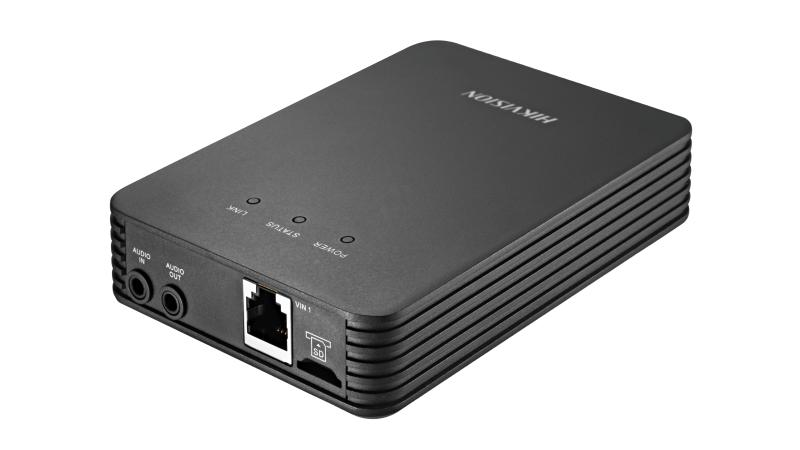

Separated Network Camera

High quality imaging with 1.3 MP resolution
Clear imaging against strong back light due to 120 dB true WDR technology

View Less

Data Sheet

Available models:

DS-2CD6412FWD-C2

DS-2CD6412FWD-XX

EOL

Specification
Resources
Accessories

Data Sheet

Camera
Image Sensor1/3’’ Progressive Scan CMOS
Min. Illumination-L10/L20/10/20: Color: 0.037 Lux @(F2.3,AGC ON); B/W: 0.0037Lux @(F2.3,AGC ON),-L30/30: Color: 0.028 Lux @(F2.0,AGC ON); B/W: 0.0028Lux @(F2.0,AGC ON),
Shutter Speed1s ~ 1/100,000s
Slow ShutterYes
DNR3D DNR
WDR120dB
Day & NightElectronic
Length of Lens CableOptional 2m or 8m
Lens-L10/L20/10/20: 2.8/3.7mm@ F2.3, angle of view: 80°/57°,-L30/30: 2.0/2.8/4/6 mm@ F2.0, angle of view: 120°(2.0mm),92°(2.8mm),73° (4mm),46°(6mm),
Lens MountM12
Number of lenses-C1: Camera body with single lens,-C2: Camera body with dual lens,

Frame Rate50Hz: 25fps (1280 × 960, 1280 × 720),60Hz: 30fps (1280 × 960, 1280 × 720),
Image SettingsRotate mode(first channel), saturation, brightness, contrast, sharpness and gray scale adjustable
DefogYes, zone optional
EISSupport
Highlight CompensationSupport(First channel)
Day / Night modeSupport
Image OverlayAuto / Timing / Alarm trigger
Max. Resolution1280 × 960
Third StreamOnly single channel camera supports third stream, which is independent with main stream, up to,50Hz: 25fps (1280 × 960); 60Hz: 30fps (1280 × 960),
ROI CodecSupport 128 × 128 size BMP with 24-bit depth image overlay, zone optional

Network
Network StorageUp to 4 fixed areas in each stream
ProtocolsModel with single lens: Intrusion detection, audio exception detection, defocus detection,All models: motion detection, face detection, dynamic analysis, tampering alarm, network disconnect, IP address conflicts, storage full, storage error,
SecurityTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Simultaneous Live ViewONVIF(PROFILE S, PEOFILE G), ISAPI
DetectionSupport Micro SD/SDHC/SDXC slot, up to 128GB,Edge recording, NAS (NFS,SMB/CIFS)
Firmware VersionReset, flickerless, multi-stream, heartbeat, rotate, password protection, video masking, watermark, anonymous login, IP address filtering

Interface
Alarm1 3.5mm audio in(Mic in/Line in)/out interface
Video Output1 RJ45 10M/100M Ethernet interface/ 1 RS232/ 1 RS-485
On-board Storage1 input, 1 output

Compression Standard
H.264 TypeBaseline Profile / Main Profile / High Profile
Video CompressionH.264/MJPEG4/MJPEG
Audio CompressionG.711/G.722.1/G.726/MP2L2
Video Bit Rate32 Kbps – 16 Mbps
Audio Bit Rate64Kbps(G.711) / 16Kbps(G.726) /64Kbps(MP2L2)

General
Power Supply-30 °C – 60 °C (-22 °F – 140 °F),Humidity 95% or less (non-condensing),
Weight78×105×32 mm (3.07” × 4.13” × 1.26”)
Power Consumption12 VDC ± 10% / PoE (802.3af)
Shipping WeightMax. 8.26 W
Net Weight2m cable: <570g,8m cable: <680g,

Camera

Image Sensor

1/3’’ Progressive Scan CMOS

Min. Illumination

-L10/L20/10/20: Color: 0.037 Lux @(F2.3,AGC ON); B/W: 0.0037Lux @(F2.3,AGC ON),-L30/30: Color: 0.028 Lux @(F2.0,AGC ON); B/W: 0.0028Lux @(F2.0,AGC ON),

Shutter Speed

1s ~ 1/100,000s

Slow Shutter

Yes

DNR

3D DNR

WDR

120dB

Day & Night

Electronic

Length of Lens Cable

Optional 2m or 8m

Lens

-L10/L20/10/20: 2.8/3.7mm@ F2.3, angle of view: 80°/57°,-L30/30: 2.0/2.8/4/6 mm@ F2.0, angle of view: 120°(2.0mm),92°(2.8mm),73° (4mm),46°(6mm),

Lens Mount

M12

Number of lenses

-C1: Camera body with single lens,-C2: Camera body with dual lens,


Frame Rate

50Hz: 25fps (1280 × 960, 1280 × 720),60Hz: 30fps (1280 × 960, 1280 × 720),

Image Settings

Rotate mode(first channel), saturation, brightness, contrast, sharpness and gray scale adjustable

Defog

Yes, zone optional

EIS

Support

Highlight Compensation

Support(First channel)

Day / Night mode

Support

Image Overlay

Auto / Timing / Alarm trigger

Max. Resolution

1280 × 960

Third Stream

Only single channel camera supports third stream, which is independent with main stream, up to,50Hz: 25fps (1280 × 960); 60Hz: 30fps (1280 × 960),

ROI Codec

Support 128 × 128 size BMP with 24-bit depth image overlay, zone optional

Network

Network Storage

Up to 4 fixed areas in each stream

Protocols

Model with single lens: Intrusion detection, audio exception detection, defocus detection,All models: motion detection, face detection, dynamic analysis, tampering alarm, network disconnect, IP address conflicts, storage full, storage error,

Security

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour

Simultaneous Live View

ONVIF(PROFILE S, PEOFILE G), ISAPI

Detection

Support Micro SD/SDHC/SDXC slot, up to 128GB,Edge recording, NAS (NFS,SMB/CIFS)

Firmware Version

Reset, flickerless, multi-stream, heartbeat, rotate, password protection, video masking, watermark, anonymous login, IP address filtering

Interface

Alarm

1 3.5mm audio in(Mic in/Line in)/out interface

Video Output

1 RJ45 10M/100M Ethernet interface/ 1 RS232/ 1 RS-485

On-board Storage

1 input, 1 output

Compression Standard

H.264 Type

Baseline Profile / Main Profile / High Profile

Video Compression

H.264/MJPEG4/MJPEG

Audio Compression

G.711/G.722.1/G.726/MP2L2

Video Bit Rate

32 Kbps – 16 Mbps

Audio Bit Rate

64Kbps(G.711) / 16Kbps(G.726) /64Kbps(MP2L2)

General

Power Supply

-30 °C – 60 °C (-22 °F – 140 °F),Humidity 95% or less (non-condensing),

Weight

78×105×32 mm (3.07” × 4.13” × 1.26”)

Power Consumption

12 VDC ± 10% / PoE (802.3af)

Shipping Weight

Max. 8.26 W

Net Weight

2m cable: <570g,8m cable: <680g,
