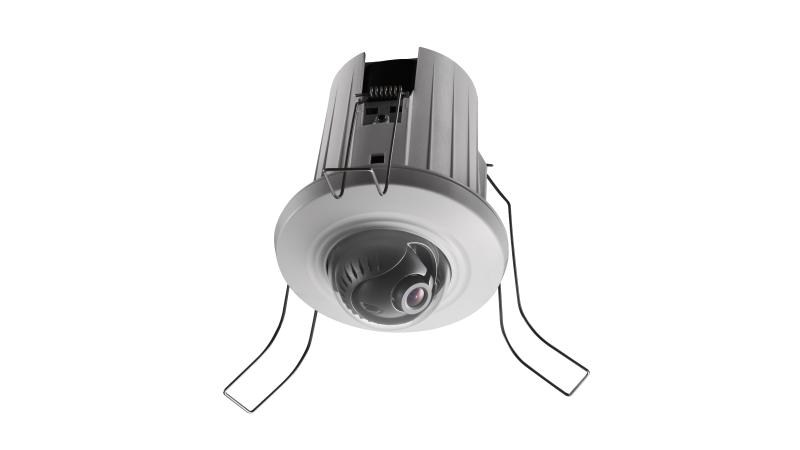

2 MP Fixed Recessed Dome Network Camera

  • High quality imaging with 2 MP resolution
  • Efficient H.264 compression technology
View Less
View more
Sales Inquiry

Available models:

DS-2CD2E20F(2.8mm)
DS-2CD2E20F(-W)
EOL

Specification

  • Network
  • Protocols802.11b: CCK, QPSK, BPSK, 802.11g/n: OFDM
  • Wi-Fi
  • Encryption Mode64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
  • Wi-Fi ProtocolIEEE802.11b, 802.11g, 802.11n
  • Frequency Range2.4 GHz ~ 2.4835 GHz
  • Channel Bandwidth 20/40MHz Support
  • Wireless Range50 meters *The performance varies based on actual environment.
  • General
  • Startup and Operating Conditions-10 °C ~ 40 °C (-14 °F – 104 °F), Humidity 95% or less (non-condensing)
  • Power SupplyDC12V ± 10%, PoE (802.3af Class3)
  • Power Consumption and CurrentMax. 4.7W
  • Camera DimensionΦ93.9×121.6
  • Camera Weight200g
  • Fiber Optical
  • Transfer Rate11b: 11Mbps, 11g: 54Mbps, 11n: up to 150Mbps
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Network
Protocols
802.11b: CCK, QPSK, BPSK, 802.11g/n: OFDM
Wi-Fi
Encryption Mode
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Wi-Fi Protocol
IEEE802.11b, 802.11g, 802.11n
Frequency Range
2.4 GHz ~ 2.4835 GHz
Channel Bandwidth
20/40MHz Support
Wireless Range
50 meters *The performance varies based on actual environment.
General
Startup and Operating Conditions
-10 °C ~ 40 °C (-14 °F – 104 °F), Humidity 95% or less (non-condensing)
Power Supply
DC12V ± 10%, PoE (802.3af Class3)
Power Consumption and Current
Max. 4.7W
Camera Dimension
Φ93.9×121.6
Camera Weight
200g
Fiber Optical
Transfer Rate
11b: 11Mbps, 11g: 54Mbps, 11n: up to 150Mbps
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Network
  • Protocols802.11b: CCK, QPSK, BPSK, 802.11g/n: OFDM
Wi-Fi
  • Encryption Mode64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
  • Wi-Fi ProtocolIEEE802.11b, 802.11g, 802.11n
  • Frequency Range2.4 GHz ~ 2.4835 GHz
  • Channel Bandwidth 20/40MHz Support
  • Wireless Range50 meters *The performance varies based on actual environment.
General
  • Startup and Operating Conditions-10 °C ~ 40 °C (-14 °F – 104 °F), Humidity 95% or less (non-condensing)
  • Power SupplyDC12V ± 10%, PoE (802.3af Class3)
  • Power Consumption and CurrentMax. 4.7W
  • Camera DimensionΦ93.9×121.6
  • Camera Weight200g
Fiber Optical
  • Transfer Rate11b: 11Mbps, 11g: 54Mbps, 11n: up to 150Mbps
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

Technical documents

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V5.4.800_211020
