DS-2CD7A26G0-IZ(H)SY

EOL

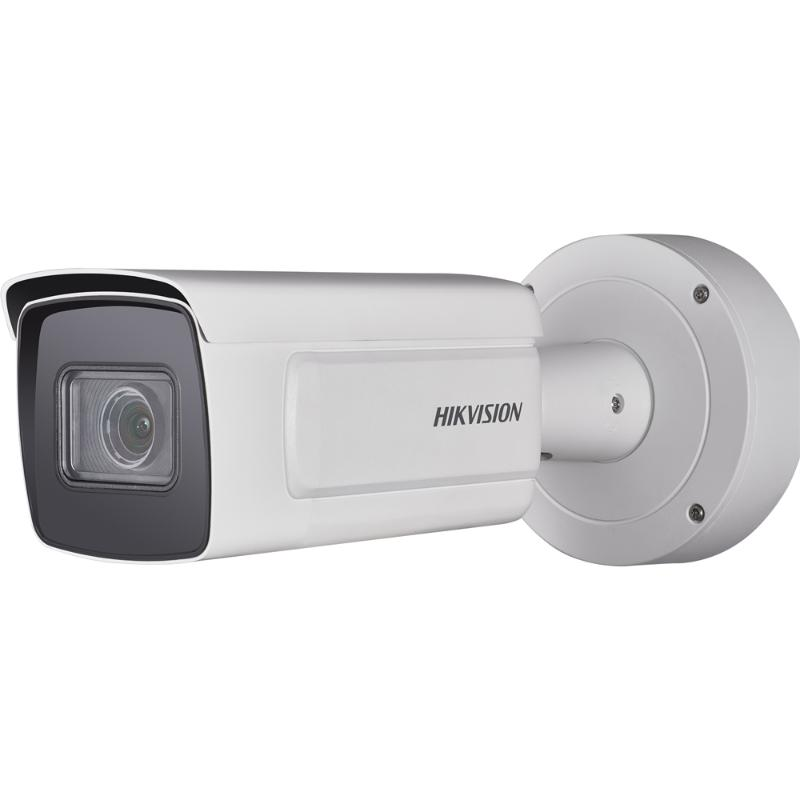

2 MP DeepinView Moto Varifocal Bullet Camera

High quality imaging with 2 MP resolution
Excellent low-light performance via DarkFighter technology
Clear imaging against strong back light thanks to LightFighter technology
Intelligent functions based on deep learning
Efficient H.265+ compression technology to save bandwidth and storage
Advanced streaming technology enables smooth live view and data self-correction in poor network
5 streams and up to 5 custom streams to meet a wide variety of applications
6 behavior analyses, 3 exception detection, and face detection
Water and dust resistant and vandal proof (IP67 and IK10).The anti-corrosion coating prevents the camera from being corroded in a weak acid environment.

View Less

Available models:

DS-2CD7A26G0-IZHSY(2.8-12mm)

Camera
Day & NightIR cut filter Blue glass module to reduce ghost phenomenon
Image Sensor1/1.8″ Progressive Scan CMOS
Shutter Speed1 s to 1/100,000 s
Max. Resolution2560 × 1440
Min. IlluminationColor: 0.0005 Lux @ (F1.2, AGC ON); B/W: 0.0001 Lux @ (F1.2, AGC ON)，0 Lux with IR

Lens
Aperture2.8 to 12 mm: F1.2 to F2.5 8 to 32 mm: F1.7 to F1.73
Iris TypeP-Iris
Focal Length & FOV2.8 to 12 mm, horizontal FOV: 114.5° to 41.8°, vertical FOV: 59.3° to 23.6°, diagonal FOV: 141.1° to 48° 8 to 32 mm, horizontal FOV: 42.5° to 15.1°, vertical FOV: 23.3° to 8.64°, diagonal FOV: 49.6° to 17.3°
FocusAuto, semi-auto, manual

Illuminator
IR Wavelength850 nm
Smart Supplement LightYes
Supplement Light Range2.8 to 12 mm: 50 m 8 to 32 mm: 100 m
Supplement Light TypeIR

Video
Bit Rate ControlCBR/VBR
Fifth Stream50 Hz: 25 fps (704 × 480, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
Fourth Stream50 Hz: 25 fps (704 × 480, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeBaseline Profile/Main Profile/High Profile
Region of Interest (ROI)4 fixed regions for main stream, sub-stream, third stream, fourth stream and fifth stream
Scalable Video Coding (SVC)H.264 and H.265 encoding
Sub-Stream50 Hz: 25 fps (704 × 480, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
Target CroppingYes
Third Stream50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Video Compression H.265+/H.265/H.264+/H.264/MJPEG
Main Stream50 Hz: 50 fps (2560 × 1440, 1920 × 1080, 1280× 720) 60 Hz: 60 fps (2560 × 1440, 1920 × 1080, 1280× 720)
Video Bit Rate32 Kbps to 8 Mbps

Audio
Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC) /8 to 320 Kbps (MP3)
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/AAC/MP3
Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz
Audio TypeMono sound
Environment Noise FilteringYes

Network
APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
ClientiVMS-4200, Hik-Connect
Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2
Simultaneous Live ViewUp to 20 channels
User/HostUp to 32 users 3 user levels: administrator, operator, and user
Web BrowserPlug-in required live view: IE9+, Chrome 41.0 to 44, Firefox 30.0 to 51, Safari 8.0 to 11 Plug-in free live view: Chrome 45.0+, Firefox 52.0+ Not recommended: Safari 11+, Edge

Day/Night SwitchDay, Night, Auto, Schedule, Alarm Trigger
DefogYes
Image EnhancementBLC, HLC, Defog, Digital DNR
Image Parameters SwitchYes
Image SettingsSaturation, brightness, contrast, sharpness, white balance, and AGC adjustable by client software or web browser
Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Privacy Mask8 programmable polygon privacy masks, mask color or mosaic configurable
Target CroppingYes

Interface
Alarm 2 input, 2 outputs (max. 24 VDC, 1 A)
AudioWith -Y:1 input (line in), 1 output (line out), 3.5 mm connector
Ethernet Interface1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
HeaterYes
On-Board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB
Power OutputWith -Y: 12 VDC, max. 100 mA
RS-485With -Y: 1 RS-485(half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset KeyYes
Video Output1 Vp-p Composite Output(75Ω/CVBS)(Only for Debug)

Event
Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection, audio exception dettection, scene change detection, defocus detection
Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, abnormal reboot, HDD full, HDD error), video quality diagnosis, vibration detection

Deep Learning Function
Face Capture1. Detects up to 40 faces simultaneously 2. Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30° 3. Uploads face with background and closed-up face pictures
Face ComparisonUp to 10 face libraries. 150,000 faces for each library. 150,000 faces in total. Supports face library encryption
Multi-target-type DetectionSupports simultaneous detection and capture of human body, face and vehicle;Gets 7 face features, 13 human body features and 2 vehicle features
Perimeter ProtectionLine crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)

General
Camera DimensionWithout -Y: Ø144 × 347 mm (Ø5.7″ × 13.7″) With -Y: Ø140 × 351 mm (Ø5.5″ × 13.8″)
Camera Weight1950 g (4.2 lb.)
General FunctionHeartbeat, mirror, passwor protection, watermark, privacy mask, IP address filter, one-key reset, five streams
Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Package Dimension405 × 190 × 180 mm (15.9″ × 7.5″ × 7.1″)
Power Consumption and Current12 VDC ± 20%, three-core terminal block, 1.19 A, max. 14.28 W PoE: 802.3at, Type 2, Class 4, 42.5 V to 57 V), 0.396 A to 0. 295A, max. 16.8 W
Startup and Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
With Package Weight3070 g (6.7 lb.)

Approval
Anti-Corrosion ProtectionWith -Y: NEMA 4X(NEMA 250-2018)
Automotive and RailwayEN50121-4
EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); （ICES-003: Issue 7）; KC (KN 32: 2015, KN 35: 2015)
Electrical Safety ProtectionIK10 (IEC 62262:2002), IP67 (IEC 60529-2013)
EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
OtherPVC FREE
SafetyUL(UL 62368-1); CB(IEC 62368-1:2014+A11); CE-LVD（EN 62368-1:2014/A11:2017）; BIS（IS 13252(Part 1):2010/ IEC 60950-1 : 2005）; LOA (IEC/EN 60950-1)

Specification

Camera

Day & Night

IR cut filter Blue glass module to reduce ghost phenomenon

Image Sensor

1/1.8″ Progressive Scan CMOS

Shutter Speed

1 s to 1/100,000 s

Max. Resolution

2560 × 1440

Min. Illumination

Color: 0.0005 Lux @ (F1.2, AGC ON); B/W: 0.0001 Lux @ (F1.2, AGC ON)，0 Lux with IR

Lens

Aperture

2.8 to 12 mm: F1.2 to F2.5 8 to 32 mm: F1.7 to F1.73

Iris Type

P-Iris

Focal Length & FOV

2.8 to 12 mm, horizontal FOV: 114.5° to 41.8°, vertical FOV: 59.3° to 23.6°, diagonal FOV: 141.1° to 48° 8 to 32 mm, horizontal FOV: 42.5° to 15.1°, vertical FOV: 23.3° to 8.64°, diagonal FOV: 49.6° to 17.3°

Focus

Auto, semi-auto, manual

Illuminator

IR Wavelength

850 nm

Smart Supplement Light

Yes

Supplement Light Range

2.8 to 12 mm: 50 m 8 to 32 mm: 100 m

Supplement Light Type

Video

Bit Rate Control

CBR/VBR

Fifth Stream

50 Hz: 25 fps (704 × 480, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)

Fourth Stream

50 Hz: 25 fps (704 × 480, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)

H.264 Type

Baseline Profile/Main Profile/High Profile

H.265 Type

Baseline Profile/Main Profile/High Profile

Region of Interest (ROI)

4 fixed regions for main stream, sub-stream, third stream, fourth stream and fifth stream

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Sub-Stream

50 Hz: 25 fps (704 × 480, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)

Target Cropping

Yes

Third Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

Video Compression

H.265+/H.265/H.264+/H.264/MJPEG

Main Stream

50 Hz: 50 fps (2560 × 1440, 1920 × 1080, 1280× 720) 60 Hz: 60 fps (2560 × 1440, 1920 × 1080, 1280× 720)

Video Bit Rate

32 Kbps to 8 Mbps

Audio

Audio Bit Rate

64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC) /8 to 320 Kbps (MP3)

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM/AAC/MP3

Audio Sampling Rate

8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz

Audio Type

Mono sound

Environment Noise Filtering

Yes

Network

API

Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP

Client

iVMS-4200, Hik-Connect

Network Storage

NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS

Security

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2

Simultaneous Live View

Up to 20 channels

User/Host

Up to 32 users 3 user levels: administrator, operator, and user

Web Browser

Plug-in required live view: IE9+, Chrome 41.0 to 44, Firefox 30.0 to 51, Safari 8.0 to 11 Plug-in free live view: Chrome 45.0+, Firefox 52.0+ Not recommended: Safari 11+, Edge


Day/Night Switch

Day, Night, Auto, Schedule, Alarm Trigger

Defog

Yes

Image Enhancement

BLC, HLC, Defog, Digital DNR

Image Parameters Switch

Yes

Image Settings

Saturation, brightness, contrast, sharpness, white balance, and AGC adjustable by client software or web browser

Picture Overlay

LOGO picture can be overlaid on video with 128 × 128 24bit bmp format

Privacy Mask

8 programmable polygon privacy masks, mask color or mosaic configurable

Target Cropping

Yes

Interface

Alarm

2 input, 2 outputs (max. 24 VDC, 1 A)

Audio

With -Y:1 input (line in), 1 output (line out), 3.5 mm connector

Ethernet Interface

1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port

Heater

Yes

On-Board Storage

Built-in micro SD/SDHC/SDXC slot, up to 256 GB

Power Output

With -Y: 12 VDC, max. 100 mA

RS-485

With -Y: 1 RS-485(half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

Reset Key

Yes

Video Output

1 Vp-p Composite Output(75Ω/CVBS)(Only for Debug)

Event

Smart Event

Line crossing detection, intrusion detection, region entrance detection, region exiting detection, audio exception dettection, scene change detection, defocus detection

Basic Event

Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, abnormal reboot, HDD full, HDD error), video quality diagnosis, vibration detection

Deep Learning Function

Face Capture

1. Detects up to 40 faces simultaneously 2. Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30° 3. Uploads face with background and closed-up face pictures

Face Comparison

Up to 10 face libraries. 150,000 faces for each library. 150,000 faces in total. Supports face library encryption

Multi-target-type Detection

Supports simultaneous detection and capture of human body, face and vehicle;Gets 7 face features, 13 human body features and 2 vehicle features

Perimeter Protection

Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)

General

Camera Dimension

Without -Y: Ø144 × 347 mm (Ø5.7″ × 13.7″) With -Y: Ø140 × 351 mm (Ø5.5″ × 13.8″)

Camera Weight

1950 g (4.2 lb.)

General Function

Heartbeat, mirror, passwor protection, watermark, privacy mask, IP address filter, one-key reset, five streams

Language

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Package Dimension

405 × 190 × 180 mm (15.9″ × 7.5″ × 7.1″)

Power Consumption and Current

12 VDC ± 20%, three-core terminal block, 1.19 A, max. 14.28 W PoE: 802.3at, Type 2, Class 4, 42.5 V to 57 V), 0.396 A to 0. 295A, max. 16.8 W

Startup and Operating Conditions

-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

With Package Weight

3070 g (6.7 lb.)

Approval

Anti-Corrosion Protection

With -Y: NEMA 4X(NEMA 250-2018)

Automotive and Railway

EN50121-4

EMC

FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); （ICES-003: Issue 7）; KC (KN 32: 2015, KN 35: 2015)

Electrical Safety Protection

IK10 (IEC 62262:2002), IP67 (IEC 60529-2013)

Environment

CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Other

PVC FREE

Safety

UL(UL 62368-1); CB(IEC 62368-1:2014+A11); CE-LVD（EN 62368-1:2014/A11:2017）; BIS（IS 13252(Part 1):2010/ IEC 60950-1 : 2005）; LOA (IEC/EN 60950-1)

Camera

Day & NightIR cut filter Blue glass module to reduce ghost phenomenon
Image Sensor1/1.8″ Progressive Scan CMOS
Shutter Speed1 s to 1/100,000 s
Max. Resolution2560 × 1440
Min. IlluminationColor: 0.0005 Lux @ (F1.2, AGC ON); B/W: 0.0001 Lux @ (F1.2, AGC ON)，0 Lux with IR

Lens

Aperture2.8 to 12 mm: F1.2 to F2.5 8 to 32 mm: F1.7 to F1.73
Iris TypeP-Iris
Focal Length & FOV2.8 to 12 mm, horizontal FOV: 114.5° to 41.8°, vertical FOV: 59.3° to 23.6°, diagonal FOV: 141.1° to 48° 8 to 32 mm, horizontal FOV: 42.5° to 15.1°, vertical FOV: 23.3° to 8.64°, diagonal FOV: 49.6° to 17.3°
FocusAuto, semi-auto, manual

Illuminator

IR Wavelength850 nm
Smart Supplement LightYes
Supplement Light Range2.8 to 12 mm: 50 m 8 to 32 mm: 100 m
Supplement Light TypeIR

Video

Bit Rate ControlCBR/VBR
Fifth Stream50 Hz: 25 fps (704 × 480, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
Fourth Stream50 Hz: 25 fps (704 × 480, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeBaseline Profile/Main Profile/High Profile
Region of Interest (ROI)4 fixed regions for main stream, sub-stream, third stream, fourth stream and fifth stream
Scalable Video Coding (SVC)H.264 and H.265 encoding
Sub-Stream50 Hz: 25 fps (704 × 480, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
Target CroppingYes
Third Stream50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Video Compression H.265+/H.265/H.264+/H.264/MJPEG
Main Stream50 Hz: 50 fps (2560 × 1440, 1920 × 1080, 1280× 720) 60 Hz: 60 fps (2560 × 1440, 1920 × 1080, 1280× 720)
Video Bit Rate32 Kbps to 8 Mbps

Audio

Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC) /8 to 320 Kbps (MP3)
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/AAC/MP3
Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz
Audio TypeMono sound
Environment Noise FilteringYes

Network

APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
ClientiVMS-4200, Hik-Connect
Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2
Simultaneous Live ViewUp to 20 channels
User/HostUp to 32 users 3 user levels: administrator, operator, and user
Web BrowserPlug-in required live view: IE9+, Chrome 41.0 to 44, Firefox 30.0 to 51, Safari 8.0 to 11 Plug-in free live view: Chrome 45.0+, Firefox 52.0+ Not recommended: Safari 11+, Edge


Day/Night SwitchDay, Night, Auto, Schedule, Alarm Trigger
DefogYes
Image EnhancementBLC, HLC, Defog, Digital DNR
Image Parameters SwitchYes
Image SettingsSaturation, brightness, contrast, sharpness, white balance, and AGC adjustable by client software or web browser
Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Privacy Mask8 programmable polygon privacy masks, mask color or mosaic configurable
Target CroppingYes

Interface

Alarm 2 input, 2 outputs (max. 24 VDC, 1 A)
AudioWith -Y:1 input (line in), 1 output (line out), 3.5 mm connector
Ethernet Interface1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
HeaterYes
On-Board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB
Power OutputWith -Y: 12 VDC, max. 100 mA
RS-485With -Y: 1 RS-485(half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset KeyYes
Video Output1 Vp-p Composite Output(75Ω/CVBS)(Only for Debug)

Event

Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection, audio exception dettection, scene change detection, defocus detection
Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, abnormal reboot, HDD full, HDD error), video quality diagnosis, vibration detection

Deep Learning Function

Face Capture1. Detects up to 40 faces simultaneously 2. Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30° 3. Uploads face with background and closed-up face pictures
Face ComparisonUp to 10 face libraries. 150,000 faces for each library. 150,000 faces in total. Supports face library encryption
Multi-target-type DetectionSupports simultaneous detection and capture of human body, face and vehicle;Gets 7 face features, 13 human body features and 2 vehicle features
Perimeter ProtectionLine crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)

General

Camera DimensionWithout -Y: Ø144 × 347 mm (Ø5.7″ × 13.7″) With -Y: Ø140 × 351 mm (Ø5.5″ × 13.8″)
Camera Weight1950 g (4.2 lb.)
General FunctionHeartbeat, mirror, passwor protection, watermark, privacy mask, IP address filter, one-key reset, five streams
Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Package Dimension405 × 190 × 180 mm (15.9″ × 7.5″ × 7.1″)
Power Consumption and Current12 VDC ± 20%, three-core terminal block, 1.19 A, max. 14.28 W PoE: 802.3at, Type 2, Class 4, 42.5 V to 57 V), 0.396 A to 0. 295A, max. 16.8 W
Startup and Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
With Package Weight3070 g (6.7 lb.)

Approval

Anti-Corrosion ProtectionWith -Y: NEMA 4X(NEMA 250-2018)
Automotive and RailwayEN50121-4
EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); （ICES-003: Issue 7）; KC (KN 32: 2015, KN 35: 2015)
Electrical Safety ProtectionIK10 (IEC 62262:2002), IP67 (IEC 60529-2013)
EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
OtherPVC FREE
SafetyUL(UL 62368-1); CB(IEC 62368-1:2014+A11); CE-LVD（EN 62368-1:2014/A11:2017）; BIS（IS 13252(Part 1):2010/ IEC 60950-1 : 2005）; LOA (IEC/EN 60950-1)
