NS-0326P-225

    EOL

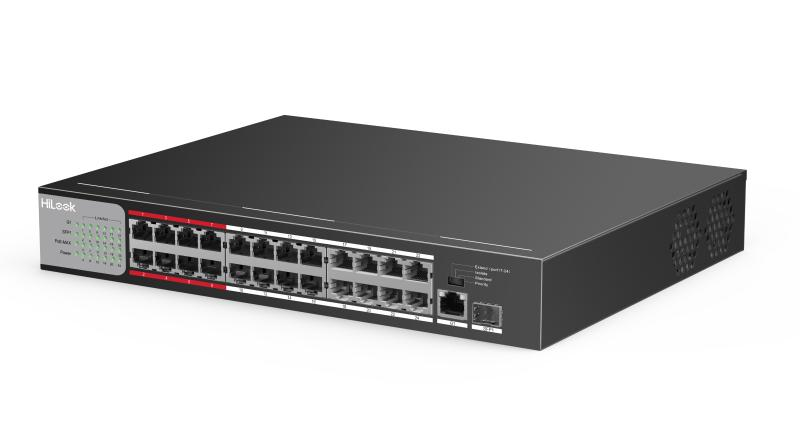

    24 Port Fast Ethernet Unmanaged POE Switch

    • Unmanaged switch with 24 x 100 Mbps PoE ports, 1 x 1000 Mbps RJ45 port, and 1 x 1000 Mbps SFP port
    • All ports support 6 kV lighting protection;
    • 225 W PoE power budget;
    • Maximum transmission distance is 250 meters for port 17 to 24 in "extend" mode;
    • MAC address auto learning and auto aging.
    View Less
    View more

    Available models:

    NS-0326P-225

    Specification

    • Physical appearance
    • Appearance0.6 mm sheet of galvanized metal without electric fan
    • Weight5.39 kg
    • Dimension294 mm × 215 mm × 44 mm
    • Mounting typeRack mounting
    • Power supply
    • Power inputAC: 100-240 V ~ 50/60 Hz
    • Reverse connection protection Supported
    • PoE output power225 W
    • Power consumption< 250 W
    • Other parameters
    • LED indicatorLink/Act LED indicators, PoE-MAX LED indicator, SFP1 LED indicator, G1 LED indicator, Power LED indicator
    • Port
    • Priority queue8
    • Port amount26
    • Port type24*RJ45, 10/100 Base-T(X) (Data/Power) , 1*10/100/1000Base-T port(Data) , 1*1000Base-X SFP port
    • StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af/at
    • Flow controlBack-pressure flow control in IEEE 802.3x full duplex
    • MAC address table4 K
    • Switching capacity8.8 Gbps
    • Forwarding methodStore-and-forward
    • Packet forwarding rate6.55 Mpps
    • Environment
    • Operating temperature(0 - 40) °C
    • Storage temperature(-40 - 70) °C
    • Operating humidity(10 – 90) % RH, non-condensing
    • Storage humidity(5 – 90) % RH, non-condensing
    *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

    Specification

    Physical appearance
    Appearance
    0.6 mm sheet of galvanized metal without electric fan
    Weight
    5.39 kg
    Dimension
    294 mm × 215 mm × 44 mm
    Mounting type
    Rack mounting
    Power supply
    Power input
    AC: 100-240 V ~ 50/60 Hz
    Reverse connection protection
    Supported
    PoE output power
    225 W
    Power consumption
    < 250 W
    Other parameters
    LED indicator
    Link/Act LED indicators, PoE-MAX LED indicator, SFP1 LED indicator, G1 LED indicator, Power LED indicator
    Port
    Priority queue
    8
    Port amount
    26
    Port type
    24*RJ45, 10/100 Base-T(X) (Data/Power) , 1*10/100/1000Base-T port(Data) , 1*1000Base-X SFP port
    Standard
    IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af/at
    Flow control
    Back-pressure flow control in IEEE 802.3x full duplex
    MAC address table
    4 K
    Switching capacity
    8.8 Gbps
    Forwarding method
    Store-and-forward
    Packet forwarding rate
    6.55 Mpps
    Environment
    Operating temperature
    (0 - 40) °C
    Storage temperature
    (-40 - 70) °C
    Operating humidity
    (10 – 90) % RH, non-condensing
    Storage humidity
    (5 – 90) % RH, non-condensing
    For better user experience, we highly recommend you to update your device to the latest firmware asap.
    Specification
    Physical appearance
    • Appearance0.6 mm sheet of galvanized metal without electric fan
    • Weight5.39 kg
    • Dimension294 mm × 215 mm × 44 mm
    • Mounting typeRack mounting
    Power supply
    • Power inputAC: 100-240 V ~ 50/60 Hz
    • Reverse connection protection Supported
    • PoE output power225 W
    • Power consumption< 250 W
    Other parameters
    • LED indicatorLink/Act LED indicators, PoE-MAX LED indicator, SFP1 LED indicator, G1 LED indicator, Power LED indicator
    Port
    • Priority queue8
    • Port amount26
    • Port type24*RJ45, 10/100 Base-T(X) (Data/Power) , 1*10/100/1000Base-T port(Data) , 1*1000Base-X SFP port
    • StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af/at
    • Flow controlBack-pressure flow control in IEEE 802.3x full duplex
    • MAC address table4 K
    • Switching capacity8.8 Gbps
    • Forwarding methodStore-and-forward
    • Packet forwarding rate6.55 Mpps
    Environment
    • Operating temperature(0 - 40) °C
    • Storage temperature(-40 - 70) °C
    • Operating humidity(10 – 90) % RH, non-condensing
    • Storage humidity(5 – 90) % RH, non-condensing
    *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
