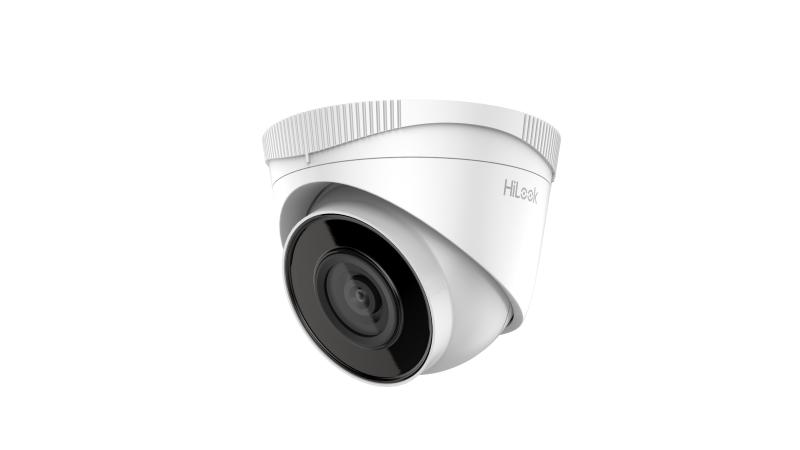

2 MP Fixed Turret Network Camera

High quality imaging with 2 MP resolution
Efficient H.265+ compression technology to save bandwidth and storage
Clear imaging against strong back light due to DWDR technology
Water and dust resistant (IP67)
-U: model with built-in microphone, enhances safety with both video and audio

View Less

Available models:

IPC-T220H(2.8mm)(HiLookSTD)

IPC-T220H-F(2.8mm)(HiLookSTD)

IPC-T220H

EOL

Specification
Resources
Accessories

Camera
Image Sensor1/2.8" progressive scan CMOS
Min. IlluminationColor: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON)
Shutter Speed1/3 s to 1/100, 000 s
Slow ShutterYes
Day &NightIR cut filter
Wide Dynamic RangeDigital WDR
Angle AdjustmentPan: 0° to 360°, tilt: 0° to 75°, rotation: 0° to 360°
DNR3D DNR

Lens
Lens2.8 mm, 4 mm, 6 mm
Auto-IrisNo
ApertureF2.0
FocusNo
FOV2.8 mm, horizontal FOV 114.5°, vertical FOV 62°, diagonal FOV 135.5°,4 mm, horizontal FOV 86°, vertical FOV 46°, diagonal FOV 102°,6 mm, horizontal FOV 54°, vertical FOV 30°, diagonal FOV 62°
Lens MountM12

Illuminator
IR RangeUp to 30 m
Wavelength850 nm

Network
Alarm TriggerMotion detection, video tampering alarm, illegal login
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
APIONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live ViewUp to 6 channels
User/HostUp to 32 users,3 levels: Administrator, Operator and User
ClientiVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
Web BrowserIE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+

Video
Max. Resolution1920 × 1080
Video CompressionMain stream: H.265/H.264,Sub stream: H.265/H.264/MJPEG
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
Video Bit Rate32 Kbps to 8 Mbps

Smart Feature-Set
Region of Interest1 fixed region for main stream and sub-stream

Image EnhancementBLC, 3D DNR
Image SettingSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Day/Night SwitchAuto, scheduled
Main Stream Max. Frame Rate50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-stream Max. Frame Rate50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Interface
Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port

General
Firmware Version5.5.2
General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
Startup and Operating Conditions-30 °C to 50 °C (-22 °F to 122 °F), humidity: 95% or less (non-condensing)
Power Supply12 VDC ± 25%, 5.5 mm coaxial power plug,PoE (802.3af, class 3)
MaterialMetal & Plastic
DimensionsCamera: Ø 110 mm × 93.2 mm (Ø 4.3" × 3.7"),With package: 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
WeightCamera: approx. 360 g (0.8 lb.),With package: approx. 610 g (1.3 lb.)
Power Consumption and Current12 VDC, 0.4 A, max: 5 W,PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, Max: 6.5 W
Interface ProtectionIP67

Compression Standard
H.264+Main stream supports
H.265+Main stream supports

Camera

Image Sensor

1/2.8" progressive scan CMOS

Min. Illumination

Color: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON)

Shutter Speed

1/3 s to 1/100, 000 s

Slow Shutter

Yes

Day &Night

IR cut filter

Wide Dynamic Range

Digital WDR

Angle Adjustment

Pan: 0° to 360°, tilt: 0° to 75°, rotation: 0° to 360°

DNR

3D DNR

Lens

2.8 mm, 4 mm, 6 mm

Auto-Iris

Aperture

F2.0

Focus

FOV

2.8 mm, horizontal FOV 114.5°, vertical FOV 62°, diagonal FOV 135.5°,4 mm, horizontal FOV 86°, vertical FOV 46°, diagonal FOV 102°,6 mm, horizontal FOV 54°, vertical FOV 30°, diagonal FOV 62°

Lens Mount

M12

Illuminator

IR Range

Up to 30 m

Wavelength

850 nm

Network

Alarm Trigger

Motion detection, video tampering alarm, illegal login

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour

API

ONVIF (PROFILE S, PROFILE G), ISAPI

Simultaneous Live View

Up to 6 channels

User/Host

Up to 32 users,3 levels: Administrator, Operator and User

Client

iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500

Web Browser

IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+

Video

Max. Resolution

1920 × 1080

Video Compression

Main stream: H.265/H.264,Sub stream: H.265/H.264/MJPEG

H.264 Type

Baseline Profile/Main Profile/High Profile

H.265 Type

Main Profile

Video Bit Rate

32 Kbps to 8 Mbps

Smart Feature-Set

Region of Interest

1 fixed region for main stream and sub-stream


Image Enhancement

BLC, 3D DNR

Image Setting

Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser

Day/Night Switch

Auto, scheduled

Main Stream Max. Frame Rate

50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)

Sub-stream Max. Frame Rate

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Interface

Communication Interface

1 RJ45 10M/100M self-adaptive Ethernet port

General

Firmware Version

5.5.2

General Function

Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark

Startup and Operating Conditions

-30 °C to 50 °C (-22 °F to 122 °F), humidity: 95% or less (non-condensing)

Power Supply

12 VDC ± 25%, 5.5 mm coaxial power plug,PoE (802.3af, class 3)

Material

Metal & Plastic

Dimensions

Camera: Ø 110 mm × 93.2 mm (Ø 4.3" × 3.7"),With package: 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")

Weight

Camera: approx. 360 g (0.8 lb.),With package: approx. 610 g (1.3 lb.)

Power Consumption and Current

12 VDC, 0.4 A, max: 5 W,PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, Max: 6.5 W

Interface Protection

IP67

Compression Standard

H.264+

Main stream supports

H.265+
