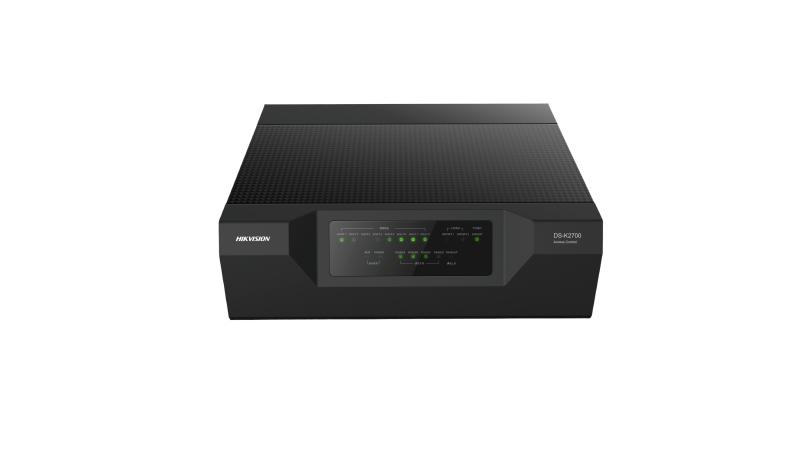

Ultral Series Structured Access Master Controller

Master Access Controller
200,000 cards and 600,000 events storage
Up to 64 distributed access controllers can be connected
Up to 128 doors can be controlled
Alarm input/output and alarm event upload
RS-485 and TCP/IP for communication
European AC power cable included (please mark for other standards when you order)

View Less

Data Sheet

Available models:

DS-K2700

EOL

Specification
Resources
Accessories

Data Sheet

System Parameters
Door AmountMax. 64 Distributed Access Controller, Max. 128 Doors
Capacity for Card/Offline EventsCard: 200,000 Event: 600,000
Holiday Schedule1024
Holiday Group255
Week Plan255
Template255
Fire-Fighting Linkage1 Interface for Fire-Fighting Detection
Special FunctionAnti-passing back, Multiple Authentication, Multi-Door Interlocking
Response Time≤ 1s

Device Interface
Uplink CommunicationTCP/IP Communication (Dual Network Interfaces) RS-485 Communication (RS-485 Interfaces)
Downlink CommunicationRS-485 Communication (4 RS-485 Loops) TCP/IP Communication (1 10M/100M Network Interfaces)
Alarm Iutput16
Alarm Output8
USB Interface1 USB Interface for the Device Upgrade and Date Importing/Exporting

General
Working Temperature-20°C to +70°C (-4°F to 158°F)
StructureWall Mounting with 19-in 3U Standard Cabinet
Ingress Protection LevelIndoor: IP 54
BatterySupported
Zone Disconnected AlarmSupported
Zone Short Circuited AlarmSupported
Tamper-Proof AlarmSupported

System Parameters

Door Amount

Max. 64 Distributed Access Controller, Max. 128 Doors

Capacity for Card/Offline Events

Card: 200,000 Event: 600,000

Holiday Schedule

1024

Holiday Group

255

Week Plan

255

Template

255

Fire-Fighting Linkage

1 Interface for Fire-Fighting Detection

Special Function

Anti-passing back, Multiple Authentication, Multi-Door Interlocking

Response Time

≤ 1s

Device Interface

Uplink Communication

TCP/IP Communication (Dual Network Interfaces) RS-485 Communication (RS-485 Interfaces)

Downlink Communication

RS-485 Communication (4 RS-485 Loops) TCP/IP Communication (1 10M/100M Network Interfaces)

Alarm Iutput

Alarm Output

USB Interface

1 USB Interface for the Device Upgrade and Date Importing/Exporting

General

Working Temperature

-20°C to +70°C (-4°F to 158°F)

Structure

Wall Mounting with 19-in 3U Standard Cabinet

Ingress Protection Level

Indoor: IP 54

Battery

Supported

Zone Disconnected Alarm

Supported

Zone Short Circuited Alarm

Supported

Tamper-Proof Alarm

Supported
