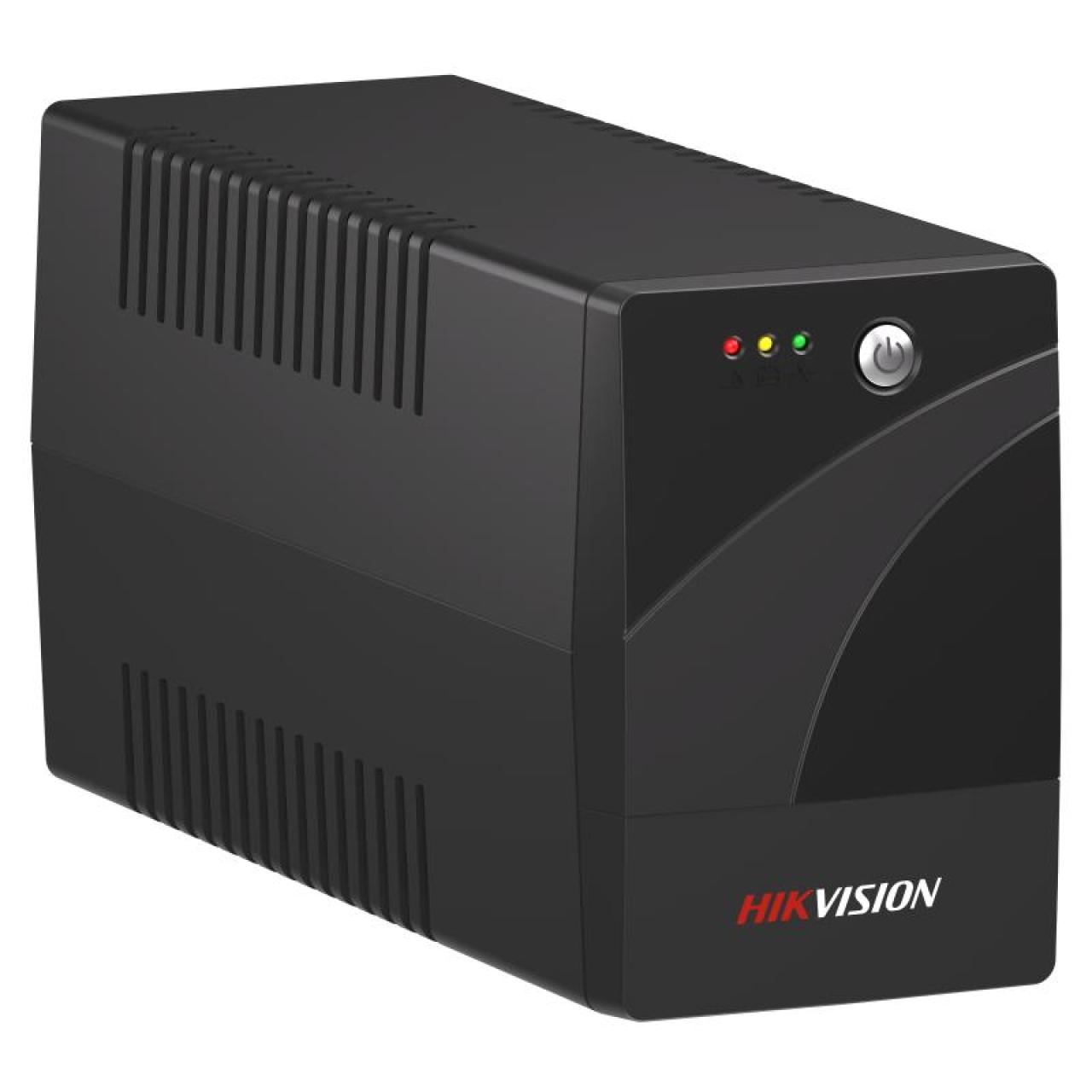

600VA/360W,Backup UPS with built-in battery

  • Built-in AVR
  • Auto restart while AC is recovering
  • Super fast charging
  • Wide input voltage range
  • Overload protection
  • Short circuit protection
  • Surge protection
View Less
View more
Data Sheet
Verkoopaanvraag

Available models:

DS-UPS600-R
View more View Less
DS-UPS600-R
Data Sheet

Specification

  • Power
  • UPS Capacity 600 VA / 360 W
  • Input
  • Input Voltage Range 162VAC to 290 VAC
  • Input Frequency 50/60 Hz self-adaptive
  • Plug Type Schuko
  • Output
  • Output Voltage Range 230VAC ± 10%
  • Output Frequency 50/60 Hz ± 0.5 Hz self-adaptive
  • Transfer Time ≤ 10 ms
  • Waveform Simulated Sinewave
  • Outlet Type Schuko
  • Outlet Number 2
  • Batterij
  • Batterij Type 12 V/7 Ah x 1, lead-acid battery
  • Recharge Time 4-6 hours recover to 90% capacity
  • Typical Backup Time Run time at 100w: 15-20 min
  • Interface
  • Communicate Ports No
  • Protection
  • Full Protection Surge protection, Overload protection, Discharge protection, Short circuit protection
  • Indicator
  • Display LED indicator Working Mode (AC Mode): Solid green Charging Mode (DC Mode): Solid red Overloading Mode: Flashing yellow
  • Alarm Battery mode: Sounding every 10 seconds. Low battery : Sounding every second. Over load : Sounding every 0.5 seconds. Fault: Continuously sounding.
  • General
  • Operating Temperature 0 °C to 40 °C (32 °F to 104 °F）
  • Operating Humidity 0% to 90% (non-condensing)
  • Dimension 276.1 mm × 101 mm × 142 mm (10.9" × 3.98" × 5.59")
  • Approx. 4.25 kg (9.37 lb)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Power
UPS Capacity
600 VA / 360 W
Input
Input Voltage Range
162VAC to 290 VAC ;140 VAC to 300 VAC
Input Frequency
50/60 Hz self-adaptive
Plug Type
Schuko
Output
Output Voltage Range
210 VAC to 235 VAC
Output Frequency
50/60 Hz ± 0.5 Hz self-adaptive
Transfer Time
≤ 10 ms
Waveform
Simulated Sinewave
Outlet Type
Schuko
Outlet Number
2
Batterij
Batterij Type
12 V/7 Ah x 1, lead-acid battery
Recharge Time
4-6 hours recover to 90% capacity
Typical Backup Time
Run time at 100w: 15-20 min
Interface
Communicate Ports
No
Protection
Full Protection
Surge protection, Overload protection, Discharge protection, Short circuit protection
Indicator
Display
LED indicator Working Mode (AC Mode): Solid green Charging Mode (DC Mode): Solid red Overloading Mode: Flashing yellow
Alarm
Battery mode: Sounding every 10 seconds. Low battery : Sounding every second. Over load : Sounding every 0.5 seconds. Fault: Continuously sounding.
General
Operating Temperature
0 °C to 40 °C (32 °F to 104 °F）
Operating Humidity
0% to 90% (non-condensing)
Dimension
276.1 mm × 101 mm × 142 mm (10.9" × 3.98" × 5.59")
Approx. 4.2 kg (9.37 lb)
