EOL

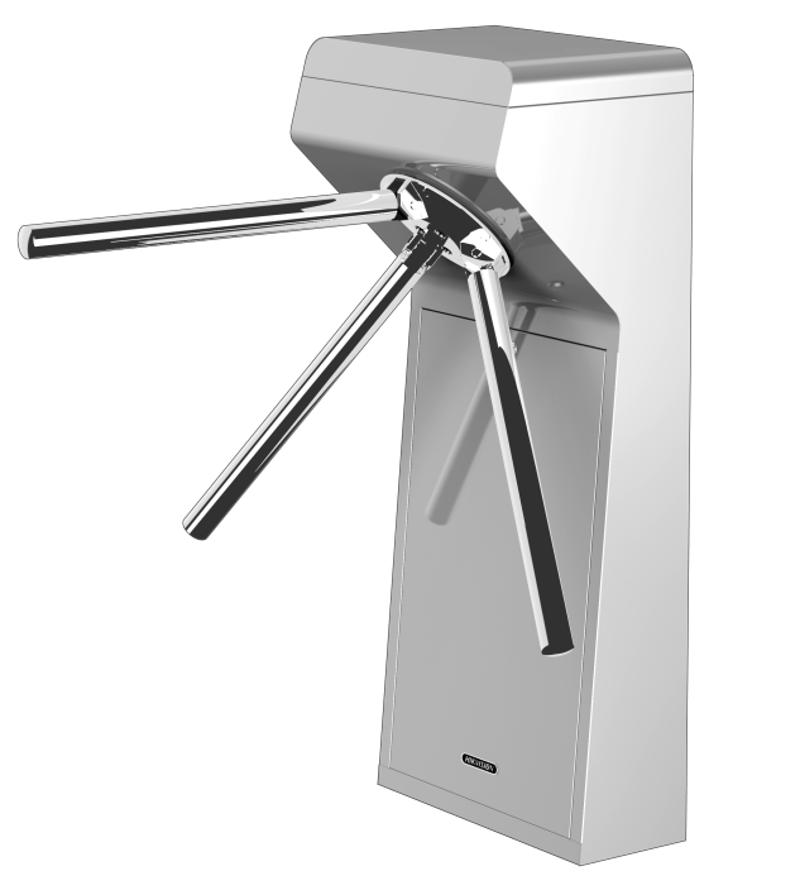

Value Tripod Turnstile

  • SUS304 stainless steel material strong and durable.
  • Easy to integrate with three party's access controller.
  • built-in access board DS-K2802 and card readers is optional.
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-K3G201-R/Pa-Dm55
DS-K3G201-R/M-Dm55
DS-K3G201-R/Dm55
DS-K3G201X
EOL
Data Sheet

Specification

  • System
  • MCBF＞1 million times
  • General
  • ThroughputMore than 30 persons per minute The actual throughput is affected by the person passing rate and passing method.
  • Lane width550mm
  • MaterialSUS304 stainless steel 1.2 mm, except side door( 0.8mm )
  • Power supplyDS-K3G201-R/Pa-Dm55: 12 VDC, 3 A DS-K3G201-R/M-Dm55: 110~230VAC DS-K3G201-R/Dm55: 110~230VAC
  • Working humidity0% to 92% (No condensing)
  • DimensionsWithout package: 420 mm × 300 mm × 980 mm (16.5" × 11.8" × 38.6") With package: 505 mm × 445 mm × 1055 mm (19.88" × 17.52" × 41.54")
  • Working temperature -10 °C to 50 °C (14 °F to 122 °F)
  • Application environmentIndoor
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

System
MCBF
＞1 million times
General
Throughput
More than 30 persons per minute The actual throughput is affected by the person passing rate and passing method.
Lane width
550mm
Material
SUS304 stainless steel 1.2 mm, except side door( 0.8mm )
Power supply
DS-K3G201-R/Pa-Dm55: 12 VDC, 3 A DS-K3G201-R/M-Dm55: 110~230VAC DS-K3G201-R/Dm55: 110~230VAC
Working humidity
0% to 92% (No condensing)
Dimensions
Without package: 420 mm × 300 mm × 980 mm (16.5" × 11.8" × 38.6") With package: 505 mm × 445 mm × 1055 mm (19.88" × 17.52" × 41.54")
Working temperature
-10 °C to 50 °C (14 °F to 122 °F)
Application environment
Indoor
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
System
  • MCBF＞1 million times
General
  • ThroughputMore than 30 persons per minute The actual throughput is affected by the person passing rate and passing method.
  • Lane width550mm
  • MaterialSUS304 stainless steel 1.2 mm, except side door( 0.8mm )
  • Power supplyDS-K3G201-R/Pa-Dm55: 12 VDC, 3 A DS-K3G201-R/M-Dm55: 110~230VAC DS-K3G201-R/Dm55: 110~230VAC
  • Working humidity0% to 92% (No condensing)
  • DimensionsWithout package: 420 mm × 300 mm × 980 mm (16.5" × 11.8" × 38.6") With package: 505 mm × 445 mm × 1055 mm (19.88" × 17.52" × 41.54")
  • Working temperature -10 °C to 50 °C (14 °F to 122 °F)
  • Application environmentIndoor
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
