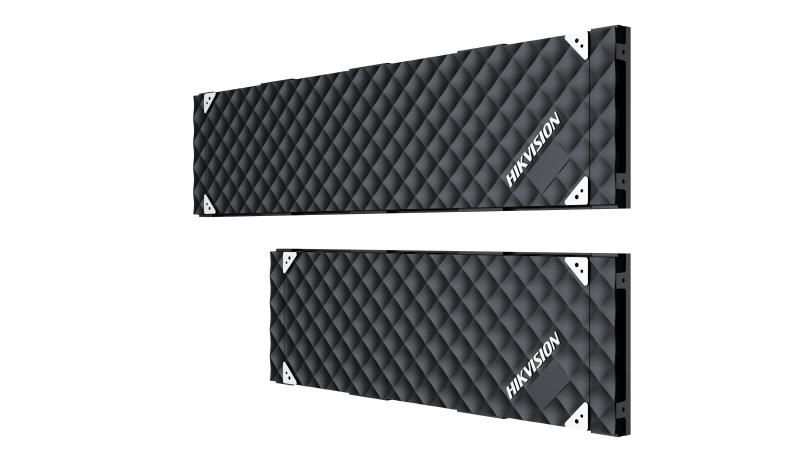

P2.6 250*1000mm Indoor LED Display Unit

A variety of size design, supporting splicing, to meet the needs of various flexible sizes.
No module shell design, die-casting aluminum case, ultra-thin thickness, beautiful and elegant.
Lamp board front maintenance magnetic design, easy to maintain and install.
Supports arc solution. Horizontal 0° to 90° outside the arc and vertical 10° outside the arc with more creative forms.
Supports signal cable backup.
Supports module rotation and horizontal and vertical mixed splicing.
TUV-CE/ROHS/CB certificate completed.

View Less

Data Sheet

Available models:

DS-D4226FI-CGFC

DS-D4226FI-CGFC(STOCK)

DS-D4226FI-CGFC

Specification
Resources
Accessories

Data Sheet

Cabinet
Pixel ConfigurationSMD Triad LED
Pixel Pitch CategoryP2.6
Pixel Pitch2.604 mm
Modules Component1 × 4
Dimensions (W × H × D)1000 mm × 250 mm × 50 mm (39.370" × 9.843" × 1.969")
Resolution384 × 96
Area0.25 m² (387.501 in²)
Weight5.65 Kg (12.456 lb)
Pixel Density147456 dots/m²
Lamp Board HousingWith housing
Cabinet MaterialAluminium die casting
Maintenance MethodFront maintenance for all components
Cabinet Flatness0.1 mm (0.00039")
Protection LevelFront protection level IP60

Display
White Balance Brightness800 cd/m² (Peak 1000 cd/m²)
Color Temperature3000 K to 10000 K adjustable
Viewing AngleHorizontal 160°, vertical 160°
Contrast Ratio≥ 5000:1
Color Uniformity≤ ± 0.003Cx，Cy
Brightness Uniformity≥ 97％

Processing Performance
Driving MethodConstant current driving
Frame Frequency60 Hz
Refresh RateUp to 3840 Hz
Grey LevelUp to 16 bit
Display Color281 trillion

Power
Power Supply110 ~ 220 VAC ± 15%
Max. Consumption≤ 550 W/m²
Average Consumption< 185 W/m²

Working Environment
Working Temperature-10 to 40 °C (14 °F to 104 °F)
Working Humidity10%~80%RH
Storage Humidity10%~80%RH
Storage Temperature-20 to 60 °C (-4 °F to 140 °F)

General
Gross Weight44.65 kg (cabinet without module, 98.436 lb), 30.31 kg (module, 66.822 lb)
Package Dimension (W × H × D)1085 mm × 677 mm × 426 mm (Wooden Box, 6 cabinets in 1 box, 24 modules in 1 box) (42.717" × 26.654" × 16.772")
LifespanLamp 100,000 hours

Bracket
Modular BracketDS-DL111025W 1*1;DS-DL211025W 2*1

Cabinet

Pixel Configuration

SMD Triad LED

Pixel Pitch Category

P2.6

Pixel Pitch

2.604 mm

Modules Component

1 × 4

Dimensions (W × H × D)

1000 mm × 250 mm × 50 mm (39.370" × 9.843" × 1.969")

Resolution

384 × 96

Area

0.25 m² (387.501 in²)

Weight

5.65 Kg (12.456 lb)

Pixel Density

147456 dots/m²

Lamp Board Housing

With housing

Cabinet Material

Aluminium die casting

Maintenance Method

Front maintenance for all components

Cabinet Flatness

0.1 mm (0.00039")

Protection Level

Front protection level IP60

Display

White Balance Brightness

800 cd/m² (Peak 1000 cd/m²)

Color Temperature

3000 K to 10000 K adjustable

Viewing Angle

Horizontal 160°, vertical 160°

Contrast Ratio

≥ 5000:1

Color Uniformity

≤ ± 0.003Cx，Cy

Brightness Uniformity

≥ 97％

Processing Performance

Driving Method

Constant current driving

Frame Frequency

60 Hz

Refresh Rate

Up to 3840 Hz

Grey Level

Up to 16 bit

Display Color

281 trillion

Power

Power Supply

110 ~ 220 VAC ± 15%

Max. Consumption

≤ 550 W/m²

Average Consumption

< 185 W/m²

Working Environment

Working Temperature

-10 to 40 °C (14 °F to 104 °F)

Working Humidity

10%~80%RH

Storage Humidity

10%~80%RH

Storage Temperature

-20 to 60 °C (-4 °F to 140 °F)

General

Gross Weight

44.65 kg (cabinet without module, 98.436 lb), 30.31 kg (module, 66.822 lb)

Package Dimension (W × H × D)

1085 mm × 677 mm × 426 mm (Wooden Box, 6 cabinets in 1 box, 24 modules in 1 box) (42.717" × 26.654" × 16.772")

Lifespan

Lamp 100,000 hours

Bracket

Modular Bracket

DS-DL111025W 1*1;DS-DL211025W 2*1
