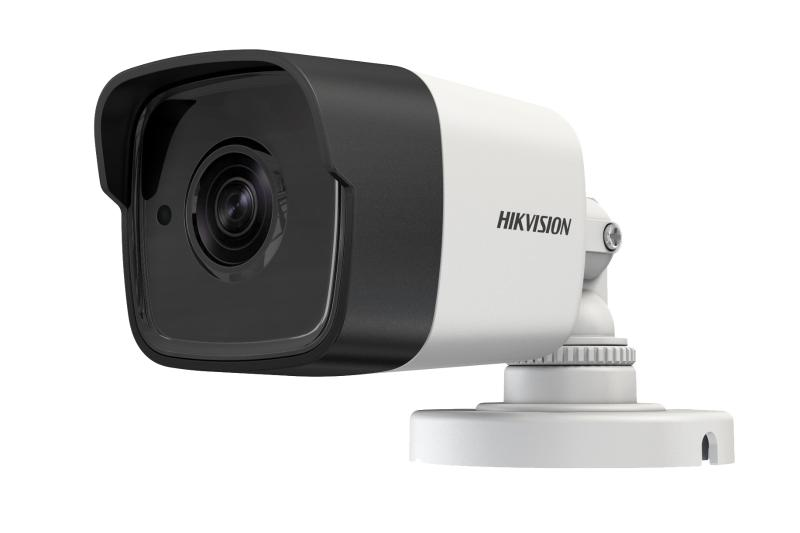

5 MP PoC Fixed Mini Bullet Camera

  • 5 MP high performance bullet camera
  • Strong night performance, capturing images in ultra-low light down to 0.008 lux
  • EXIR 2.0: advanced infrared technology with 20 m IR distance
  • Water and dust resistant (IP67)
  • Transmits both HD video and power over the same coaxial cable.

Available models:

DS-2CE16H5T-ITE(2.8mm)

Specification

  • Camera
  • Image Sensor5 MP CMOS image senso
  • Signal SystemPAL/NTSC
  • Frame Rate2560 × 1944@20fps, 2560 × 1944@12.5fps 2560× 1440@30fps, 2560× 1440@25fps (default) 1920×1080@30fps, 1920×1080@25fps * Under the PoC mode, 2560 × 1944@12.5fps is not available.
  • Resolution2560 (H) × 1944 (V)
  • Min. illuminationColor: 0.008 Lux @ (F1.2, AGC ON), 0 Lux with IR
  • Shutter TimePAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
  • Lens2.8 mm, 3.6 mm, 6 mm fixed focal lens
  • Horizontal Field of View91° (2.8 mm), 70° (3.6 mm), 45° (6 mm)
  • Lens MountM12
  • Day & NightIR cut filter
  • WDR (Wide Dynamic Range)≥ 130 dB
  • Angle AdjustmentPan: 0° to 360°; Tilt:0° to 180°; Rotate: 0° to 360°
  • Menu
  • AGCSupport
  • Day/Night ModeAuto/Color/BW (Black and White)
  • White BalanceATW/MWB
  • BLC (Backlight Compensation)Yes
  • LanguageEnglish, Chinese
  • FunctionsBrightness, Sharpness, DNR , Mirror, Smart IR
  • Interface
  • Video Output1 HD analog output
  • General
  • Operating Condition-40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
  • Power Supply12 V DC ±25%/PoC.at
  • Power ConsumptionMax. 4.5W,
  • Protection LevelIP67
  • Material Metal
  • IR RangeUp to 20 m
  • CommunicationUp the coax, Protocol: HIKVISION-C (TVI output)
  • Dimensions58 mm × 61 mm × 163 mm (2.28" × 2.40" × 6.42")
  • Approx. 350 g (0.77 lb.)

Specification

Firmware
Applied to:
DS-2CE16H5T-ITE(2.8mm)
*For better user experience, we highly recommend you to update your device to the latest firmware asap.
