EOL

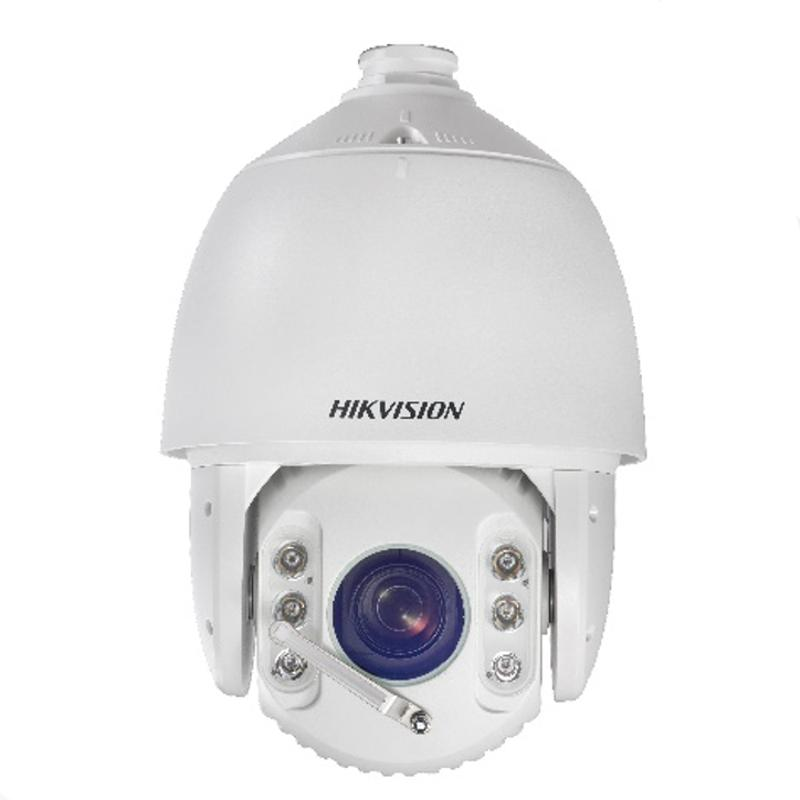

7-inch 2 MP 30X Powered by DarkFighter IR Analog Speed Dome

  • 1/2.8" progressive scan CMOS
  • Max. image resolution: 1920 × 1080
  • Min. illumination: Color: 0.05Lux @ (F1.6, AGC ON); B/W: 0.01Lux @ (F1.6, AGC ON); 0 Lux with IR
  • 30 × optical zoom, focal length 4.5 mm to 135 mm
  • 200 m IR distance
  • IR cut filter
  • 3D DNR, true WDR
  • TVI and CVBS dual output
  • Auto-tracking
  • IP66
View Less
View more
Sales Inquiry

Available models:

DS-2AF7230TI-AW(B)
DS-2AF7230TI-AW
EOL

Specification

  • Lens
  • Zoom SpeedApprox. 3.0 s (Optical, Wide to Tele)
  • Working Distance10 mm to 1500 mm (Wide to Tele)
  • Aperture RangeF 1.6 to F 4.4
  • Angle of View65.1° to 2.3° (Wide to Tele)
  • Focal Length4.5 mm to 135 mm, 30× Optical
  • Image
  • Max. Resolution1920 × 1080
  • Interface
  • RS-485Half-duplex mode,Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol
  • UTC functionHIKVISION_C,*UTC controller is needed, if DVR don’t support UTC function
  • CVBS1.0V[p-p]/75Ω, NTSC (or PAL) composite, BNC
  • Analog Video Output1 turbo 1080p output, NTSC (or PAL) composite, BNC
  • Camera Module
  • Frame Rate50Hz: 25fps @ (1920 × 1080),60Hz: 30fps @ (1920 × 1080)
  • AGCAUTO/MANUAL
  • DNR3D DNR
  • Image Sensor1/2.8" progressive scan CMOS
  • ModelDS-2AF7230TI-AW
  • Min. IlluminationColor: 0.05Lux @ (F1.6, AGC ON),B/W: 0.01Lux @ (F1.6, AGC ON),0 lux with IR
  • White BalanceAUTO/HAUTO/ATW/INDOOR/OUTDOOR/SELF DEFINE
  • S/N ratio≥ 52 dB
  • Shutter TimePAL: 1/1 to 1/10,000 s,NTSC: 1/1 to 1/10,000 s
  • Day & NightIR cut filter
  • Digital Zoom16×
  • Privacy Mask8 privacy masks
  • Focus ModeAuto/Semiauto/Manual
  • WDRTrue WDR
  • Supplement Light
  • IR Distance200 m
  • Smart IRAutomatically adjusted, depending on the zoom ratio
  • PTZ
  • Movement Range (Pan)360° endless
  • Pan SpeedPan manual speed: 0.1° to 180°/s; Pan preset speed: 180°/s
  • Movement Range (Tilt)-15° to 90° (Auto flip)
  • Tilt SpeedTilt manual speed: 0.1° to 120°/s; Tilt preset speed: 120°/s
  • Proportional ZoomRotation speed can be adjusted automatically according to zoom multiples
  • Patrol Scan10 patrols, up to 32 presets per patrol
  • Pattern Scan5 patterns, with the total recording time not less than 10 minutes
  • Power-off MemorySupport
  • Park ActionPreset/Patrol/Pattern/Pan Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Day Mode/Night Mode/None
  • PTZ Status DisplayON/OFF
  • Preset FreezingSupport
  • Scheduled TaskPreset/Patrol/Pattern/Pan Scan/Tilt Scan/Frame Scan/Random Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None
  • General
  • DimensionsΦ 220 mm × 353.4 mm (Φ 8.66" ×13.91")
  • Weight4.5 Kg (9.92 lb.)
  • Protection LevelIP66 standard (outdoor dome),TVS 6,000 V lightning protection, surge protection and voltage transient protection
  • Power24 VAC,Max.: 45 W (IR: 15 W; Heater: 5 W)
  • Working TemperatureOutdoor: -30° C to 65° C (-22° F to 149° F)
  • Working Humidity90% or less
  • Menu LanguageEnglish, Chinese
  • MountingVarious mounting modes optional
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Lens
Zoom Speed
Approx. 3.0 s (Optical, Wide to Tele)
Working Distance
10 mm to 1500 mm (Wide to Tele)
Aperture Range
F 1.6 to F 4.4
Angle of View
65.1° to 2.3° (Wide to Tele)
Focal Length
4.5 mm to 135 mm, 30× Optical
Max. Resolution
1920 × 1080
Interface
RS-485
Half-duplex mode,Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol
UTC function
HIKVISION_C,*UTC controller is needed, if DVR don’t support UTC function
CVBS
1.0V[p-p]/75Ω, NTSC (or PAL) composite, BNC
Analog Video Output
1 turbo 1080p output, NTSC (or PAL) composite, BNC
Camera Module
Frame Rate
50Hz: 25fps @ (1920 × 1080),60Hz: 30fps @ (1920 × 1080)
AGC
AUTO/MANUAL
DNR
3D DNR
Image Sensor
1/2.8" progressive scan CMOS
Model
DS-2AF7230TI-AW
Min. Illumination
Color: 0.05Lux @ (F1.6, AGC ON),B/W: 0.01Lux @ (F1.6, AGC ON),0 lux with IR
White Balance
AUTO/HAUTO/ATW/INDOOR/OUTDOOR/SELF DEFINE
S/N ratio
≥ 52 dB
Shutter Time
PAL: 1/1 to 1/10,000 s,NTSC: 1/1 to 1/10,000 s
Day & Night
IR cut filter
Digital Zoom
16×
Privacy Mask
8 privacy masks
Focus Mode
Auto/Semiauto/Manual
WDR
True WDR
Supplement Light
IR Distance
200 m
Smart IR
Automatically adjusted, depending on the zoom ratio
PTZ
Movement Range (Pan)
360° endless
Pan Speed
Pan manual speed: 0.1° to 180°/s; Pan preset speed: 180°/s
Movement Range (Tilt)
-15° to 90° (Auto flip)
Tilt Speed
Tilt manual speed: 0.1° to 120°/s; Tilt preset speed: 120°/s
Proportional Zoom
Rotation speed can be adjusted automatically according to zoom multiples
Patrol Scan
10 patrols, up to 32 presets per patrol
Pattern Scan
5 patterns, with the total recording time not less than 10 minutes
Power-off Memory
Support
Park Action
Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Day Mode/Night Mode/None
PTZ Status Display
ON/OFF
Preset Freezing
Support
Scheduled Task
Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Frame Scan/Random Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None
General
Dimensions
Φ 220 mm × 353.4 mm (Φ 8.66" ×13.91")
Weight
4.5 Kg (9.92 lb.)
Protection Level
IP66 standard (outdoor dome),TVS 6,000 V lightning protection, surge protection and voltage transient protection
Power
24 VAC,Max.: 45 W (IR: 15 W; Heater: 5 W)
Working Temperature
Outdoor: -30° C to 65° C (-22° F to 149° F)
Working Humidity
90% or less
Menu Language
English, Chinese
Mounting
Various mounting modes optional
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Lens
  • Zoom SpeedApprox. 3.0 s (Optical, Wide to Tele)
  • Working Distance10 mm to 1500 mm (Wide to Tele)
  • Aperture RangeF 1.6 to F 4.4
  • Angle of View65.1° to 2.3° (Wide to Tele)
  • Focal Length4.5 mm to 135 mm, 30× Optical
  • Max. Resolution1920 × 1080
Interface
  • RS-485Half-duplex mode,Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol
  • UTC functionHIKVISION_C,*UTC controller is needed, if DVR don’t support UTC function
  • CVBS1.0V[p-p]/75Ω, NTSC (or PAL) composite, BNC
  • Analog Video Output1 turbo 1080p output, NTSC (or PAL) composite, BNC
Camera Module
  • Frame Rate50Hz: 25fps @ (1920 × 1080),60Hz: 30fps @ (1920 × 1080)
  • AGCAUTO/MANUAL
  • DNR3D DNR
  • Image Sensor1/2.8" progressive scan CMOS
  • ModelDS-2AF7230TI-AW
  • Min. IlluminationColor: 0.05Lux @ (F1.6, AGC ON),B/W: 0.01Lux @ (F1.6, AGC ON),0 lux with IR
  • White BalanceAUTO/HAUTO/ATW/INDOOR/OUTDOOR/SELF DEFINE
  • S/N ratio≥ 52 dB
  • Shutter TimePAL: 1/1 to 1/10,000 s,NTSC: 1/1 to 1/10,000 s
  • Day & NightIR cut filter
  • Digital Zoom16×
  • Privacy Mask8 privacy masks
  • Focus ModeAuto/Semiauto/Manual
  • WDRTrue WDR
Supplement Light
  • IR Distance200 m
  • Smart IRAutomatically adjusted, depending on the zoom ratio
PTZ
  • Movement Range (Pan)360° endless
  • Pan SpeedPan manual speed: 0.1° to 180°/s; Pan preset speed: 180°/s
  • Movement Range (Tilt)-15° to 90° (Auto flip)
  • Tilt SpeedTilt manual speed: 0.1° to 120°/s; Tilt preset speed: 120°/s
  • Proportional ZoomRotation speed can be adjusted automatically according to zoom multiples
  • Patrol Scan10 patrols, up to 32 presets per patrol
  • Pattern Scan5 patterns, with the total recording time not less than 10 minutes
  • Power-off MemorySupport
  • Park ActionPreset/Patrol/Pattern/Pan Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Day Mode/Night Mode/None
  • PTZ Status DisplayON/OFF
  • Preset FreezingSupport
  • Scheduled TaskPreset/Patrol/Pattern/Pan Scan/Tilt Scan/Frame Scan/Random Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None
General
  • DimensionsΦ 220 mm × 353.4 mm (Φ 8.66" ×13.91")
  • Weight4.5 Kg (9.92 lb.)
  • Protection LevelIP66 standard (outdoor dome),TVS 6,000 V lightning protection, surge protection and voltage transient protection
  • Power24 VAC,Max.: 45 W (IR: 15 W; Heater: 5 W)
  • Working TemperatureOutdoor: -30° C to 65° C (-22° F to 149° F)
  • Working Humidity90% or less
  • Menu LanguageEnglish, Chinese
  • MountingVarious mounting modes optional
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
