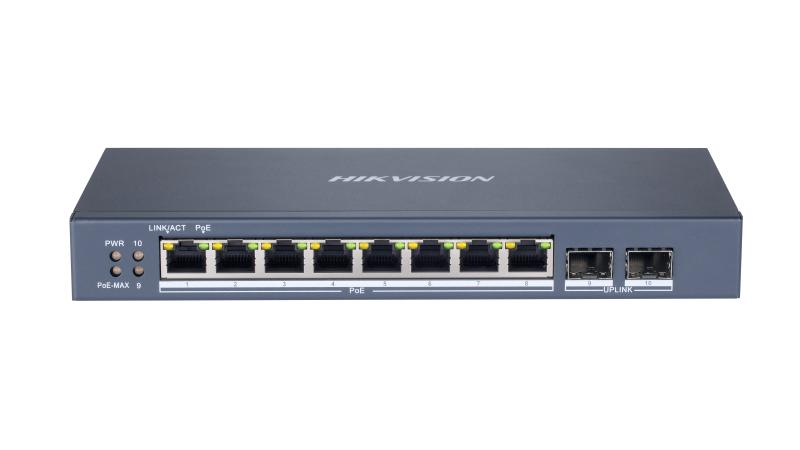

DS-3E1510P-E

EOL

8 Port Gigabit Web POE Switch

  • 8 × gigabit PoE ports, and 2 × gigabit fiber optical ports
  • IEEE 802.3at/af standard for PoE ports
  • IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standard
  • 6 KV surge protection for PoE ports.
  • AF/AT camera can reach up to 300 m in extend mode
  • PoE watchdog to auto detect and restart the cameras that do not respond
  • PoE output power management
  • Gigabit network access design
  • Wire-speed forwarding
  • Store-and-forward switching
  • Various layer 2 management protocols such as STP/RSTP, VLAN, link aggregation, SNMP, QoS and so on
  • Port management
  • Web management
  • Solid high-strength metal shell
  • Reliable fan-free design
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-3E1510P-E
DS-3E1510P-E
EOL
Data Sheet

Specification

  • General
  • ShellMetal material, fan-free design
  • Net weight1.21 kg (2.67 lb)
  • Storage temperature-40 °C to 85 °C (-40 °F to 185 °F)
  • Operating humidity5% to 95% (no condensation)
  • Power supply48 VDC, 2.5 A
  • Gross weight1.3 kg (2.87 lb)
  • Dimension (L × H × D)217.6 mm × 108.55 mm × 27.8 mm (8.57” × 4.27” × 1.09”)
  • Operating temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Relative humidity5% to 95% (no condensation)
  • Power source120 W
  • Max. power consumption120 W
  • Power consumption in idle7 W
  • Network parameters
  • Port number8 × gigabit PoE ports, and 2 × gigabit fiber optical ports
  • Port typeRJ45 port, full duplex, MDI/MDI-X adaptive
  • StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z
  • Forwarding modeStore-and-forward switching
  • Working modeStandard mode (default); Extend mode
  • MAC address table8 K
  • Switching capacity20 Gbps
  • Packet forwarding rate14.88 Mpps
  • Internal cache4.1 Mbits
  • PoE power supply
  • PoE standardIEEE 802.3af, IEEE 802.3at
  • PoE power pinEthernet cables 1/2/3/6 provide power supply.
  • PoE portPorts 1 to 8
  • Max. port power30 W
  • PoE power budget110 W
  • Software Function
  • Device maintenanceSupport remote upgrade, recovering default parameters, viewing logs, configuring basic network parameters, import and export configuration, time sync.
  • Port configurationSupport the configuration of port rate and slow control, and ports enabling.
  • Long rangeSupport up to 300 m transmission.
  • PoE watchdogPorts 1 to 8: auto detect and restart the cameras that do not respond.
  • Port rate-limitingSupport rate-limiting for ingress and egress ports..
  • Storm controlSupport the storm control of unknown unicast, multicast and broadcast.
  • Port mirroringSupport port mirroring function.
  • QoSSupport WRR and SP scheduling and port priority.
  • VLANSupport 128 VLANs.
  • STPSupport STP and RSTP.
  • SNMPSupport SNMPv1 and SNMPv2c, the node information for system and interfaces acquisition.
  • PoESupport IEEE 802.3at/af power supply.
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

General
Shell
Metal material, fan-free design
Net weight
1.21 kg (2.67 lb)
Storage temperature
-40 °C to 85 °C (-40 °F to 185 °F)
Operating humidity
5% to 95% (no condensation)
Power supply
48 VDC, 2.5 A
Gross weight
1.3 kg (2.87 lb)
Dimension (L × H × D)
217.6 mm × 108.55 mm × 27.8 mm (8.57” × 4.27” × 1.09”)
Operating temperature
-10 °C to 55 °C (14 °F to 131 °F)
Relative humidity
5% to 95% (no condensation)
Power source
120 W
Max. power consumption
120 W
Power consumption in idle
7 W
Network parameters
Port number
8 × gigabit PoE ports, and 2 × gigabit fiber optical ports
Port type
RJ45 port, full duplex, MDI/MDI-X adaptive
Standard
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z
Forwarding mode
Store-and-forward switching
Working mode
Standard mode (default); Extend mode
MAC address table
8 K
Switching capacity
20 Gbps
Packet forwarding rate
14.88 Mpps
Internal cache
4.1 Mbits
PoE power supply
PoE standard
IEEE 802.3af, IEEE 802.3at
PoE power pin
Ethernet cables 1/2/3/6 provide power supply.
PoE port
Ports 1 to 8
Max. port power
30 W
PoE power budget
110 W
Software Function
Device maintenance
Support remote upgrade, recovering default parameters, viewing logs, configuring basic network parameters, import and export configuration, time sync.
Port configuration
Support the configuration of port rate and slow control, and ports enabling.
Long range
Support up to 300 m transmission.
PoE watchdog
Ports 1 to 8: auto detect and restart the cameras that do not respond.
Port rate-limiting
Support rate-limiting for ingress and egress ports..
Storm control
Support the storm control of unknown unicast, multicast and broadcast.
Port mirroring
Support port mirroring function.
QoS
Support WRR and SP scheduling and port priority.
VLAN
Support 128 VLANs.
STP
Support STP and RSTP.
SNMP
Support SNMPv1 and SNMPv2c, the node information for system and interfaces acquisition.
PoE
Support IEEE 802.3at/af power supply.
For better user experience, we highly recommend you to update your device to the latest firmware asap.
