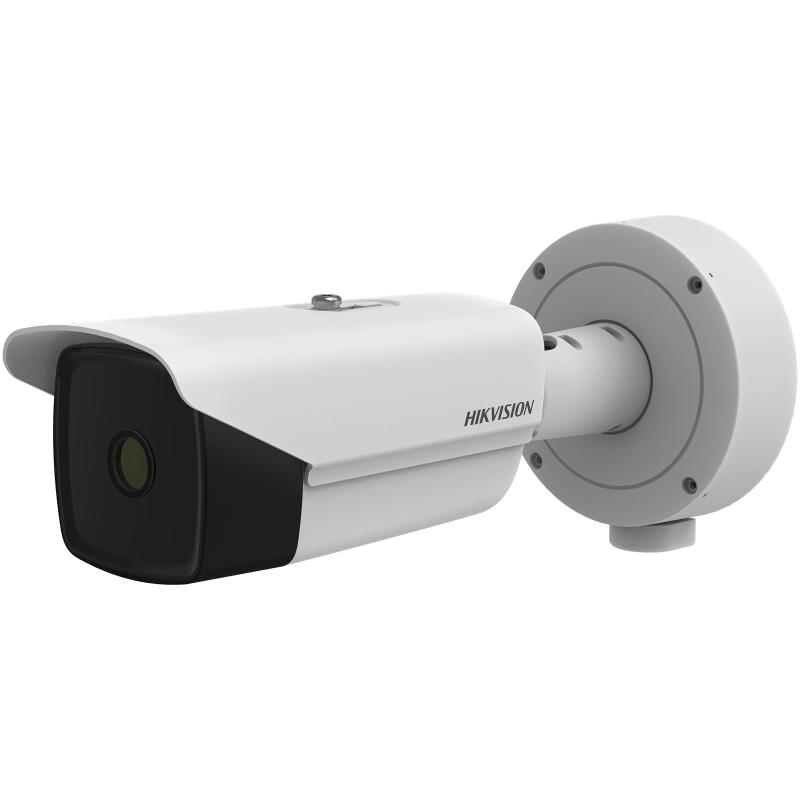

Thermal Network Bullet Camera

High sensitivity sensor with 384 x 288 resolution
NETD is less than 35 mk (@25° C, F#=1.0)
Supports contrast adjustment
Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
Up to 15 palettes of adjustable color
Powerful behavior analysis functions, based on deep learning algorithm: Line crossing, intrusion, region entrance & exit
Reliable temperature-anomaly alarm
Advanced fire detection algorithm

View Less

DS-2TD2137-7/PI

Specification
Resources
Accessories

Thermal Module
Image SensorVanadium Oxide Uncooled Focal Plane Arrays
Resolution384 × 288
Pixel Interval17 μm
Response Waveband8 μm to 14 μm
NETDLess than 35 mK (@25 °C,F#=1.0)
Focal Length6.5 mm
IFOV2.62 mrad
Field of View60° × 44.1° (H × V)
Min. Focusing Distance0.6 m
ApertureF 1.0
Digital Zoom×2, ×4, ×8

Image Effect
Target ColorationYes. Supported in white hot and black hot mode.

Smart Function
VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
Temperature Measurement3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line).
Temperature Range-20 °C to 150 °C (-4 °F to 302 °F)
Temperature Accuracy± 8 °C (±14.4 °F)
Fire DetectionDynamic fire detection, up to 10 fire points detectable.

Video and Audio
Main StreamThermal: 25 fps (1280 × 720, 704 × 576, 384 × 288, 352 × 288)
Sub StreamThermal: 25 fps (704 × 576, 352 × 288, 320 × 240)
Third StreamThermal: 25 fps (1280 × 720, 704 × 576, 352 × 288, 320 × 240)
Video CompressionMain Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG
Audio CompressionG .711u/G.711a/G.722.1/MP2L2/G.726/PCM

Network
ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Network StorageMicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
APIISAPI, HIKVISION SDK, third-party management platform, ONVIF (Profile S, Profile G, Profile T)
Simultaneous Live ViewUp to 20 channels
User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
SecurityUser authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x (EAP-MD5, EAP-TLS), access control, IP address filtering
ClientiVMS-4200, Hik-Connect
Web BrowserLive view (plug-in allowed) : Internet Explorer 11 Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 + Local service : Chrome 57.0+, Firefox 52.0 +

Interface
Alarm Input1-ch inputs (0-5 VDC)
Alarm Output1-ch relay outputs, alarm response actions configurable
Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage
Audio Input1, 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
Audio OutputLinear Level; Impedance: 600 Ω
Communication Interface1, RJ45 10 M/100 M Self-adaptive Ethernet interface

General
Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Power24 VAC ± 25%;12 VDC ± 25%;PoE (802.3af, class 3): 44 V to 57 V: 0.1 A to 0.13 A
Power Consumption18 VAC to 30VAC: 0.13 A to 0.22A, max 5w 9 VDC to 15VDC: 0.37 A to 0.61A, max 5w PoE (802.3af, class 3): 44 V to 57 V: 0.1 A to 0.13 A, max. 5.5W
Work Temperature/HumidityFrom -40°C to 65°C (-40°F to 149°F); Humidity: 90% or Less
Protection LevelIP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
Dimension353.9 mm × 144.1 mm × 156.6 mm (13.93" × 5.67" × 6.17")
WeightApprox. 2.61 kg (5.76lb)

Detection Range Table/Wide Range Coverage
Detection Range for Humans (1.8×0.5m)206 m
Detection Range for Vehicles (4.0×1.4m)631 m
Recognition Range for Humans (1.8×0.5m)51 m
Recognition Range for Vehicles (4.0×1.4m)158 m
Identification Range for Humans (1.8×0.5m)26 m
Identification Range for Vehicles (4.0×1.4m)79 m

Detection Range Table/Smart Function Range
VCA Range for Humans70 m
VCA Range for Vehicles210 m
Temperature Measurement Range for Object (2m×2m)164 m
Temperature Measurement Range for Object (1m×1m)83 m
Fire Detection Range for Object (2m×2m)412 m
Fire Detection Range for Object (1m×1m)206 m

Thermal Module

Image Sensor

Vanadium Oxide Uncooled Focal Plane Arrays

Resolution

384 × 288

Pixel Interval

17 μm

Response Waveband

8 μm to 14 μm

NETD

Less than 35 mK (@25 °C,F#=1.0)

Focal Length

6.5 mm

IFOV

2.62 mrad

Field of View

60° × 44.1° (H × V)

Min. Focusing Distance

0.6 m

Aperture

F 1.0

Digital Zoom

×2, ×4, ×8

Image Effect

Target Coloration

Yes. Supported in white hot and black hot mode.

Smart Function

VCA

4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.

Temperature Measurement

3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line).

Temperature Range

-20 °C to 150 °C (-4 °F to 302 °F)

Temperature Accuracy

± 8 °C (±14.4 °F)

Fire Detection

Dynamic fire detection, up to 10 fire points detectable.

Video and Audio

Main Stream

Thermal: 25 fps (1280 × 720, 704 × 576, 384 × 288, 352 × 288)

Sub Stream

Thermal: 25 fps (704 × 576, 352 × 288, 320 × 240)

Third Stream

Thermal: 25 fps (1280 × 720, 704 × 576, 352 × 288, 320 × 240)

Video Compression

Main Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG

Audio Compression

G .711u/G.711a/G.722.1/MP2L2/G.726/PCM

Network

Protocols

IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE

Network Storage

MicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)

API

ISAPI, HIKVISION SDK, third-party management platform, ONVIF (Profile S, Profile G, Profile T)

Simultaneous Live View

Up to 20 channels

User/Host level

Up to 32 users, 3 levels: Administrator, Operator, User

Security

User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x (EAP-MD5, EAP-TLS), access control, IP address filtering

Client

iVMS-4200, Hik-Connect

Web Browser

Live view (plug-in allowed) : Internet Explorer 11 Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 + Local service : Chrome 57.0+, Firefox 52.0 +

Interface

Alarm Input

1-ch inputs (0-5 VDC)

Alarm Output

1-ch relay outputs, alarm response actions configurable

Alarm Action

SD recording/Relay output/Smart capture/FTP upload/Email linkage

Audio Input

1, 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%

Audio Output

Linear Level; Impedance: 600 Ω

Communication Interface

1, RJ45 10 M/100 M Self-adaptive Ethernet interface

General

Web Client Language

32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

Power

24 VAC ± 25%;12 VDC ± 25%;PoE (802.3af, class 3): 44 V to 57 V: 0.1 A to 0.13 A

Power Consumption

18 VAC to 30VAC: 0.13 A to 0.22A, max 5w 9 VDC to 15VDC: 0.37 A to 0.61A, max 5w PoE (802.3af, class 3): 44 V to 57 V: 0.1 A to 0.13 A, max. 5.5W

Work Temperature/Humidity

From -40°C to 65°C (-40°F to 149°F); Humidity: 90% or Less

Protection Level

IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection

Dimension

353.9 mm × 144.1 mm × 156.6 mm (13.93" × 5.67" × 6.17")

Weight

Approx. 2.61 kg (5.76lb)

Detection Range Table/Wide Range Coverage

Detection Range for Humans (1.8×0.5m)

206 m

Detection Range for Vehicles (4.0×1.4m)

631 m

Recognition Range for Humans (1.8×0.5m)

51 m

Recognition Range for Vehicles (4.0×1.4m)

158 m

Identification Range for Humans (1.8×0.5m)

26 m

Identification Range for Vehicles (4.0×1.4m)

79 m

Detection Range Table/Smart Function Range

VCA Range for Humans

70 m

VCA Range for Vehicles

210 m

Temperature Measurement Range for Object (2m×2m)

164 m

Temperature Measurement Range for Object (1m×1m)

83 m

Fire Detection Range for Object (2m×2m)

412 m

Fire Detection Range for Object (1m×1m)
