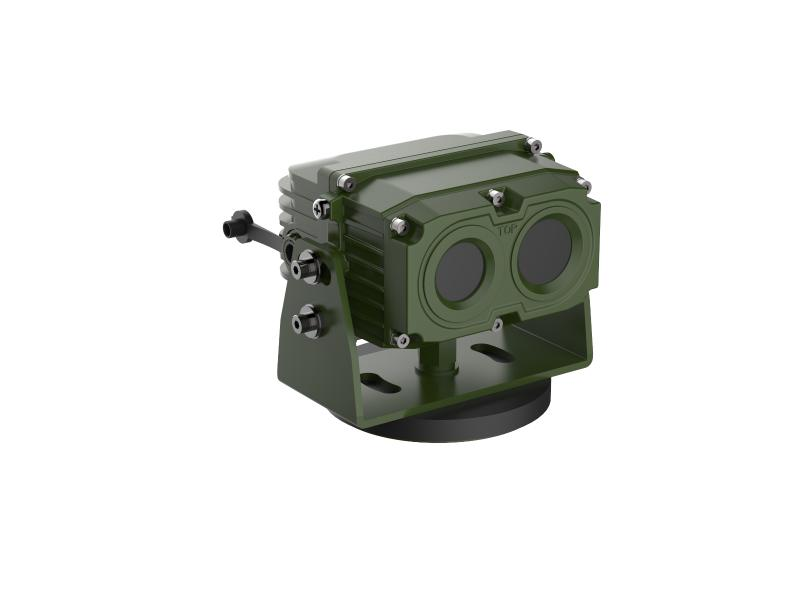

Thermal & Optical Bi-spectrum Driving Assistance System

  • High sensitivity sensor with 384 x 288 resolution
  • NETD is less than 40 mk (@25° C, F#=1.0)
  • Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
  • Bi-spectrum image fusion technology
  • Shutterless technology
  • 800 x 480 resolution LCD display
  • Intelligent de-icing, replaceable IR window
  • Equipped with mounting bracket, easy to install
  • IP67 protection level
View Less
View more

Available models:

DS-2TV13-10I

Specification

  • Thermal
  • Image sensorUncooled Focal Plane Arrays
  • Max. Resolution384 × 288
  • Pixel interval17μm
  • Response waveband8μm to 14μm
  • NETD< 50mk(@25°C,F#=1.0)
  • Lens (focal length)10mm
  • MRAD1.7
  • Field of View36°×27°
  • Min. Focusing Distance2m
  • F number1
  • Frame Rate25fps
  • Optical
  • Image Sensor1/3’’ Progressive Scan CMOS
  • Min. IlluminationB/W : 0.001 lux @ (F1.0 , AGC On )
  • Focal Length6.4mm
  • Field of View36°×27°
  • Min. Working Distance2m
  • System
  • Bi-spectrum image fusionSupport
  • Pedestrian detectionSupport
  • Intelligent lane markingSupport
  • PalettesBlack hot, white hot, green hot
  • Uniformity CorrectionSupport shutterless technology
  • Intelligent deicingSupport
  • Digital Zoom1X, 2X
  • Screen
  • Resolution800×480 LCD
  • Power9~36V by automobile cigar lighter plug, support anti-reverse connection protection
  • Work TemperatureFrom -20°C to 55°C (-4°F to 131°F)
  • MountingUNC 1/4”-20
  • Dimension (L x W x H)192.3mm × 35mm × 136.3mm (7.57” × 1.38“ × 5.37”)
  • Weight660g (1.46lb)
  • Hardware InterfaceOne power interface, one data input interface
  • Integration
  • Analog Video OutputSupport
  • General plugAviation plug
  • Video Output FormatCCIR
  • General
  • PowerDC12V
  • Protection LevelIP67
  • Weight550g (1.21lb)
  • MenuEnglish
  • Work TemperatureFrom -40°C to 55°C (-40°F to 131°F)
  • Dimension (L x W x H)101.1mm × 99.1mm × 65.5mm (3.98” × 3.9“ × 2.58”)
  • AccessoryVideo Cable (4 m/13.1‘), Power Cord (1.5 m/4.9‘), Cigar Light Cable (1.5 m/4.9‘), Cable Clamp (large), Cable Clamp (small), Wrench, Hex Wrench, Mount Screw, Self-tapping Screw, Disassembling Tool, Cloth

Specification

Specification
Thermal
  • Image sensorUncooled Focal Plane Arrays
  • Max. Resolution384 × 288
  • Pixel interval17μm
  • Response waveband8μm to 14μm
  • NETD< 50mk(@25°C,F#=1.0)
  • Lens (focal length)10mm
  • MRAD1.7
  • Field of View36°×27°
  • Min. Focusing Distance2m
  • F number1
  • Frame Rate25fps
Optical
  • Image Sensor1/3’’ Progressive Scan CMOS
  • Min. IlluminationB/W : 0.001 lux @ (F1.0 , AGC On )
  • Focal Length6.4mm
  • Field of View36°×27°
  • Min. Working Distance2m
System
  • Bi-spectrum image fusionSupport
  • Pedestrian detectionSupport
  • Intelligent lane markingSupport
  • PalettesBlack hot, white hot, green hot
  • Uniformity CorrectionSupport shutterless technology
  • Intelligent deicingSupport
  • Digital Zoom1X, 2X
Screen
  • Resolution800×480 LCD
  • Power9~36V by automobile cigar lighter plug, support anti-reverse connection protection
  • Work TemperatureFrom -20°C to 55°C (-4°F to 131°F)
  • MountingUNC 1/4”-20
  • Dimension (L x W x H)192.3mm × 35mm × 136.3mm (7.57” × 1.38“ × 5.37”)
  • Weight660g (1.46lb)
  • Hardware InterfaceOne power interface, one data input interface
Integration
  • Analog Video OutputSupport
  • General plugAviation plug
  • Video Output FormatCCIR
General
  • PowerDC12V
  • Protection LevelIP67
  • Weight550g (1.21lb)
  • MenuEnglish
  • Work TemperatureFrom -40°C to 55°C (-40°F to 131°F)
  • Dimension (L x W x H)101.1mm × 99.1mm × 65.5mm (3.98” × 3.9“ × 2.58”)
  • AccessoryVideo Cable (4 m/13.1‘), Power Cord (1.5 m/4.9‘), Cigar Light Cable (1.5 m/4.9‘), Cable Clamp (large), Cable Clamp (small), Wrench, Hex Wrench, Mount Screw, Self-tapping Screw, Disassembling Tool, Cloth

Firmware

Applied to:
DS-2TV13-10I
For better user experience, we highly recommend you to update your device to the latest firmware asap.
