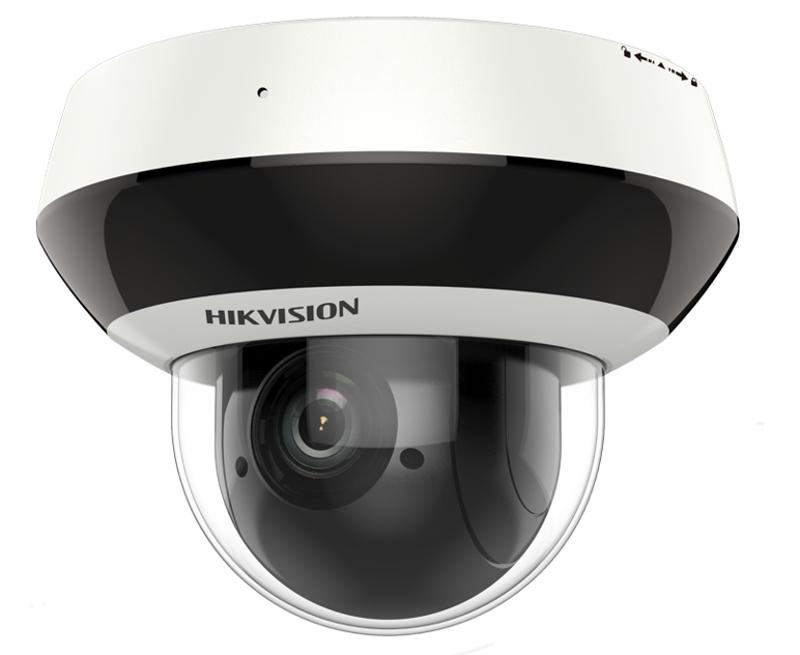

2-inch 4 MP 4X Powered by DarkFighter IR Network Speed Dome

  • High quality imaging with 4 MP resolution
  • Excellent low-light performance via powered-by-DarkFighter technology
  • Clear imaging against strong back lighting due to 120 dB WDR technology
  • Pan and tilt ability enables camera to monitor zones of interest
  • 4x optical zoom allows for closer viewing of subjects in expansive areas
  • Up to 20m IR range ensures safety at night.
View Less
View more

Available models:

DS-2DE2A404IW-DE3/W(2.8-12mm)(C)

Specification

  • Lens
  • FOVHorizontal field of view: 96.7° to 31.6° (Wide-Tele), Vertical field of view: 51.1° to 17.7° (Wide-Tele) , Diagonal field of view: 115.1° to 36.3° (Wide-Tele)
  • Zoom SpeedApprox. 2 s (optical lens, wide-tele)
  • Working Distance10 mm to 1500 mm (wide-tele)
  • Aperture RangeF1.6 to F2.7
  • Focal Length2.8 mm to 12 mm, 4× optical zoom
  • Image
  • Image Enhancement3D DNR, EIS, Regional Exposure, Regional Focus
  • Sub-Stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
  • Max. Resolution2560 × 1440
  • Main Stream50Hz: 25fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 24fps (2560 × 1440), 30fps(2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720)
  • Third Stream50Hz: 25fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (1280 × 720, 704 × 480, 640 × 480, 352 × 240)
  • Network
  • Network StorageBuilt-in memory card slot, support microSD/SDHC/SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
  • ProtocolsIPv4/IPv6, HTTP, HTTPS, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour
  • APIONVIF (Profile S, Profile G, Profile T), ISAPI, SDK
  • Simultaneous Live ViewUp to 20 channels
  • User/HostUp to 32 users,3 levels: Administrator, Operator and User
  • ClientiVMS-4200, Hik-Central, Hik-Connect
  • Web BrowserIE 8 to 11,Chrome 31.0+, Firefox 30.0+, Edge 16.16299+
  • Security MeasuresUser authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
  • Alarm LinkageAlarm actions, such as Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.
  • Interface
  • Audio Input1-ch audio input (mic in/line in) , 1 built-in microphone
  • Audio Output1-ch audio output
  • Network Interface1 RJ45 10 M/100 M Ethernet, PoE
  • Compression Standard
  • H.264+Yes
  • H.265+Yes
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • Video CompressionMain Stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG,Third Stream: H.265/H.264/MJPEG
  • Video Bitrate32 Kbps to 16384 Kbps
  • Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
  • Audio Bitrate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 192 Kbps(MP2L2)
  • SVCYes
  • Camera Module
  • Image Sensor1/3" progressive scan CMOS
  • Min. IlluminationColor: 0.005 Lux @(F1.6, AGC ON),B/W: 0.001 Lux @(F1.6, AGC ON),0 Lux with IR
  • White BalanceAuto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
  • GainAuto/Manual
  • Shutter Time50Hz: 1/1 s to 1/30,000 s,60Hz: 1/1 s to 1/30,000 s
  • Day & NightIR cut filter
  • Digital Zoom16×
  • Privacy Mask24 programmable privacy masks
  • Focus ModeAuto/Semi-automatic/Manual
  • WDR120 dB WDR
  • Supplement Light
  • IR Distance20 m
  • Smart IRYes
  • PTZ
  • Movement Range (Pan)0° to 355°
  • Pan SpeedConfigurable, from 0.1°/s to 100°/s, ,Preset speed: 100°/s
  • Movement Range (Tilt)From 0° to 90°
  • Tilt SpeedConfigurable, from 0.1°/s to 100°/s,Preset Speed: 100°/s
  • Proportional ZoomYes
  • Presets300
  • Power-off MemoryYes
  • Smart Features
  • Basic Event DetectionMotion Detection, Video Tampering Detection, Exception
  • Smart DetectionFace detection, intrusion detection, line crossing detection, region entrance detection, region exiting detection, object removal detection, unattended baggage detection, audio exception detection
  • Smart RecordANR (Automatic Network Replenishment), Dual-VCA
  • ROIMain stream, sub-stream, and third stream respectively support four fixed areas.
  • General
  • MaterialAluminum alloy, PC, PC+ABS
  • DimensionsΦ 130.7 mm × 101.7 mm (Φ 5.15" × 4.00")
  • WeightApprox. 0.53 kg (1.17 lb)
  • Protection LevelIP66 standard, IK 10, surge protection, ±2kV Line to Gnd, ±1kV Line to Line, IEC61000-4-5
  • Power12 VDC, 1.5 A (Max. 10.9 W, including Max. 4.2 W for IR) PoE (802.3af), 36 to 57 VDC, 0.35 A (Max. 12.2 W, including max. 4.2 W for IR)
  • Working Temperature-20°C to 60°C (-4°F to 140°F)
  • Working Humidity≤ 90%

Specification

Specification
Lens
  • FOVHorizontal field of view: 96.7° to 31.6° (Wide-Tele), Vertical field of view: 51.1° to 17.7° (Wide-Tele) , Diagonal field of view: 115.1° to 36.3° (Wide-Tele)
  • Zoom SpeedApprox. 2 s (optical lens, wide-tele)
  • Working Distance10 mm to 1500 mm (wide-tele)
  • Aperture RangeF1.6 to F2.7
  • Focal Length2.8 mm to 12 mm, 4× optical zoom
  • Image Enhancement3D DNR, EIS, Regional Exposure, Regional Focus
  • Sub-Stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
  • Max. Resolution2560 × 1440
  • Main Stream50Hz: 25fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 24fps (2560 × 1440), 30fps(2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720)
  • Third Stream50Hz: 25fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Network
  • Network StorageBuilt-in memory card slot, support microSD/SDHC/SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
  • ProtocolsIPv4/IPv6, HTTP, HTTPS, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour
  • APIONVIF (Profile S, Profile G, Profile T), ISAPI, SDK
  • Simultaneous Live ViewUp to 20 channels
  • User/HostUp to 32 users,3 levels: Administrator, Operator and User
  • ClientiVMS-4200, Hik-Central, Hik-Connect
  • Web BrowserIE 8 to 11,Chrome 31.0+, Firefox 30.0+, Edge 16.16299+
  • Security MeasuresUser authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
  • Alarm LinkageAlarm actions, such as Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.
Interface
  • Audio Input1-ch audio input (mic in/line in) , 1 built-in microphone
  • Audio Output1-ch audio output
  • Network Interface1 RJ45 10 M/100 M Ethernet, PoE
Compression Standard
  • H.264+Yes
  • H.265+Yes
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • Video CompressionMain Stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG,Third Stream: H.265/H.264/MJPEG
  • Video Bitrate32 Kbps to 16384 Kbps
  • Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
  • Audio Bitrate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 192 Kbps(MP2L2)
  • SVCYes
Camera Module
  • Image Sensor1/3" progressive scan CMOS
  • Min. IlluminationColor: 0.005 Lux @(F1.6, AGC ON),B/W: 0.001 Lux @(F1.6, AGC ON),0 Lux with IR
  • White BalanceAuto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
  • GainAuto/Manual
  • Shutter Time50Hz: 1/1 s to 1/30,000 s,60Hz: 1/1 s to 1/30,000 s
  • Day & NightIR cut filter
  • Digital Zoom16×
  • Privacy Mask24 programmable privacy masks
  • Focus ModeAuto/Semi-automatic/Manual
  • WDR120 dB WDR
Supplement Light
  • IR Distance20 m
  • Smart IRYes
PTZ
  • Movement Range (Pan)0° to 355°
  • Pan SpeedConfigurable, from 0.1°/s to 100°/s, ,Preset speed: 100°/s
  • Movement Range (Tilt)From 0° to 90°
  • Tilt SpeedConfigurable, from 0.1°/s to 100°/s,Preset Speed: 100°/s
  • Proportional ZoomYes
  • Presets300
  • Power-off MemoryYes
Smart Features
  • Basic Event DetectionMotion Detection, Video Tampering Detection, Exception
  • Smart DetectionFace detection, intrusion detection, line crossing detection, region entrance detection, region exiting detection, object removal detection, unattended baggage detection, audio exception detection
  • Smart RecordANR (Automatic Network Replenishment), Dual-VCA
  • ROIMain stream, sub-stream, and third stream respectively support four fixed areas.
General
  • MaterialAluminum alloy, PC, PC+ABS
  • DimensionsΦ 130.7 mm × 101.7 mm (Φ 5.15" × 4.00")
  • WeightApprox. 0.53 kg (1.17 lb)
  • Protection LevelIP66 standard, IK 10, surge protection, ±2kV Line to Gnd, ±1kV Line to Line, IEC61000-4-5
  • Power12 VDC, 1.5 A (Max. 10.9 W, including Max. 4.2 W for IR) PoE (802.3af), 36 to 57 VDC, 0.35 A (Max. 12.2 W, including max. 4.2 W for IR)
  • Working Temperature-20°C to 60°C (-4°F to 140°F)
  • Working Humidity≤ 90%

Firmware

Applied to:
DS-2DE2A404IW-DE3/W(2.8-12mm)(C)
For better user experience, we highly recommend you to update your device to the latest firmware asap.
