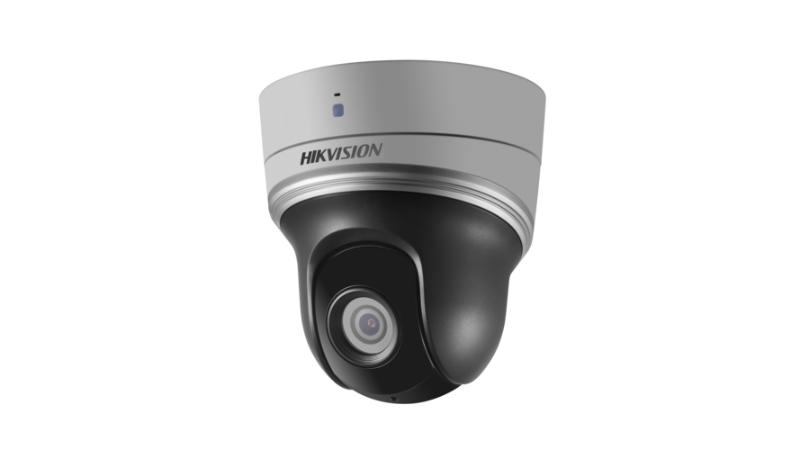

2MP 4X Outdoor IR WI-FI PTZ Camera

High quality imaging with 2 MP resolution
Clear imaging against strong back lighting thanks to 90 dB WDR technology
Pan and tilt ability enables camera to monitor zones of interest
4x optical zoom allows for closer viewing of subjects in expansive areas
Up to 20m IR range ensures safety at night.Wi-Fi connection and easy installation

View Less

Available models:

DS-2DE2204IW-DE3/W

EOL

Specification
Resources
Accessories

Lens
FOVHorizontal field of view: 100° to 25° (wide-tele),Vertical field of view: 56.3° to 14.1° (wide-tele),Diagonal field of view: 114.7° to 28.7° (wide-tele)
Zoom SpeedApprox. 2 s (optical lens, wide-tele)
Working Distance10 mm to 1500 mm (wide-tele)
Aperture RangeF1.8 to F2.5
Focal Length2.8 mm to 12 mm, 4× optical zoom

Image EnhancementHLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus
Sub-Stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Max. Resolution1920 × 1080
Main Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Third Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Network
Network StorageBuilt-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS), ANR
ProtocolsIPv4/IPv6, HTTP, HTTPS, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
APIONVIF (Profile S, Profile G, Profile T), ISAPI, SDK
Simultaneous Live ViewUp to 20 channels
User/HostUp to 32 users. ,3 levels: Administrator, Operator and User
ClientiVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
Web BrowserIE 8 to 11, Chrome 31.0+, Firefox 30.0+, Edge 16.16299+
Security MeasuresUser authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IP address filtering
Alarm LinkageAlarm actions, such as Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.
Wi-FiSupport

Interface
Alarm Output1-ch alarm output
Alarm Input1-ch alarm input
Audio Input1-ch audio input
Audio Output1-ch audio output
Network Interface1 RJ45 10 M/100 M Ethernet Interface; PoE (802.3af, class3)

Compression Standard
H.264+Support
H.265+Support
H.264 TypeBaseline Profile/Main Profile/High Profile
Video CompressionMain Stream: H.265+/H.265/H.264+/H.264,Sub-Stream: H.265/H.264/MJPEG,Third Stream: H.265/H.264/MJPEG
H.265 TypeMain Profile
Video Bitrate32 Kbps to 16384 Kbps
SVCSupport

Camera Module
AGCAuto/Manual
Image Sensor1/2.8" progressive scan CMOS
Min. IlluminationColor: 0.05 Lux @(F2.0, AGC ON),B/W: 0.005 Lux @(F2.0, AGC ON),0 Lux with IR
White BalanceAuto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
Shutter Time1/1 s to 1/30,000 s
Day & NightIR Cut Filter
Digital Zoom4×
Privacy Mask8 programmable privacy masks
Focus ModeAuto/Semi-automatic/Manual
Digital WDRSupport

Supplement Light
IR DistanceUp to 20 m
IR IntensityAutomatically adjusted, depending on the zoom ratio

PTZ
Movement Range (Pan)350°
Pan SpeedConfigurable, from 0.1°/s to 60°/s,Preset Speed: 60°/s
Movement Range (Tilt)From 0° to 90°
Tilt SpeedConfigurable, from 0.1°/s to 50°/s,Preset Speed: 50°/s
Proportional ZoomSupport
Presets300
Patrol Scan8 patrols, up to 32 presets for each patrol
Power-off MemorySupport
Park ActionPreset/Patrol Scan
PTZ Status DisplaySupport
Preset FreezingSupport
Scheduled TaskPreset/Patrol /Dome Reboot/Dome Adjust/Aux Output

Smart Features
Basic Event DetectionMotion Detection, Video Tampering Detection
Smart DetectionIntrusion Detection, Line Crossing Detection, Audio Exception Detection
ROIMain stream, sub-stream and third stream respectively support two fixed areas.

General
MaterialADC12 PC PC+ABS SUS304 POM
DimensionsΦ 125 mm × 136.7 mm (Φ 4.92" × 5.38")
WeightApprox. 0.65 kg (1.43 lb)
Protection LevelTVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
Power12 VDC and PoE (802.3af, class3),Max.: 9 W (IR light 3 W Max.)
Working TemperatureWorking Temperature: -10°C to 50°C (14°F to 122°F)
Working HumidityWorking Humidity: ≤ 90%
