DS-2DF8C260I5XS-AELW(T2)
EOL
Add to Favorites

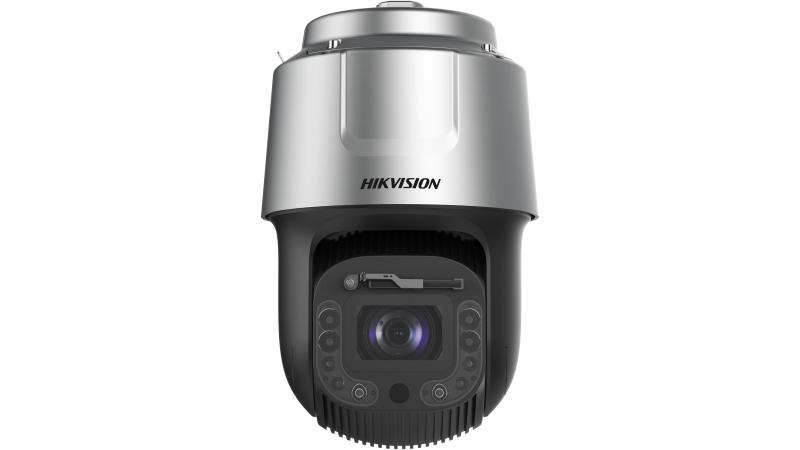

8-inch 2 MP 60X DarkFighter Laser Network Speed Dome
- 1/1.8" progressive scan CMOS
- Up to 1920 × 1080 resolution
- Color: 0.002Lux @ (F1.5, AGC ON), B/W: 0.0002Lux @ (F1.5, AGC ON)
- 60× optical zoom, 16× digital zoom
- 140 dB WDR, 3D DNR, EIS, OIS, HLC, Smart IR
- Up to 500 m laser distance
- Support H.265+/H.265 video compression
- Support Rapid focus
- IP67
- Support detecting up to 30 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face.
- Support vehicle detection (license plate number,vehicle model, and vehicle color recognition)
- Person arming: supports real-time modeling and comparison, arms and tracks predefined persons
- Vehicle arming: supports vehicle detection and license plate recognition, arms and tracks predefined vehicles
DS-2DF8C260I5XS-AELW(T2)
EOL
- Camera
- Image Sensor1/1.8＂ progressive scan CMOS
- Min. IlluminationColor: 0.002 Lux @ (F1.5, AGC ON), B/W: 0.0002 Lux @ (F1.5, AGC ON)
- Shutter Speed1/1 s to 1/30,000 s
- Slow Shutteryes
- Focusauto;manual;semi-auto
- Day & NightICR
- Day/Night Switchday, night, auto, scheduled-switch
- BLCyes
- WDRyes
- HLCyes
- 3D DNRyes
- Defogyes
- EISyes
- OISyes
- Regional Exposureyes
- Regional Focusyes
- Image Settingssaturation;brightness;contrast;sharpness
- Image Parameters Switchyes
- White Balanceauto;MWB;ATW;indoor;outdoor;fluorescent lamp;sodium lamp
- Digital Zoom16x
- Optical Zoom60×
- Privacy Maskup to 24 masks;mask color configurable;rectangle region ;mosaic mask
- SNR≥52dB
- Optical Defogyes
- Lens
- Focal Length6.0 to 360 mm, 60 × Optical
- Zoom Speedapprox. 5 s
- FOV Horizontal field of view: 60.0° to 2.0° (wide-tele),
Vertical field of view: 35.8° to 1.2° (wide-tele),
Diagonal field of view: 67.0° to 2.4° (wide-tele)
- ApertureF1.5
- Illuminator
- Laser Distance500 m
- Smart IRyes
- PTZ
- Movement Range (Pan)360°
- Movement Range (Tilt) -20° to 90° (auto flip)
- Pan Speedpan speed: configurable from 0.1° to 210°/s; preset speed: 280°/s
- Tilt Speedtilt speed: configurable from 0.1° to 150°/s, preset speed 250°/s
- Proportional Zoomyes
- Presets300
- Patrol Scan8 patrols, up to 32 presets for each patrol
- Pattern Scan4 pattern scans, record time over 10 minutes for each scan
- Power-off Memoryyes
- Park ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
- 3D Positioningyes
- PTZ Status Displayyes
- Preset Freezingyes
- Scheduled Taskpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux output
- Video
- Max. Resolution1920 × 1080
- Main Stream50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720);
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
- Sub-Stream50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
- Third Stream50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
- Video CompressionH.265;H.264;MJPEG
- Video Bit Rate32 Kbps to 16384 Kbps
- H.264 Typebaseline profile;main profile;high profile
- H.265 Typemain profile
- H.264+yes
- H.265+yes
- SVCyes
- ROIdynamic face tracking;fixed region;dynamic license plate tracking
- Audio
- Audio CompressionG.711alaw;G.711ulaw;G.722.1;G.726;MP2L2;PCM
- Audio Bit rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 128 Kbps(MP2L2)
- Smart Features
- Multi-target-type Detectionsupport face and human body capture, and output linked information
- Face CaptureSupport detecting up to 30 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face.
- Face Comparisonyes
- Basic Eventaudio exception;motion detection;video tampering alarm;exception;video tampering alarm;alarm output;alarm input
- Smart Eventintrusion detection;line crossing detection;region entrance detection;region exiting detection;unattended baggage detection;object removal detection;vandal-proof alarm
- Smart Trackingmanual tracking;event tracking;support patrol tracking among multiple detection scenes;auto-tracking
- Smart RecordANR;Dual-VCA
- Alarm Linkagepreset;patrol scan;pattern scan;memory card video recording;alarm output;sending email;notify surveillance center; upload to FTP;NAS video recording
- Smart EncodingROI;SVC;H.265+;H.264+;low bit rate
- Network
- Network StorageNAS (NFS, SMB/ CIFS)
- ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
- APIOpen-ended API;ONVIF; ISAPI;Hikvision SDK;Third-party management platform;ISUP;Hik-Connect
- Simultaneous Live View20
- User/Host32
- Security MeasuresAuthenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filter
- ClientiVMS-4200;Hik-Connect;Hikcentral
- Web BrowserIE10-11, Chrome 57+, Firefox 52+, Safari 12+
- Interface
- Power Outputno
- Communication InterfaceSelf-adaptive 10M/100M Ethernet port
- Fiber Interfaceno
- On-board Storagesupport microSD/microSDHC/microSDXC cards, up to 256 GB
- Alarm Input7 alarm inputs
- Alarm Output2 alarm output
- Audio Input1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
- Audio Output1 audio output, line level, impedance: 600 Ω
- RS-485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive
- General
- Operating ConditionTemperature: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 95%
- Power Consumption and Current24 VAC (Max. 62 W, including max. 12 W for IR and max. 8 W for heater), PoE 802.3 bt (Max. 51 W, including max. 12 W for IR and max. 8 W for heater)
- WiperYes. Rain-sensing auto control
- DimensionsØ 267 mm × 430 mm (Ø 10.51" × 16.93")
- WeightApprox. 9.6 kg (21.16 lb.)
- Approval
- ProtectionIP67 Standard, 6000V Lightning Protection, Surge Protection and Voltage Tr
