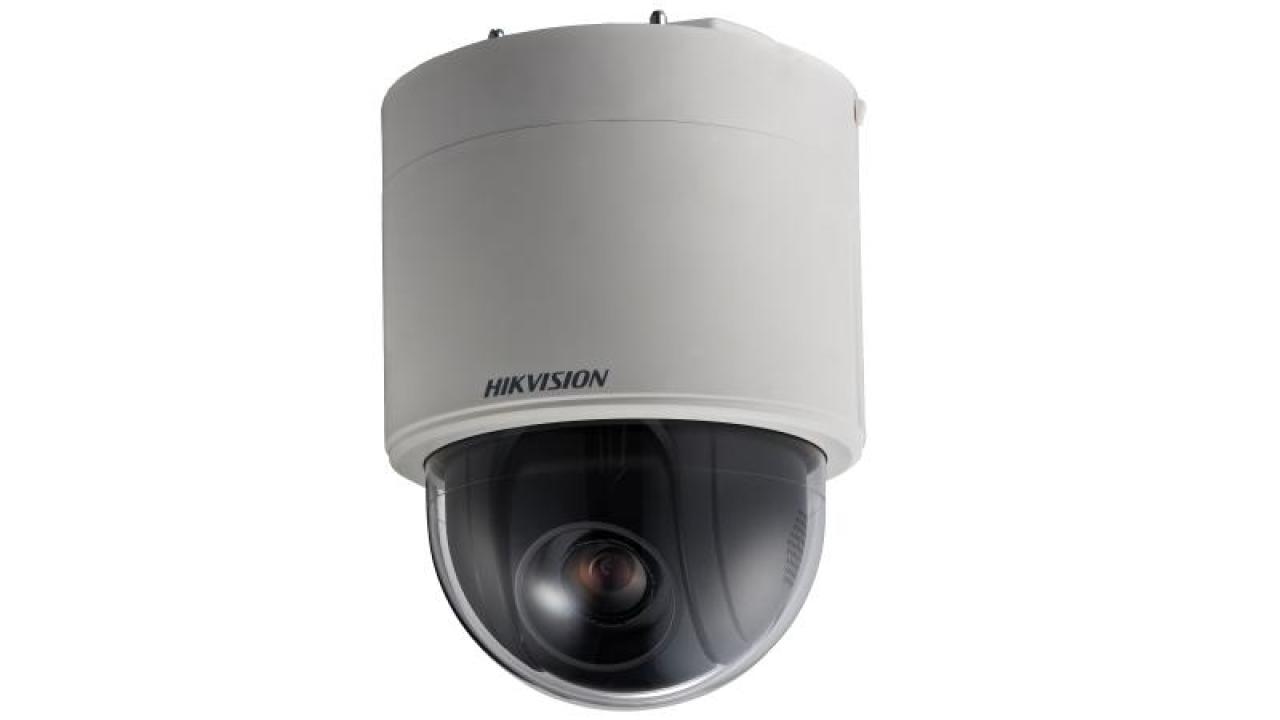

DS-2DF5225X-AE3

EOL

5-inch 2 MP 25X DarkFighter Network Speed Dome

High quality imaging with 2 MP resolution
25x optical zoom provides close up views over expansive areas
Intelligent functions based on deep learning
Save time by tracking important targets automatically
Vandal proof (IK10).

View Less

Available models:

DS-2DF5225X-AE3(D)

Lens
FOVHorizontal field of view: 58.4° to 2.7° (wide-tele),Vertical field of view: 33.8° to 1.5° (wide-tele),Diagonal field of view: 65.6° to 3.1° (wide-tele)
Zoom SpeedApprox. 4.8 s (optical lens, wide-tele)
Working Distance10 mm to 1500 mm (wide-tele)
Aperture RangeF1.2 to F2.8
Focal Length4.8 mm to 120 mm, 25× Optical

Network
ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour
APIONVIF (Profile S, Profile G, Profile T), ISAPI, SDK
Simultaneous Live ViewUp to 20 channels
User/HostUp to 32 users,3 levels: Administrator, Operator and User,
Security MeasuresUser authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering

Interface
BNC1.0V [p-p]/75 Ω, NTSC (or PAL) composite
Alarm Output2-ch alarm output
Alarm Input7-ch alarm input
Audio Input1-ch audio input, 2 to 2.4 V[p-p], 1 KΩ ± 10%
Audio Output1-ch audio output, line level, impedance: 600 Ω
RS-485HIKVISION, Pelco-P, Pelco-D, self-adaptive
StorageBuilt-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR

Smart Feature
Event DetectionUnattended Baggage Detection, Object Removal Detection, Face Detection, Audio Exception Detection
Smart RecordANR (Automatic Network Replenishment), Dual-VCA
Perimeter ProtectionIntrusion, Line Crossing, Region Entrance, Region Exiting,Support alarm triggering by specified target types (human and vehicle),Filtering out mistaken alarm caused by target types such as leaf, light, animal, and flag, etc.

Camera Module
AGCAuto/Manual
Regional ExposureYes
Regional FocusYes
Image Sensor1/2.8" progressive scan CMOS
Min. IlluminationColor: 0.002 Lux @(F1.2, AGC ON),B/W: 0.0002 Lux @(F1.2, AGC ON),
Day & NightIR cut filter
Digital Zoom16×
Privacy Mask24 programmable polygon privacy masks
Focus ModeAuto/Semi-automatic/Manual
WDR120 dB
BLCYes
HLCYes
Optical DefogYes

PTZ
Movement Range (Pan)360° endless
Pan SpeedConfigurable, from 0.1°/s to 300°/s, Preset Speed: 540°/s
Movement Range (Tilt)From -5° to 90°
Tilt SpeedConfigurable, from 0.1°/s to 240°/s, Preset Speed: 400°/s
Proportional ZoomYes
Presets300
Patrol Scan8 patrols, up to 32 presets for each patrol
Pattern Scan4 pattern scans, record time over 10 minutes for each scan
Power-off MemoryYes
Park ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
3D PositioningYes
PTZ Status DisplayYes
Preset FreezingYes

Smart Features
Smart TrackingManual Tracking, Auto Tracking (support tracking specified target types such as human and vehicle), Event Tracking
ROIEight fixed regions for each stream

General
DimensionsΦ 220 mm × 302 mm (Φ 8.66" × 11.89") (Outdoor),Φ 245.1 mm × 239 mm (Φ 9.65" × 9.41") (Indoor),
WeightApprox. 4 kg (8.82 lb) (Outdoor),Approx. 3.4 kg (7.50 lb) (Indoor),
Protection LevelIP66 Standard (Outdoor), IK10, 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
Power 24 VAC (max. 25 W), Hi-PoE (max. 25 W)
Working Temperature,-10°C to 50°C (14°F to 122°F)
Working Humidity≤ 90%
