EOL

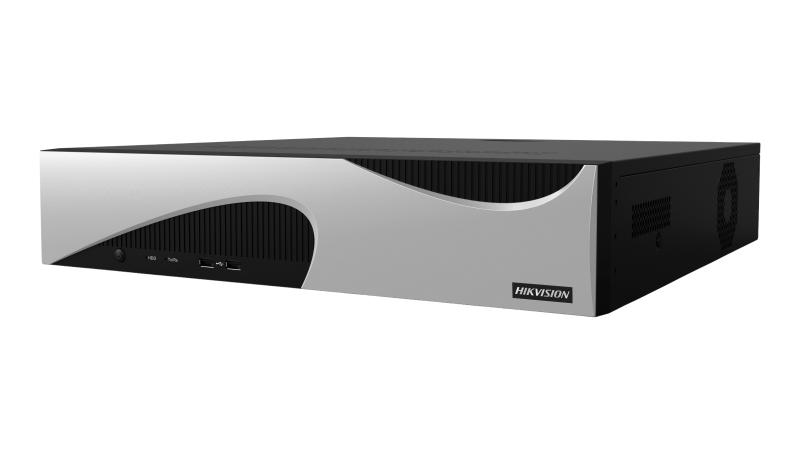

Pro Series 8-Slot Workstation for Windows

  • Pro series, [33,128] -ch, pre-installed OS Windows 10, single board, 8HDD
  • Unique module featuring the strengths of outstanding hardware development
  • Configurable alarm I/O and PoE interfaces for third-party integration
  • Multiple models with corresponding hardware such as CPU and memory, able to provide for a host of applications
  • Advanced industrial design and intuitive user interfaces
  • Extensive experience in hardware development and OEM services
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-WSPWI-T8
DS-WSPWI-T8
EOL
Data Sheet

Specification

  • System
  • ProcessorIntel® Xeon® Processor E3-1225 v5, 3.30GHz,Optional:G4400 3M Cache,3.30GHz;, i3-6100 3M Cache,3.70GHz;, i5-6500 6M Cache,3.20GHz;, i7-6700 8M Cache,3.40GHz
  • Memory2 Memory Slots, 2 x 4 GB ；Optional: 4 x 8 GB
  • Graphics cardIntel® HD Graphics
  • PCIe slot1 PCIe x16
  • Operating systemWin10 IoT Ent LTSB 2016 Entry EPKEA, 64 bit
  • External interface
  • USB interfaceFront panel: 2 × USB 2.0; Rear panel: 4 × USB 3.0,
  • LAN2 × RJ45 10M/100M/1000M self-adaptive Ethernet interface,Optional: 4 × RJ45 10M/100M/1000M self-adaptive Ethernet interface
  • Serial interfaceRS-232; RS-485,
  • Alarm Input / OutputOptional: 16/4
  • Storage
  • System disk (OS, VMS)mSATA 64GB,Optional: mSATA 128GB,
  • SATA interface8 SATA interfaces
  • Capacity1TB/2TB/3TB/4TB/5TB/6TB/8TB/10TB capacity for each disk
  • RAID cardOptional
  • TPM encryption boardOptional
  • Video/Audio output
  • HDMI interface4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 ×,1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,
  • Audio input1-ch, 3.5 mm audio connector
  • Audio output1-ch, 3.5 mm audio connector
  • VGA interface1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • General
  • Consumption (without hard disk)≤ 30 W
  • Power supply100 to 240 VAC, 50 to 60 Hz
  • Working temperature0 to +45° C (+32 to +113° F),
  • Working humidity10 to 90 % (Non-condensing)
  • Dimensions (W × D × H)445 × 470 × 90 mm (17.5"× 18.5" × 3.5")
  • Weight (without hard disk)≤ 8 kg (17.6 lb)
  • Chassis19-inch rack-mounted 2U chassis
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

System
Processor
Intel® Xeon® Processor E3-1225 v5, 3.30GHz,Optional:G4400 3M Cache,3.30GHz;, i3-6100 3M Cache,3.70GHz;, i5-6500 6M Cache,3.20GHz;, i7-6700 8M Cache,3.40GHz
Memory
2 Memory Slots, 2 x 4 GB ；Optional: 4 x 8 GB
Graphics card
Intel® HD Graphics
PCIe slot
1 PCIe x16
Operating system
Win10 IoT Ent LTSB 2016 Entry EPKEA, 64 bit
External interface
USB interface
Front panel: 2 × USB 2.0; Rear panel: 4 × USB 3.0,
LAN
2 × RJ45 10M/100M/1000M self-adaptive Ethernet interface,Optional: 4 × RJ45 10M/100M/1000M self-adaptive Ethernet interface
Serial interface
RS-232; RS-485,
Alarm Input / Output
Optional: 16/4
Storage
System disk (OS, VMS)
mSATA 64GB,Optional: mSATA 128GB,
SATA interface
8 SATA interfaces
Capacity
1TB/2TB/3TB/4TB/5TB/6TB/8TB/10TB capacity for each disk
RAID card
Optional
TPM encryption board
Optional
Video/Audio output
HDMI interface
4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 ×,1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,
Audio input
1-ch, 3.5 mm audio connector
Audio output
1-ch, 3.5 mm audio connector
VGA interface
1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
General
Consumption (without hard disk)
≤ 30 W
Power supply
100 to 240 VAC, 50 to 60 Hz
Working temperature
0 to +45° C (+32 to +113° F),
Working humidity
10 to 90 % (Non-condensing)
Dimensions (W × D × H)
445 × 470 × 90 mm (17.5"× 18.5" × 3.5")
Weight (without hard disk)
≤ 8 kg (17.6 lb)
Chassis
19-inch rack-mounted 2U chassis
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
System
  • ProcessorIntel® Xeon® Processor E3-1225 v5, 3.30GHz,Optional:G4400 3M Cache,3.30GHz;, i3-6100 3M Cache,3.70GHz;, i5-6500 6M Cache,3.20GHz;, i7-6700 8M Cache,3.40GHz
  • Memory2 Memory Slots, 2 x 4 GB ；Optional: 4 x 8 GB
  • Graphics cardIntel® HD Graphics
  • PCIe slot1 PCIe x16
  • Operating systemWin10 IoT Ent LTSB 2016 Entry EPKEA, 64 bit
External interface
  • USB interfaceFront panel: 2 × USB 2.0; Rear panel: 4 × USB 3.0,
  • LAN2 × RJ45 10M/100M/1000M self-adaptive Ethernet interface,Optional: 4 × RJ45 10M/100M/1000M self-adaptive Ethernet interface
  • Serial interfaceRS-232; RS-485,
  • Alarm Input / OutputOptional: 16/4
Storage
  • System disk (OS, VMS)mSATA 64GB,Optional: mSATA 128GB,
  • SATA interface8 SATA interfaces
  • Capacity1TB/2TB/3TB/4TB/5TB/6TB/8TB/10TB capacity for each disk
  • RAID cardOptional
  • TPM encryption boardOptional
Video/Audio output
  • HDMI interface4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 ×,1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,
  • Audio input1-ch, 3.5 mm audio connector
  • Audio output1-ch, 3.5 mm audio connector
  • VGA interface1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
General
  • Consumption (without hard disk)≤ 30 W
  • Power supply100 to 240 VAC, 50 to 60 Hz
  • Working temperature0 to +45° C (+32 to +113° F),
  • Working humidity10 to 90 % (Non-condensing)
  • Dimensions (W × D × H)445 × 470 × 90 mm (17.5"× 18.5" × 3.5")
  • Weight (without hard disk)≤ 8 kg (17.6 lb)
  • Chassis19-inch rack-mounted 2U chassis
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
