EOL

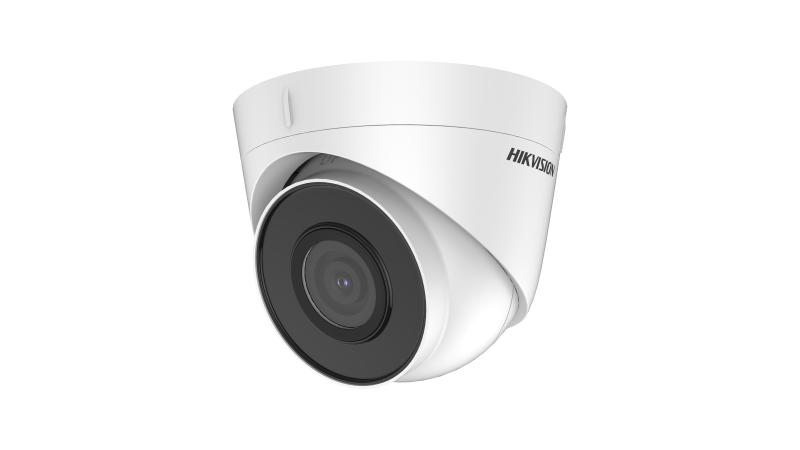

4 MP Fixed Turret Network Camera

  • High quality imaging with 4 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light with 120 dB WDR
  • Water and dust resistant (IP67)
  • EXIR 2.0, advanced infrared technology with long IR distance
View Less
View more

Available models:

DS-2CD1343G0E-I(4mm)

Specification

  • Camera
  • Image Sensor1/3" Progressive Scan CMOS
  • Min. IlluminationColor: 0.028 Lux @ (F2.0, AGC ON)
  • Shutter Speed1/3 s to 1/100,000 s
  • Slow ShutterYes
  • Day &NightIR Cut Filter
  • Wide Dynamic RangeDigital WDR
  • Angle AdjustmentPan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
  • Lens
  • LensFixed lens, 2.8/4 mm
  • ApertureF2.0
  • FOV2.8 mm, horizontal FOV 100°, vertical FOV 55°, diagonal FOV 117° 4 mm, horizontal FOV 77°, vertical FOV 42°, diagonal FOV 88°
  • Lens MountM12
  • Illuminator
  • IR RangeUp to 30 m
  • Wavelength850nm
  • Video
  • Max. Resolution2560 × 1440
  • Main Stream50Hz: 20fps (2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720) 60Hz: 20fps (2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)
  • Sub Stream50Hz: 20fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 20fps (640 × 480, 640 × 360, 320 × 240)
  • Video CompressionMain stream: H.265+/H.264+/H.265/H.264 Sub-stream: H.265/H.264/MJPEG
  • H.264 TypeBaseline Profile/Main Profile
  • H.265 TypeMain Profile
  • Video Bit Rate32 Kbps to 8 Mbps
  • Smart Feature-Set
  • Basic EventMotion detection, video tampering alarm, exception (illegal login)
  • Region of Interest1 fixed region for main stream
  • Linkage MethodUpload to FTP, notify surveillance center, send email
  • Image
  • Image EnhancementBLC, HLC, 3D DNR
  • Image SettingSaturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser
  • Day/Night SwitchDay/Night/Auto/Schedule
  • SNR> 50dB
  • Network
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
  • APIONVIF (PROFILE S), ISAPI, SDK
  • SecurityPassword protection, complicated password, IP address filter, Watermark, HTTPS encryption, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, 802.1X authentication (EAP-MD5)
  • Simultaneous Live ViewUp to 6 channels
  • User/HostUp to 32 users,3 levels: Administrator, Operator and User
  • ClientiVMS-4200, Hik-Connect, Hik-Central
  • Web BrowserIE8+, Chrome 41.0-44, Firefox30.0-51, Safari8.0-11
  • Interface
  • Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
  • Approval
  • EMC47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015
  • SafetyUL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015, IEC/EN 60950-1
  • Chemistry2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006
  • ProtectionIngress protection: IP67 (IEC 60529-2013)
  • General
  • General FunctionAnti-flicker, heartbeat, mirror, privacy mask
  • ResetReset via web browser and client software
  • Startup and Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
  • Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
  • Power Supply12 VDC ± 25%, Φ 5.5 mm coaxial power plug, reverse polarity protection; PoE (802.3af, class 3)
  • Power Consumption and Current12 VDC, 0.34 A, max. 4 W; PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 5 W
  • MaterialCamera body: metal, bottom base: plastic
  • DimensionsCamera: Φ110 mm × 94.4 mm (Φ4.3" × 3.7") With package: 150 × 150 × 141 mm (5.9" × 5.9" × 5.6")
  • WeightCamera: approx. 360 g (0.8 lb.) With package: approx. 580 g (1.3 lb.)

Specification

Specification
Camera
  • Image Sensor1/3" Progressive Scan CMOS
  • Min. IlluminationColor: 0.028 Lux @ (F2.0, AGC ON)
  • Shutter Speed1/3 s to 1/100,000 s
  • Slow ShutterYes
  • Day &NightIR Cut Filter
  • Wide Dynamic RangeDigital WDR
  • Angle AdjustmentPan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
  • LensFixed lens, 2.8/4 mm
  • ApertureF2.0
  • FOV2.8 mm, horizontal FOV 100°, vertical FOV 55°, diagonal FOV 117° 4 mm, horizontal FOV 77°, vertical FOV 42°, diagonal FOV 88°
  • Lens MountM12
Illuminator
  • IR RangeUp to 30 m
  • Wavelength850nm
Video
  • Max. Resolution2560 × 1440
  • Main Stream50Hz: 20fps (2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720) 60Hz: 20fps (2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)
  • Sub Stream50Hz: 20fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 20fps (640 × 480, 640 × 360, 320 × 240)
  • Video CompressionMain stream: H.265+/H.264+/H.265/H.264 Sub-stream: H.265/H.264/MJPEG
  • H.264 TypeBaseline Profile/Main Profile
  • H.265 TypeMain Profile
  • Video Bit Rate32 Kbps to 8 Mbps
Smart Feature-Set
  • Basic EventMotion detection, video tampering alarm, exception (illegal login)
  • Region of Interest1 fixed region for main stream
  • Linkage MethodUpload to FTP, notify surveillance center, send email
  • Image EnhancementBLC, HLC, 3D DNR
  • Image SettingSaturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser
  • Day/Night SwitchDay/Night/Auto/Schedule
  • SNR> 50dB
Network
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
  • APIONVIF (PROFILE S), ISAPI, SDK
  • SecurityPassword protection, complicated password, IP address filter, Watermark, HTTPS encryption, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, 802.1X authentication (EAP-MD5)
  • Simultaneous Live ViewUp to 6 channels
  • User/HostUp to 32 users,3 levels: Administrator, Operator and User
  • ClientiVMS-4200, Hik-Connect, Hik-Central
  • Web BrowserIE8+, Chrome 41.0-44, Firefox30.0-51, Safari8.0-11
Interface
  • Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
Approval
  • EMC47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015
  • SafetyUL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015, IEC/EN 60950-1
  • Chemistry2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006
  • ProtectionIngress protection: IP67 (IEC 60529-2013)
General
  • General FunctionAnti-flicker, heartbeat, mirror, privacy mask
  • ResetReset via web browser and client software
  • Startup and Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
  • Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
  • Power Supply12 VDC ± 25%, Φ 5.5 mm coaxial power plug, reverse polarity protection; PoE (802.3af, class 3)
  • Power Consumption and Current12 VDC, 0.34 A, max. 4 W; PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 5 W
  • MaterialCamera body: metal, bottom base: plastic
  • DimensionsCamera: Φ110 mm × 94.4 mm (Φ4.3" × 3.7") With package: 150 × 150 × 141 mm (5.9" × 5.9" × 5.6")
  • WeightCamera: approx. 360 g (0.8 lb.) With package: approx. 580 g (1.3 lb.)

Firmware

Applied to:
DS-2CD1343G0E-I(4mm)
