EOL

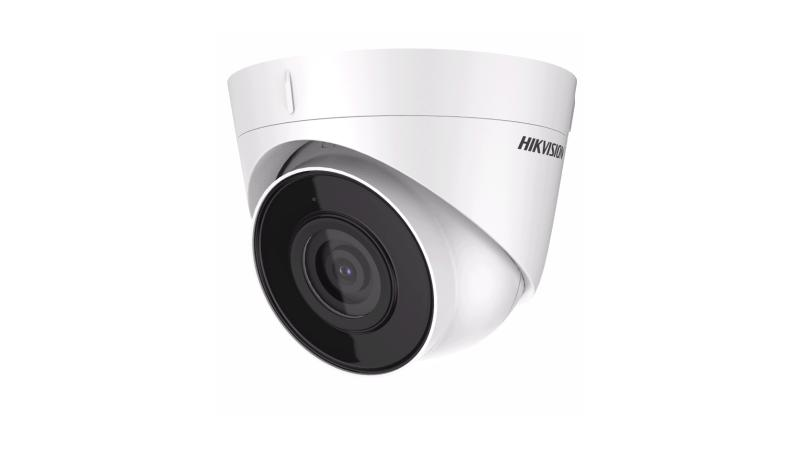

2 MP Build-in Mic Fixed Turret Network Camera

  • key
View Less
View more

Available models:

DS-2CD1323G0-IU(2.8mm)
DS-2CD1323G0-IU(4mm)

Specification

  • Camera
  • Image Sensor1/2.8" Progressive Scan CMOS
  • Min. IlluminationColor: 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR
  • Shutter Speed1/3 s to 1/100,000 s
  • Slow ShutterYes
  • Day &NightIR cut filter
  • Wide Dynamic RangeDigital WDR
  • Lens
  • LensFixed lens, 2.8/4 mm
  • Auto-IrisNo
  • ApertureF2.0
  • FOV2.8mm: Horizontal FOV: 114°, vertical FOV: 62°, diagonal FOV: 135° ;4 mm: Horizontal FOV: 86°, vertical FOV: 46°, diagonal FOV: 102°
  • Lens MountM12
  • Illuminator
  • IR RangeUp to 30 m
  • Wavelength850 nm
  • Video
  • Max. Resolution1920 × 1080
  • Video CompressionMain stream: H.265+/H.265/H.264+/H.264;Sub-stream: H.265/H.264/MJPEG
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • Video Bit Rate32 Kbps to 8 Mbps
  • Smart Feature-Set
  • Region of Interest1 fixed region for main stream and sub-stream
  • Image
  • Image EnhancementBLC, 3D DNR
  • Image SettingRotate mode, saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser
  • Day/Night SwitchDay/Night/Auto/Schedule
  • Main Stream Max. Frame Rate50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720);60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • Sub-stream Max. Frame Rate50Hz: 25fps (640 × 480, 640 × 360, 320 × 240);60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
  • Network
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
  • APIONVIF (PROFILE S, PROFILE G), ISAPI
  • Simultaneous Live ViewUp to 6 channels
  • User/HostUp to 32 users,3 levels: Administrator, Operator, and User
  • ClientiVMS-4200, Hik-Connect, iVMS-5200
  • Web BrowserIE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11
  • Alarm TriggerMotion detection, video tampering alarm, illegal login
  • Interface
  • Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
  • General
  • Firmware Version5.5.83
  • General FunctionOne-key reset, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
  • Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
  • Power Supply12 VDC ± 25%, Φ 5.5 mm coaxial power plug; PoE (802.3af, class 0)
  • MaterialCamera body: metal, bottom base : plastic
  • DimensionsCamera: 94.4 × Φ110 mm (3.7" × Φ4.3") ;With package: 150 × 150 × 141 mm (5.9" × 5.9" × 5.6")
  • WeightCamera: Approx. 354 g (0.8 lb.) ;With package: Approx. 681 g (1.5 lb.)
  • Power Consumption and Current12 VDC, 0.4 A, max. 5 W; PoE (802.3af, 36 V to 57 V), 0.20 A to 0.10 A, max. 6.5 W
  • Interface ProtectionIngress protection: IP66 (IEC 60529-2013)

Specification

Specification
Camera
  • Image Sensor1/2.8" Progressive Scan CMOS
  • Min. IlluminationColor: 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR
  • Shutter Speed1/3 s to 1/100,000 s
  • Slow ShutterYes
  • Day &NightIR cut filter
  • Wide Dynamic RangeDigital WDR
Lens
  • LensFixed lens, 2.8/4 mm
  • Auto-IrisNo
  • ApertureF2.0
  • FOV2.8mm: Horizontal FOV: 114°, vertical FOV: 62°, diagonal FOV: 135° ;4 mm: Horizontal FOV: 86°, vertical FOV: 46°, diagonal FOV: 102°
  • Lens MountM12
Illuminator
  • IR RangeUp to 30 m
  • Wavelength850 nm
Video
  • Max. Resolution1920 × 1080
  • Video CompressionMain stream: H.265+/H.265/H.264+/H.264;Sub-stream: H.265/H.264/MJPEG
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • Video Bit Rate32 Kbps to 8 Mbps
Smart Feature-Set
  • Region of Interest1 fixed region for main stream and sub-stream
  • Image EnhancementBLC, 3D DNR
  • Image SettingRotate mode, saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser
  • Day/Night SwitchDay/Night/Auto/Schedule
  • Main Stream Max. Frame Rate50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720);60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • Sub-stream Max. Frame Rate50Hz: 25fps (640 × 480, 640 × 360, 320 × 240);60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Network
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
  • APIONVIF (PROFILE S, PROFILE G), ISAPI
  • Simultaneous Live ViewUp to 6 channels
  • User/HostUp to 32 users,3 levels: Administrator, Operator, and User
  • ClientiVMS-4200, Hik-Connect, iVMS-5200
  • Web BrowserIE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11
  • Alarm TriggerMotion detection, video tampering alarm, illegal login
Interface
  • Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
General
  • Firmware Version5.5.83
  • General FunctionOne-key reset, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
  • Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
  • Power Supply12 VDC ± 25%, Φ 5.5 mm coaxial power plug; PoE (802.3af, class 0)
  • MaterialCamera body: metal, bottom base : plastic
  • DimensionsCamera: 94.4 × Φ110 mm (3.7" × Φ4.3") ;With package: 150 × 150 × 141 mm (5.9" × 5.9" × 5.6")
  • WeightCamera: Approx. 354 g (0.8 lb.) ;With package: Approx. 681 g (1.5 lb.)
  • Power Consumption and Current12 VDC, 0.4 A, max. 5 W; PoE (802.3af, 36 V to 57 V), 0.20 A to 0.10 A, max. 6.5 W
  • Interface ProtectionIngress protection: IP66 (IEC 60529-2013)

Download Center

Firmware

Applied to:
DS-2CD1323G0-IU(2.8mm)
DS-2CD1323G0-IU(4mm)
For better user experience, we highly recommend you to update your device to the latest firmware asap.
