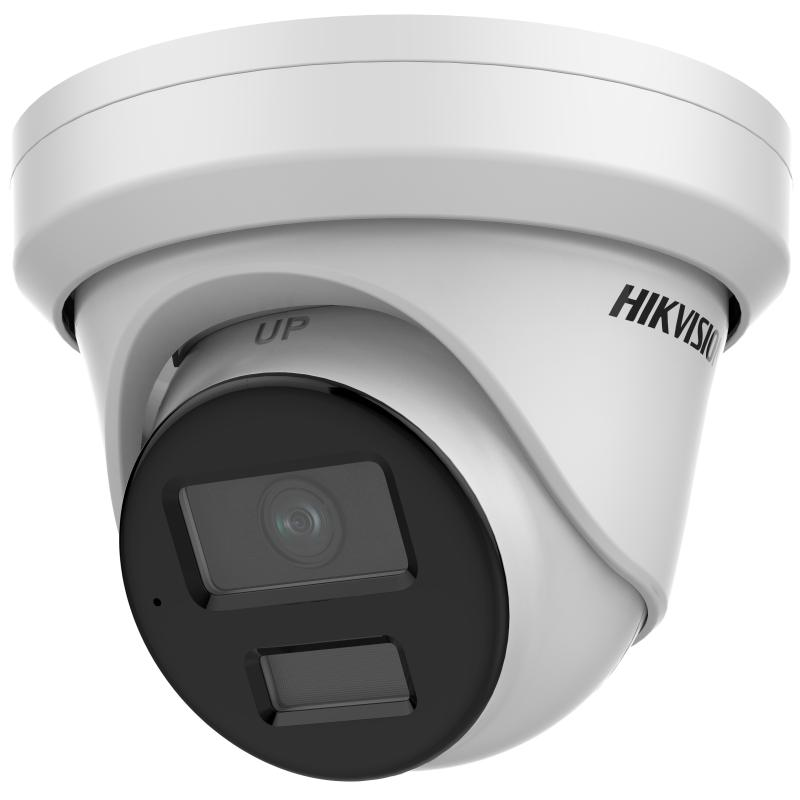

6 MP AcuSense Fixed Turret Network Camera

  • Supports Hikvision Embedded Open Platform (HEOP) and importing third party applications
  • Supports 1.5 Tops computing power, 40 MB system memory, 350 MB smart RAM, and 2 GB eMMC storage for sharing resources
  • High quality imaging with 6 MP resolution
  • Excellent low-light performance with powered-by-DarkFighter technology
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • Focus on human and vehicle targets classification based on deep learning
  • Water and dust resistant (IP67)

View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-2CD3366G2-ISU(2.8mm)(H)
DS-2CD3366G2-ISU(4mm)(H)
DS-2CD3366G2-ISU(6mm)(H)
DS-2CD3366G2-IS(2.8mm)(H)
DS-2CD3366G2-IS(4mm)(H)
DS-2CD3366G2-IS(6mm)(H)
DS-2CD3366G2-IS(U)
Data Sheet

Specification

  • Camera
  • Image Sensor1/2.4" Progressive Scan CMOS
  • Max. Resolution3200 × 1800
  • Min. IlluminationColor: 0.003 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
  • Day & NightIR cut filter
  • Angle AdjustmentPan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
  • Shutter Time1/3 s to 1/100,000 s
  • Lens
  • Focal Length & FOV2.8 mm: horizontal FOV 104°, vertical FOV 54°, diagonal FOV 127° 4 mm: horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96° 6 mm: horizontal FOV 50°, vertical FOV 26°, diagonal FOV 54°
  • Lens TypeFixed focal lens, 2.8, 4, and 6 mm optional
  • ApertureF1.6
  • Lens MountM12
  • Iris TypeFixed
  • DORI
  • DORI2.8 mm, D: 76 m, O: 30 m, R: 15 m, I: 7 m 4 mm, D: 115 m, O: 45 m, R: 23 m, I: 11 m 6 mm, D: 164 m, O: 65 m, R: 32 m, I: 16 m
  • Illuminator
  • IR Wavelength850 nm
  • Supplement Light RangeUp to 40 m
  • Smart Supplement LightYes
  • Supplement Light TypeIR
  • HEOP
  • Open ResourcesMemory: 40 MB, Smart RAM: 350 MB, eMMC: 2 GB
  • Computing Power1.5 TOPS
  • Open CapabilityHEOP 2.0 OpendevSDK
  • Deep Learning StructureCaffe,PyTorch,TensorFlow,PaddlePaddle,ONNX
  • Programming LanguageC,C++
  • Video
  • Main Stream50 Hz: 20 fps (3200 × 1800) 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (3200 × 1800) 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
  • Sub-Stream50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
  • Third Stream50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • Fourth Stream50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
  • Video Compression Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, Fourth stream: H.265/H.264/MJPEG
  • Video Bit Rate32 Kbps to 16 Mbps
  • H.264 TypeBaseline Profile,Main Profile,High Profile
  • H.265 TypeMain Profile
  • Bit Rate ControlCBR,VBR
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Region of Interest (ROI)5 fixed regions for main stream and sub-stream
  • Target CroppingYes
  • Audio
  • Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Environment Noise FilteringYes
  • Network
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, SRTP
  • Simultaneous Live ViewUp to 6 channels
  • APIONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
  • User/HostUp to 32 users 3 user levels: administrator, operator, and user
  • SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
  • Network StorageNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • ClientiVMS-4200,Hik-Connect,Hik-Central
  • Web BrowserPlug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
  • Image
  • Image Parameters SwitchYes
  • Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
  • Day/Night SwitchDay,Night,Auto,Schedule
  • Wide Dynamic Range (WDR)120 dB
  • Image EnhancementBLC,HLC,3D DNR,Defog
  • SNR≥ 52 dB
  • Privacy Mask4 programmable polygon privacy masks
  • Interface
  • Audio1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
  • Built-in Microphone-U: Yes
  • On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
  • Reset KeyYes
  • Alarm 1 input, 1 output (max. 12 VDC, 30 mA)
  • Power Output12 VDC, max. 100 mA
  • Event
  • Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
  • Smart EventScene change detection, audio exception detection, defocus detection
  • LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning
  • Deep Learning Function
  • Face CaptureYes
  • People CountingYes
  • Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
  • General
  • Power12 VDC ± 25%, 0.62 A, max. 7.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 9 W
  • MaterialMetal except for trim ring
  • DimensionØ127.3 mm × 96.3 mm (Ø5" × 3.8")
  • Package Dimension170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9")
  • WeightApprox. 630 g (1.4 lb.)
  • With Package WeightApprox. 830 g (1.8 lb.)
  • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • General FunctionHeartbeat,anti-banding,mirror,flash log,password reset via email,pixel counter
  • Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • Approval
  • EMCFCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
  • SafetyUL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
  • EnvironmentCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
  • ProtectionIP67: IEC 60529-2013
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Camera
Image Sensor
1/2.4" Progressive Scan CMOS
Max. Resolution
3200 × 1800
Min. Illumination
Color: 0.003 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
Shutter Time
1/3 s to 1/100,000 s
Lens
Focal Length & FOV
2.8 mm: horizontal FOV 104°, vertical FOV 54°, diagonal FOV 127° 4 mm: horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96° 6 mm: horizontal FOV 50°, vertical FOV 26°, diagonal FOV 54°
Lens Type
Fixed focal lens, 2.8, 4, and 6 mm optional
Aperture
F1.6
Lens Mount
M12
Iris Type
Fixed
DORI
DORI
2.8 mm, D: 76 m, O: 30 m, R: 15 m, I: 7 m 4 mm, D: 115 m, O: 45 m, R: 23 m, I: 11 m 6 mm, D: 164 m, O: 65 m, R: 32 m, I: 16 m
Illuminator
IR Wavelength
850 nm
Supplement Light Range
Up to 40 m
Smart Supplement Light
Yes
Supplement Light Type
IR
HEOP
Open Resources
Memory: 40 MB, Smart RAM: 350 MB, eMMC: 2 GB
Computing Power
1.5 TOPS
Open Capability
HEOP 2.0 OpendevSDK
Deep Learning Structure
Caffe,PyTorch,TensorFlow,PaddlePaddle,ONNX
Programming Language
C,C++
Video
Main Stream
50 Hz: 20 fps (3200 × 1800) 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (3200 × 1800) 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Fourth Stream
50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression
Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, Fourth stream: H.265/H.264/MJPEG
Video Bit Rate
32 Kbps to 16 Mbps
H.264 Type
Baseline Profile,Main Profile,High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR,VBR
Scalable Video Coding (SVC)
H.264 and H.265 encoding
Region of Interest (ROI)
5 fixed regions for main stream and sub-stream
Target Cropping
Yes
Audio
Audio Compression
G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering
Yes
Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, SRTP
Simultaneous Live View
Up to 6 channels
API
ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
User/Host
Up to 32 users 3 user levels: administrator, operator, and user
Security
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Network Storage
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client
iVMS-4200,Hik-Connect,Hik-Central
Web Browser
Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Parameters Switch
Yes
Image Settings
Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Day/Night Switch
Day,Night,Auto,Schedule
Wide Dynamic Range (WDR)
120 dB
Image Enhancement
BLC,HLC,3D DNR,Defog
SNR
≥ 52 dB
Privacy Mask
4 programmable polygon privacy masks
Interface
Audio
1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
Built-in Microphone
-U: Yes
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Reset Key
Yes
Alarm
1 input, 1 output (max. 12 VDC, 30 mA)
Power Output
12 VDC, max. 100 mA
Event
Basic Event
Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Smart Event
Scene change detection, audio exception detection, defocus detection
Linkage
Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning
Deep Learning Function
Face Capture
Yes
People Counting
Yes
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
General
Power
12 VDC ± 25%, 0.62 A, max. 7.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 9 W
Material
Metal except for trim ring
Dimension
Ø127.3 mm × 96.3 mm (Ø5" × 3.8")
Package Dimension
170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9")
Weight
Approx. 630 g (1.4 lb.)
With Package Weight
Approx. 830 g (1.8 lb.)
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
General Function
Heartbeat,anti-banding,mirror,flash log,password reset via email,pixel counter
Language
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Approval
EMC
FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
Safety
UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
Environment
CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Protection
IP67: IEC 60529-2013
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Camera
  • Image Sensor1/2.4" Progressive Scan CMOS
  • Max. Resolution3200 × 1800
  • Min. IlluminationColor: 0.003 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
  • Day & NightIR cut filter
  • Angle AdjustmentPan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
  • Shutter Time1/3 s to 1/100,000 s
Lens
  • Focal Length & FOV2.8 mm: horizontal FOV 104°, vertical FOV 54°, diagonal FOV 127° 4 mm: horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96° 6 mm: horizontal FOV 50°, vertical FOV 26°, diagonal FOV 54°
  • Lens TypeFixed focal lens, 2.8, 4, and 6 mm optional
  • ApertureF1.6
  • Lens MountM12
  • Iris TypeFixed
DORI
  • DORI2.8 mm, D: 76 m, O: 30 m, R: 15 m, I: 7 m 4 mm, D: 115 m, O: 45 m, R: 23 m, I: 11 m 6 mm, D: 164 m, O: 65 m, R: 32 m, I: 16 m
Illuminator
  • IR Wavelength850 nm
  • Supplement Light RangeUp to 40 m
  • Smart Supplement LightYes
  • Supplement Light TypeIR
HEOP
  • Open ResourcesMemory: 40 MB, Smart RAM: 350 MB, eMMC: 2 GB
  • Computing Power1.5 TOPS
  • Open CapabilityHEOP 2.0 OpendevSDK
  • Deep Learning StructureCaffe,PyTorch,TensorFlow,PaddlePaddle,ONNX
  • Programming LanguageC,C++
Video
  • Main Stream50 Hz: 20 fps (3200 × 1800) 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (3200 × 1800) 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
  • Sub-Stream50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
  • Third Stream50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • Fourth Stream50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
  • Video Compression Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, Fourth stream: H.265/H.264/MJPEG
  • Video Bit Rate32 Kbps to 16 Mbps
  • H.264 TypeBaseline Profile,Main Profile,High Profile
  • H.265 TypeMain Profile
  • Bit Rate ControlCBR,VBR
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Region of Interest (ROI)5 fixed regions for main stream and sub-stream
  • Target CroppingYes
Audio
  • Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Environment Noise FilteringYes
Network
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, SRTP
  • Simultaneous Live ViewUp to 6 channels
  • APIONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
  • User/HostUp to 32 users 3 user levels: administrator, operator, and user
  • SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
  • Network StorageNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • ClientiVMS-4200,Hik-Connect,Hik-Central
  • Web BrowserPlug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
  • Image Parameters SwitchYes
  • Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
  • Day/Night SwitchDay,Night,Auto,Schedule
  • Wide Dynamic Range (WDR)120 dB
  • Image EnhancementBLC,HLC,3D DNR,Defog
  • SNR≥ 52 dB
  • Privacy Mask4 programmable polygon privacy masks
Interface
  • Audio1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
  • Built-in Microphone-U: Yes
  • On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
  • Reset KeyYes
  • Alarm 1 input, 1 output (max. 12 VDC, 30 mA)
  • Power Output12 VDC, max. 100 mA
Event
  • Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
  • Smart EventScene change detection, audio exception detection, defocus detection
  • LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning
Deep Learning Function
  • Face CaptureYes
  • People CountingYes
  • Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
General
  • Power12 VDC ± 25%, 0.62 A, max. 7.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 9 W
  • MaterialMetal except for trim ring
  • DimensionØ127.3 mm × 96.3 mm (Ø5" × 3.8")
  • Package Dimension170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9")
  • WeightApprox. 630 g (1.4 lb.)
  • With Package WeightApprox. 830 g (1.8 lb.)
  • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • General FunctionHeartbeat,anti-banding,mirror,flash log,password reset via email,pixel counter
  • Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Approval
  • EMCFCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
  • SafetyUL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
  • EnvironmentCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
  • ProtectionIP67: IEC 60529-2013
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V5.7.55_241108
Applied to:
DS-2CD3366G2-ISU(2.8mm)(H)
DS-2CD3366G2-ISU(4mm)(H)
DS-2CD3366G2-ISU(6mm)(H)
DS-2CD3366G2-IS(2.8mm)(H)
DS-2CD3366G2-IS(4mm)(H)
DS-2CD3366G2-IS(6mm)(H)

Hikvision.com uses strictly necessary cookies and related technologies to enable the website to function. With your consent, we would also like to use cookies to observe and analyse traffic levels and other metrics / show you targeted advertising / show you advertising on the basis of your location / tailor our website's content. For more information on cookie practices please refer to our cookie policy.



Manage cookies Accept All
Accept All Manage cookies
Sales
Technical Support
Others
Online Service
Contact Us
Hik-Partner Pro close
Hik-Partner Pro
Security Business Assistant. At Your Fingertips. Learn more
Hik-Partner Pro
Scan and download the app
Download
Hik-Partner Pro
Hik-Partner Pro

Get a better browsing experience

You are using a web browser we don’t support. Please try one of the following options to have a better experience of our web content.
