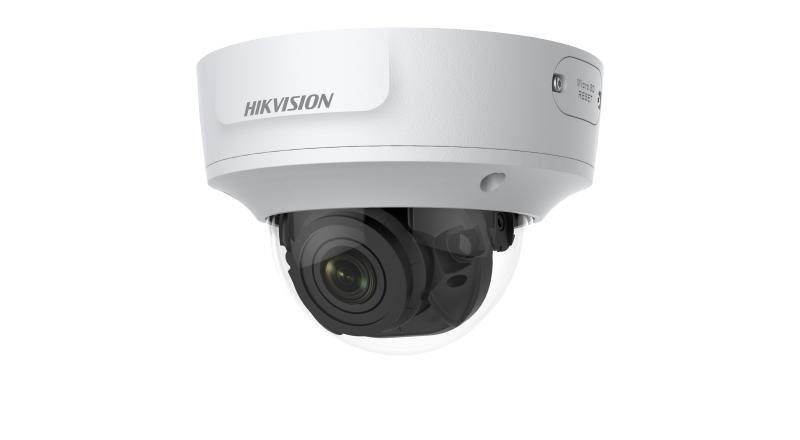

6 MP Powered-by-DarkFighter Varifocal Dome Network Camera

  • High quality imaging with 6 MP resolution
  • Excellent low-light performance via powered-by-DarkFighter technology
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • Water and dust resistant (IP67) and vandal proof (IK10)
  • Motorized vari-focal lens for easy installation and monitoring
  • Robust structure design with full metal materials.
View Less
View more

Available models:

DS-2CD2765G1-IZS(2.8-12mm)
Specification
  • Camera
  • Image Sensor 1/2.4" Progressive Scan CMOS
  • Min. Illumination Color: 0.008 Lux @ (F1.2, AGC ON), 0.011 Lux @ (F1.4, AGC ON)
  • Shutter Speed 1/3 s to 1/100,000 s
  • Slow Shutter Yes
  • Wide Dynamic Range 120dB
  • Day & Night IR Cut Filter
  • Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
  • Lens
  • Focus Auto
  • Lens Type 2.8 to 12 mm Motorized
  • FOV Horizontal field of view: 114° to 34°,Vertical field of view: 71° to 23°,Diagonal field of view: 154° to 41°,
  • Aperture F1.4
  • Lens Mount Φ14
  • Illuminator
  • IR Range Up to 30 m
  • Wavelength 850nm
  • Video
  • Max. Resolution 3072 × 2048
  • Main Stream 50Hz: 20fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 25fps (2560 × 1440, 1920 × 1080, 1280 × 720),60Hz: 20fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 30fps (2560 × 1440, 1920 × 1080, 1280 × 720)
  • Sub Stream 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240),
  • Third Stream 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288),60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240),
  • Video Compression Main stream: H.265/H.264,Sub stream: H.265/H.264/MJPEG,Third stream: H.265/H.264,
  • Video Bit Rate 32 Kbps to 16 Mbps
  • H.264 Type Main Profile/High Profile
  • H.265 Type Main Profile
  • H.264+ Main stream supports
  • H.265+ Main stream supports
  • Region of Interest (ROI) Support 1 fixed region for main stream and sub stream separately
  • Audio
  • Environment Noise Filtering Yes
  • Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
  • Audio Bit Rate 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)
  • Network
  • Simultaneous Live View Up to 6 channels
  • API ONVIF (PROFILE S, PROFILE G), ISAPI
  • Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, WebSocket, WebSockets
  • User/Host Up to 32 users,3 levels: Administrator, Operator and User
  • Network Storage Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
  • Client iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
  • Web Browser Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11,Plug-in free live view: Chrome 45.0+, Firefox 52.0+
  • Alarm Trigger Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
  • Image
  • Day/Night Switch Day/Night/Auto/Schedule/Triggered by Alarm In (-S)
  • DNR 3D DNR
  • Image Enhancement BLC/3D DNR
  • Image Settings Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
  • Interface
  • Audio 1 input (line in), 1 output, mono sound, terminal block
  • Alarm 1 input, 1 output (max. 12 VDC, 30 mA), terminal block
  • Video Output 1Vp-p composite output (75 Ω) (For adjustment only)
  • On-board Storage Built-in micro SD/SDHC/SDXC slot, up to 128 GB
  • Hardware Reset Yes
  • Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
  • Event
  • Smart Event Line crossing detection, intrusion detection, unattended baggage detection, object removal detection
  • Face Detection Yes
  • Exception Detection Scene change detection
  • General
  • Firmware Version V5.5.80
  • General Function One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
  • Startup and Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
  • Power Supply 12 VDC ± 25%, Φ5.5mm coaxial plug power; PoE (802.3af, class 3)
  • Power Consumption and Current 12 VDC, 0.9A, max. 10.5W,PoE: (802.3af, 36V to 57V), 0.4A to 0.2A, max. 12.5W,
  • Camera Dimension Camera: Φ 153.3 × 111.6mm (Φ 6" × 4.4")
  • Camera Weight Camera: 900 g (2 lb.),With package: 1300 g (2.9 lb.),
  • Approval
  • Protection IP67, IK10

Specification
