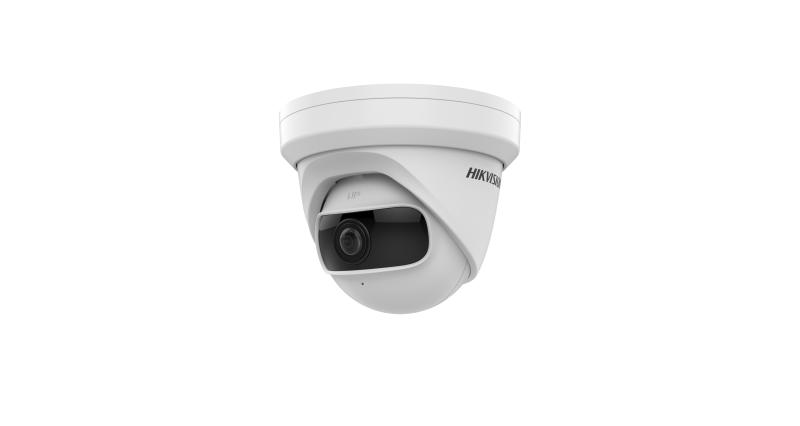

4 MP Super Wide Angle Fixed Turret Network Camera

  • High quality imaging with 4 MP resolution
  • 180°super wide field of view
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • Distortion correction
  • Robust structure design with full metal materials
View Less
View more

Available models:

DS-2CD2345G0P-I(1.68mm)
Specification
  • Camera
  • Image Sensor 1/2.7" Progressive Scan CMOS
  • Min. Illumination Color: 0.028 Lux @ (F2.0, AGC ON) B&W: 0.0028 Lux @ (F2.0, AGC ON), 0 Lux with IR
  • Shutter Speed 1/3 s to 1/100,000 s
  • Slow Shutter Yes
  • Wide Dynamic Range 120 dB
  • Day & Night IR Cut Filter
  • Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
  • Lens
  • Lens Type Fixed lens, 1.68 mm
  • FOV 1.68 mm, horizontal FOV: 180° , vertical FOV: 101° , diagonal FOV: 180°
  • Aperture F2.0
  • Lens Mount M12
  • Illuminator
  • IR Range Up to 10 m
  • Wavelength 850 nm
  • Video
  • Max. Resolution 2688 × 1520
  • Main Stream 50Hz: 25fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720) 60Hz: 24fps (2688 × 1520), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)
  • Sub Stream 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
  • Video Compression Main stream: H.265+/H.264+/H.265/H.264 Sub-stream: H.265/H.264/MJPEG
  • Video Bit Rate 32 Kbps to 16 Mbps
  • H.264 Type Baseline Profile/Main Profile/High Profile
  • H.265 Type Main Profile
  • Scalable Video Coding (SVC) H.264 and H.265 encoding support
  • Region of Interest (ROI) 1 fixed region for main stream, sub-stream and third stream
  • Network
  • Simultaneous Live View Up to 6 channels
  • API ONVIF (PROFILE S, PROFILE G), ISAPI, SDK
  • Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
  • User/Host Up to 32 users, 3 levels: administrator, operator and user
  • Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
  • Network Storage microSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR
  • Client iVMS-4200, Hik-Connect, Hik-Central
  • Web Browser Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+
  • Image
  • Day/Night Switch Day/Night/Auto/Schedule
  • Image Enhancement BLC, HLC, 3D DNR
  • Image Settings Saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser
  • Interface
  • On-board Storage Built-in micro SD slot, up to 256 GB
  • Hardware Reset Reset via reset button on camera body, web browser and client software
  • Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
  • Event
  • Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
  • Smart Event Line crossing detection, intrusion detection, unattended baggage, object removal, face detection, scene change detection
  • General
  • Linkage Method Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email
  • Web Client Language 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
  • General Function Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
  • Storage Conditions -10 °C to 40 °C (14 °F to 104 °F), humidity 95% or less (non-condensing)
  • Startup and Operating Conditions -10 °C to 40 °C (14 °F to 104 °F), humidity 95% or less (non-condensing)
  • Power Supply 12 VDC ± 25%, Φ 5.5 mm coaxial power plug; reverse polarity protection; PoE (802.3af, type 1, class 3)
  • Power Consumption and Current 12 VDC, 0.48 A, max. 5.8 W; PoE (802.3af, 36 V to 57 V), 0.19 A to 0.12 A, max. 6.8W
  • Camera Dimension Camera: Φ 127.3 × 104.1 mm (Φ 5" × 4.1") With package: 150 × 150 × 141 mm (5.9" × 5.9" × 5.6")
  • Camera Weight Camera: Approx. 520 g (1.1 lb.) With package: Approx. 700 g (1.5 lb.)
  • Approval
  • EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
  • Safety UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
  • Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Specification
