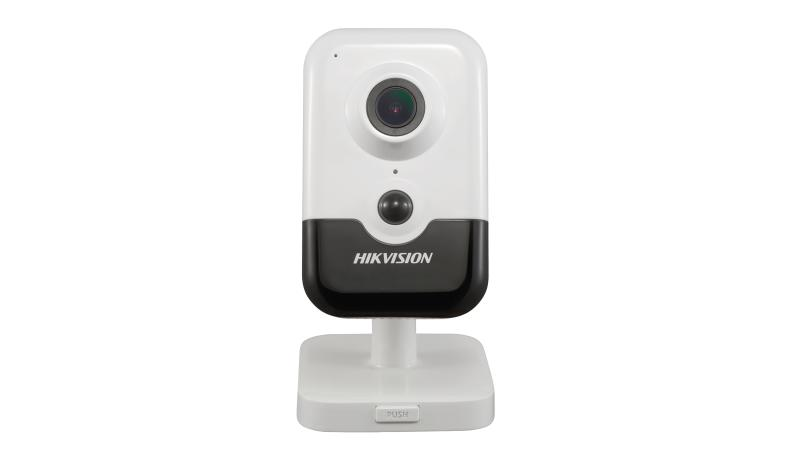

2 MP Powered by DarkFighter Cube Network Camera

  • High quality imaging with 2 MP resolution
  • Excellent low-light performance via powered-by-DarkFighter technology
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • Provides real-time security through built-in two-way audio
  • Detects human body through passive infrared sensitive to body temperature (PIR)
  • -W: Wi-Fi connection

View Less
View more

Available models:

DS-2CD2425FWD-IW(2.8mm)
Specification
  • Camera
  • Image Sensor 1/2.8" Progressive Scan CMOS
  • Min. Illumination Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR,Color: 0.009 lux @(F1.6, AGC ON), 0 lux with IR
  • Shutter Speed 1/3 s to 1/100,000 s
  • Slow Shutter Yes
  • Wide Dynamic Range 120dB
  • Day & Night IR Cut Filter
  • Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
  • Lens
  • Focus Fixed
  • Lens Type 2.8 mm
  • FOV Horizontal field of view: 108°, Vertical field of view: 59°, Diagonal field of view: 129°
  • Aperture F1.6
  • Lens Mount M12
  • Illuminator
  • IR Range 10 m
  • Wavelength 850nm
  • Video
  • Max. Resolution 1920 × 1080
  • Main Stream 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • Sub-Stream 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
  • Third Stream 50Hz: 25fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 288),60Hz: 30fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 240)
  • Video Compression Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
  • Video Bit Rate 32 Kbps to 16 Mbps
  • H.264 Type Main Profile/High Profile
  • H.265 Type Main Profile
  • H.264+ Main stream supports
  • H.265+ Main stream supports
  • Scalable Video Coding (SVC) Support H.264 and H.265 encoding
  • Region of Interest (ROI) Support 1 fixed region for main stream and sub-stream separately
  • Audio
  • Environment Noise Filtering Yes
  • Audio Sampling Rate 8 kHz/16 kHz
  • Audio Compression G722.1/G711/G726/MP2L2/PCM
  • Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
  • Network
  • Simultaneous Live View Up to 6 channels
  • API ONVIF (PROFILE S, PROFILE G), ISAPI
  • Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
  • User/Host Up to 32 users,3 levels: Administrator, Operator and User
  • Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
  • Network Storage Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
  • Client iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
  • Web Browser Plug-in required live view:,IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11,Plug-in free live view:,Chrome 45.0+, Firefox 52.0+
  • Alarm Trigger Motion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, PIR, illegal login
  • Wi-Fi
  • Encryption Mode WPA, WPA2
  • Wi-Fi Protocol IEEE 802.11b/g/n
  • Frequency Range 2.412 GHz to 2.4835 GHz
  • Channel Bandwidth 20M/40M
  • Transfer Rate 11b: 11Mbps, 11g: 54Mbps, 11n: up to 150Mbps
  • Wireless Range 50 m
  • Image
  • Day/Night Switch Day/Night/Auto/Schedule
  • DNR 3D DNR
  • Image Enhancement BLC/3D DNR/HLC
  • Image Settings Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
  • Transducer
  • PIR Angle Horizontal: 90°, Vertical: 80°
  • PIR Range 10 m
  • Interface
  • Audio 1 built-in mic, 1 built-in speaker, mono sound
  • On-board Storage Built-in Micro SD/SDHC/SDXC slot, up to 128G
  • Hardware Reset Yes
  • Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
  • Event
  • Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
  • Smart Event Line crossing detection, intrusion detection, unattended baggage detection, object removal detection
  • Face Detection Yes
  • Exception Detection Scene change detection
  • General
  • Linkage Method Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email
  • Firmware Version V5.5.80
  • Web Client Language 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
  • General Function Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
  • Startup and Operating Conditions -10 °C to +40 °C (14 °F to +104 °F), Humidity 95% or less (non-condensing)
  • Power Supply 12 VDC ± 20%, PoE (802.3af, class 3)
  • Power Consumption and Current 12 VDC, 0.38 A, max. 7 W,PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 7 W
  • Camera Dimension 102.8 mm × 65.2 mm × 32.6 mm (4.05" × 2.57" × 1.28")
