EOL

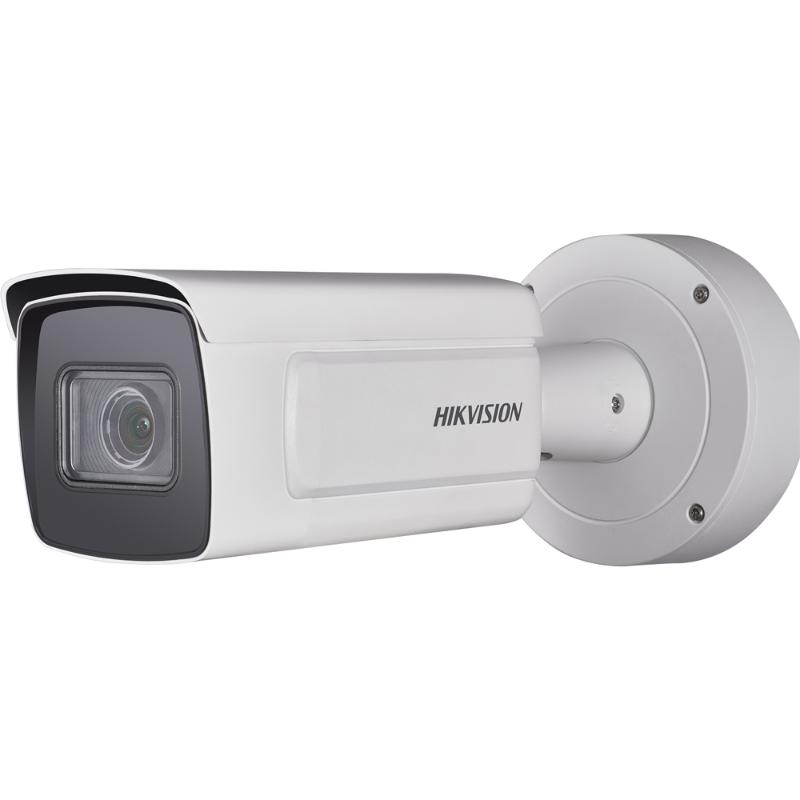

4K DeepinView Moto Varifocal Bullet Camera

  • High quality imaging with 8 MP resolution
  • Clear imaging against strong back light thanks to true WDR technology
  • Intelligent functions based on deep learning
  • Efficient H.265+ compression technology to save bandwidth and storage
  • Advanced streaming technology enables smooth live view and data self-correction in poor network
  • 5 streams and up to 5 custom streams to meet a wide variety of applications
  • 6 behavior analyses, 3 exception detection, and face detection
  • Water and dust resistant and vandal proof (IP67 and IK10).

View Less
View more

Available models:

DS-2CD7A85G0-IZHS(2.8-12mm)(B)

Specification

  • Camera
  • Image Sensor1/1.8ʺ Progressive Scan CMOS
  • Min. IlluminationColor: 0.007 Lux @ (F1.2, AGC ON), 0.016 Lux @ (F1.8, AGC ON), 0 Lux with IR
  • Shutter Speed1 s to 1/100,000 s
  • Slow ShutterYes
  • Wide Dynamic Range120 dB
  • Day & NightIR cut filter
  • Angle AdjustmentBracket, pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°
  • Lens
  • FocusAuto, semi auto, manual
  • Lens TypeMotorized lens, 2.8 to 12 mm and 8 to 32 mm optional
  • FOV2.8 to 12 mm, horizontal FOV 112.4° to 41°, vertical FOV 58° to 23°, diagonal FOV 137° to 47° 8 to 32 mm, horizontal FOV 39° to 15.6°, vertical FOV 21.8° to 8.9°, diagonal FOV 45° to 17.8°
  • Aperture2.8 to 12 mm: F1.2 to 2.5 ,8 to 32 mm: F1.8, Constant F1.8 throughout the zoom range
  • Lens MountIntegrated
  • Illuminator
  • IR Range2.8 to 12 mm: up to 50 m; 8 to 32 mm: up to 100 m
  • Wavelength850 nm
  • Video
  • Max. Resolution3840 × 2160
  • Video Stream5 defined streams and up to 5 custom stream
  • Main Stream50Hz: 25fps (3840 × 2160, 3200 × 1800, 2560 × 1440, 1920 × 1080, 1280 × 720) ,60Hz: 30fps (3840 × 2160, 3200 × 1800, 2560 × 1440, 1920 × 1080, 1280 × 720)
  • Sub-Stream50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
  • Third Stream50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
  • Fourth Stream50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
  • Fifth Stream50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
  • Custom Stream50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
  • Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG
  • Video Bit Rate32 Kbps to 16 Mbps
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • H.264+Main stream support
  • H.265+Main stream support
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Network
  • Simultaneous Live ViewUp to 20 channels
  • APIONVIF (PROFILE S, PROFILE G), ISAPI, SDK
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
  • Smooth StreamingYes
  • User/HostUp to 32 users. 3 user levels: administrator, operator and user
  • SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2
  • Network StoragemicroSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR ,Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • ClientiVMS-4200, Hik-Connect, Hik-Central
  • Web BrowserPlug-in required live view: IE8+, Chrome 41.0-44, Mozilla Firefox30.0-51, Safari8.0-11 Plug-in free live view: Chrome 45+, Mozilla Firefox52+
  • Image
  • Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In
  • Target CroppingYes
  • Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
  • Image EnhancementBLC, HLC, 3D DNR, Defog, EIS, distortion correction
  • Image SettingsRotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
  • Interface
  • Alarm 2 inputs, 2 outputs (max. 24 VDC/VAC, 1A)
  • Video Output1Vp-p composite output (75 Ω/CVBS), only for adjustment
  • On-board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB
  • Hardware ResetReset via reset button on camera body, web browser and client software
  • Communication Interface1 RJ45 10M/100M/1000M Ethernet port
  • Interface StyleSocket style interface
  • Heater-H: yes
  • Event
  • Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
  • Smart EventLine crossing detection, up to 4 lines configurable ,Intrusion detection, up to 4 regions configurable ,Region entrance detection, up to 4 regions configurable ,Region exiting detection, up to 4 regions configurable ,Unattended baggage detection, up to 4 regions configurable ,Object removal detection, up to 4 regions configurable ,Face detection: detects faces and upload images ,Scene change detection, defocus detection,
  • Deep Learning Function
  • Premier ProtectionLine crossing, intrusion, region entrance, region exiting ,Support alarm triggering by specified target types (human and vehicle) ,Filtering out false alarm caused by target types such as leaf, light, animal, and flag, etc.
  • General
  • Firmware Version5.5.90
  • Web Client Language32 languages ,English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
  • General FunctionAnti-flicker, 5 streams and up to 5 custom streams, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter
  • Storage Conditions-30 °C to 65 °C (-22 °F to 149 °F) ,Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions-30 °C to 65 °C (-22 °F to 149 °F), -H: -40 °C to 65 °C (-40 °F to 149 °F) Humidity 95% or less (non-condensing)
  • Power Supply12 VDC ± 20%, two-core terminal block; reverse polarity protection, PoE (802.3at, class 4)
  • Power Consumption and Current-IZS: 12 VDC, 1.2 A, 14 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A, class 4 ,-IZHS: 12 VDC, 1.4 A, 16.5 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A, class 4
  • Camera DimensionCamera: Φ144 × 347 mm (Φ5.7″ × 13.7″) ,With package: 405 × 190 × 180 mm (15.9″ × 7.5″ × 7.1″)
  • Camera WeightCamera: approx. 2.45 kg (5.40 lb.) With package: approx. 2.7 kg (5.95 lb.)
  • Approval
  • EMC47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015
  • SafetyUL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015
  • Environment2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006
  • ProtectionIngress protection: IK10 (IEC 62262:2002), IP67 (IEC 60529-2013)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Camera
Image Sensor
1/1.8ʺ Progressive Scan CMOS
Min. Illumination
Color: 0.007 Lux @ (F1.2, AGC ON), 0.016 Lux @ (F1.8, AGC ON), 0 Lux with IR
Shutter Speed
1 s to 1/100,000 s
Slow Shutter
Yes
Wide Dynamic Range
120 dB
Day & Night
IR cut filter
Angle Adjustment
Bracket, pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
Focus
Auto, semi auto, manual
Lens Type
Motorized lens, 2.8 to 12 mm and 8 to 32 mm optional
FOV
2.8 to 12 mm, horizontal FOV 112.4° to 41°, vertical FOV 58° to 23°, diagonal FOV 137° to 47° 8 to 32 mm, horizontal FOV 39° to 15.6°, vertical FOV 21.8° to 8.9°, diagonal FOV 45° to 17.8°
Aperture
2.8 to 12 mm: F1.2 to 2.5 ,8 to 32 mm: F1.8, Constant F1.8 throughout the zoom range
Lens Mount
Integrated
Illuminator
IR Range
2.8 to 12 mm: up to 50 m; 8 to 32 mm: up to 100 m
Wavelength
850 nm
Video
Max. Resolution
3840 × 2160
Video Stream
5 defined streams and up to 5 custom stream
Main Stream
50Hz: 25fps (3840 × 2160, 3200 × 1800, 2560 × 1440, 1920 × 1080, 1280 × 720) ,60Hz: 30fps (3840 × 2160, 3200 × 1800, 2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-Stream
50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
Third Stream
50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Fourth Stream
50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Fifth Stream
50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
Custom Stream
50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264 Sub stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG
Video Bit Rate
32 Kbps to 16 Mbps
H.264 Type
Baseline Profile/Main Profile/High Profile
H.265 Type
Main Profile
H.264+
Main stream support
H.265+
Main stream support
Scalable Video Coding (SVC)
H.264 and H.265 encoding
Network
Simultaneous Live View
Up to 20 channels
API
ONVIF (PROFILE S, PROFILE G), ISAPI, SDK
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
Smooth Streaming
Yes
User/Host
Up to 32 users. 3 user levels: administrator, operator and user
Security
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2
Network Storage
microSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR ,Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client
iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE8+, Chrome 41.0-44, Mozilla Firefox30.0-51, Safari8.0-11 Plug-in free live view: Chrome 45+, Mozilla Firefox52+
Day/Night Switch
Day/Night/Auto/Schedule/Triggered by Alarm In
Target Cropping
Yes
Picture Overlay
LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Image Enhancement
BLC, HLC, 3D DNR, Defog, EIS, distortion correction
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
Interface
Alarm
2 inputs, 2 outputs (max. 24 VDC/VAC, 1A)
Video Output
1Vp-p composite output (75 Ω/CVBS), only for adjustment
On-board Storage
Built-in micro SD/SDHC/SDXC slot, up to 256 GB
Hardware Reset
Reset via reset button on camera body, web browser and client software
Communication Interface
1 RJ45 10M/100M/1000M Ethernet port
Interface Style
Socket style interface
Heater
-H: yes
Event
Basic Event
Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart Event
Line crossing detection, up to 4 lines configurable ,Intrusion detection, up to 4 regions configurable ,Region entrance detection, up to 4 regions configurable ,Region exiting detection, up to 4 regions configurable ,Unattended baggage detection, up to 4 regions configurable ,Object removal detection, up to 4 regions configurable ,Face detection: detects faces and upload images ,Scene change detection, defocus detection,
Deep Learning Function
Premier Protection
Line crossing, intrusion, region entrance, region exiting ,Support alarm triggering by specified target types (human and vehicle) ,Filtering out false alarm caused by target types such as leaf, light, animal, and flag, etc.
General
Firmware Version
5.5.90
Web Client Language
32 languages ,English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
