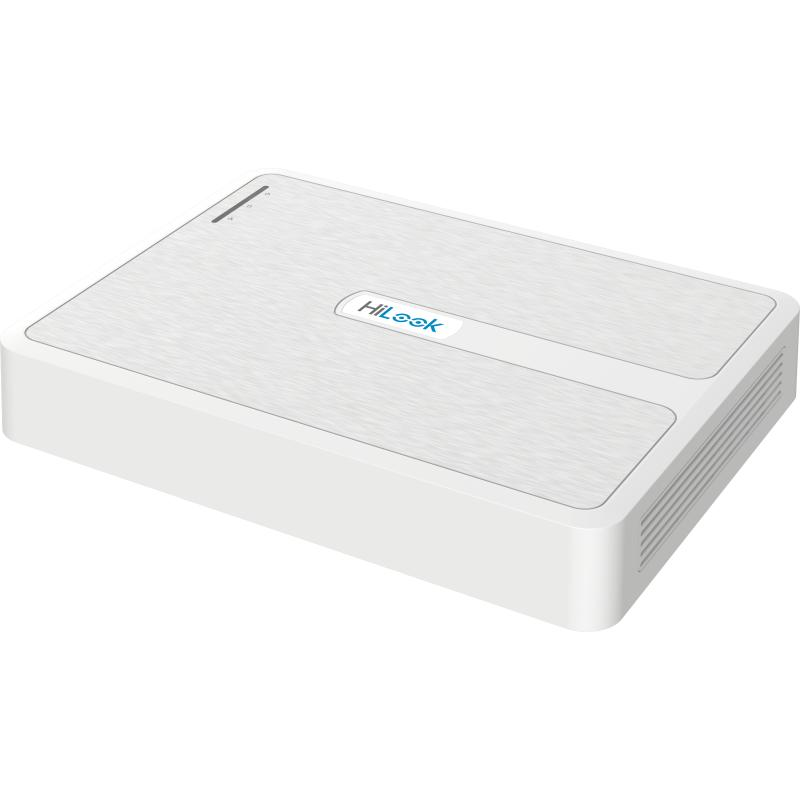

16 CH 1080P Lite Mini 1U H.265

  • 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
  • Long distance transmission over UTP and coaxial cable
  • H.265 Pro+ compression to improve encoding efficiency and reduce data storage costs
  • Supports 1080p lite, and when enabled the image effect is similar with 1080p
  • Encoding abilty up to 1080p lite @ 15 fps
  • One HDD for continuous video recording
  • Smart search for efficient playback

Specification
  • Recording
  • Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Encoding Resolution1080p lite/720p/VGA/WD1/4CIF/CIF
  • Frame RateMain stream: For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA@15 fps; CIF@25 fps (P)/30 fps (N) For 720p stream access: 720p/WD1/4CIF/VGA@15 fps; CIF@ 25fps (P)/30 fps (N) For standard definition stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: For 1080p and 720p stream access: CIF/QVGA@15 fps For standard definition stream access: CIF/QVGA@25 fps (P)/30 fps (N)
  • Video Bitrate32 Kbps to 4 Mbps
  • Dual-streamSupport
  • Stream TypeVideo, Video & Audio
  • Audio CompressionG.711u
  • Audio Bitrate64 Kbps
  • Video and Audio
  • IP Video Input2-ch (up to 18-ch) Up to 5 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
  • Analog Video Input16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
  • HDTVI Input1080p25, 1080p30, 720p25, 720p30
  • AHD Input1080p25, 1080p30, 720p25, 720p30
  • HDCVI Input1080p25, 1080p30, 720p25, 720p30
  • CVBS InputPAL/NTSC
  • HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ) 16-ch via coaxial cable
  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input)
  • Synchronous playback16-ch
  • Video Output ModeHDMI/VGA simultaneous output
  • Network
  • Remote Connection128
  • Network ProtocolTCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
  • Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface
  • Auxiliary Interface
  • SATA1, SATA interface
  • CapacityUp to 10 TB capacity for each disk
  • USB InterfaceRear panel: 2 × USB 2.0
  • General
  • Power Supply12 VDC, 1.6 A
  • Consumption≤ 7 W (without HDD)
  • Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
  • Working Humidity10% to 90%
  • Dimension (W × D × H)285 × 210 × 45 mm (11.2 × 8.3 × 1.8 inch)
  • ≤ 2.1 kg (4.6 lb.)
