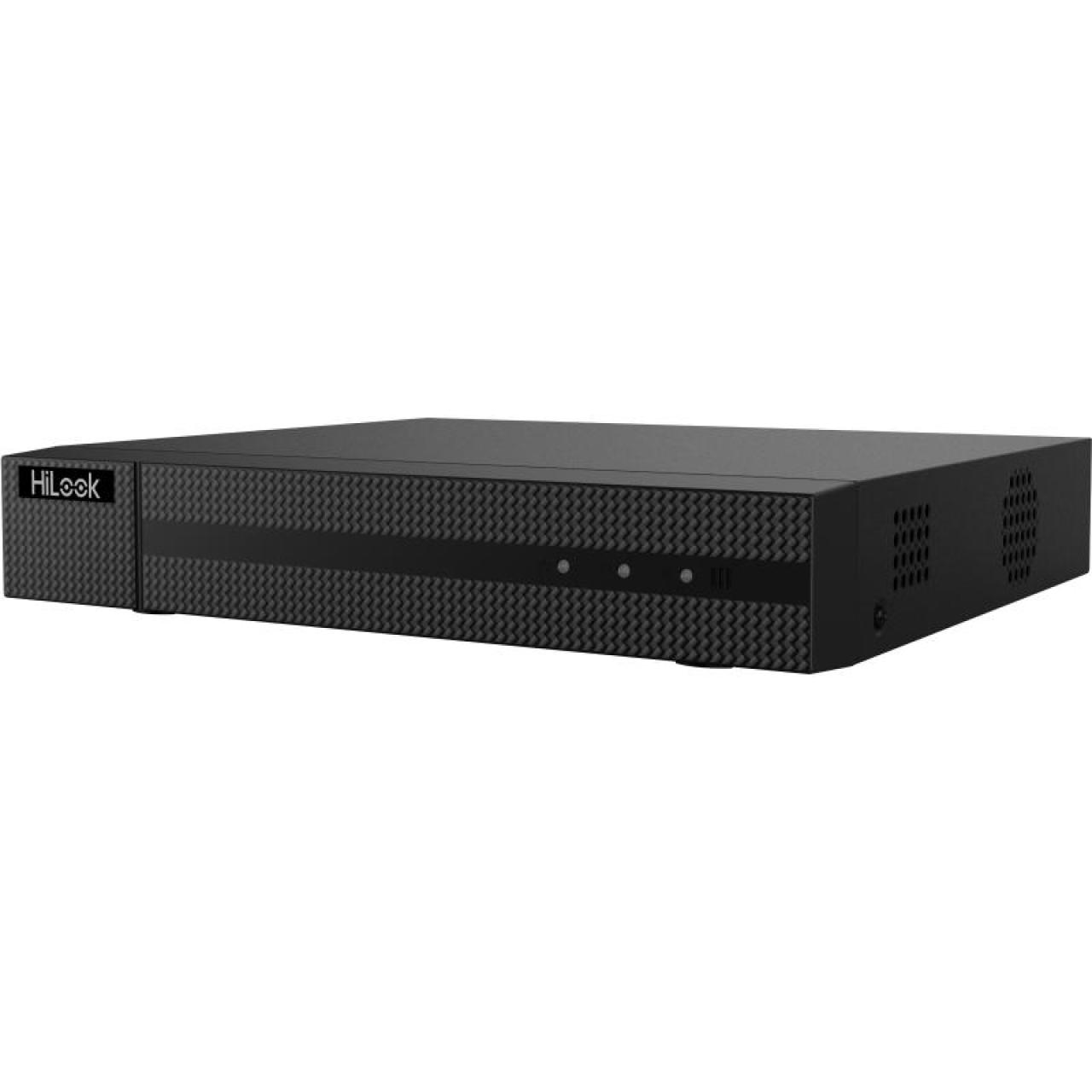

4-ch Mini 1U 4 PoE NVR

  • H.265+/H.265/H.264+/H.264 video compression
  • Up to 40 Mbps incoming bandwidth, and 60 Mbps outgoing bandwidth
  • Up to 4-ch network camera inputs
  • Up to 4-ch 1080p decoding capability
  • HDMI and VGA simultaneous output

View Less
View more
Sales Inquiry

Available models:

NVR-104MH-D/4P(C)
NVR-104MH-D/4P(D)
NVR-104MH-D/4P

Specification

  • Video and Audio
  • IP Video Input4-ch Up to 6 MP resolution
  • Incoming Bandwidth40 Mbps
  • Outgoing Bandwidth60 Mbps
  • HDMI Output1-ch, 1920 × 1080p/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
  • VGA Output1-ch, 1920 × 1080p/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
  • Video Output ModeHDMI/VGA simultaneous output
  • Decoding
  • Decoding FormatH.265+/H.265/ H.264+/H.264
  • Recording Resolution6 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
  • Synchronous playback4-ch
  • Decoding Capability4-ch@1080p (30 fps) or 2-ch@4 MP (30 fps) or 1-ch@6 MP (30 fps)
  • Stream TypeVideo, Video & Audio
  • Network
  • Remote Connection16
  • Network ProtocolTCP/IP, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, SMTP, UPnP™
  • Network Interface1, RJ-45 10/100Mbps self-adaptive Ethernet interface
  • PoE
  • Interface4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
  • Power≤ 36 W
  • StandardIEEE 802.3 af/at
  • Auxiliary Interface
  • SATA1 SATA interface
  • CapacityUp to 6 TB capacity for each disk
  • Alarm In/OutN/A
  • USB InterfaceRear panel: 2 × USB 2.0
  • General
  • Power Supply48 VDC, 1 A
  • Consumption≤ 10 W (without HDD and PoE off)
  • Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity10% to 90%
  • Dimension (W × D × H)265 × 225 × 48 mm (10.4" × 8.9" × 1.9")
  • Weight≤ 1 kg (without HDD, 2.2 lb.)
  • Certification
  • CEEN50130-4, EN 61000-3-2,EN 61000-3-3
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Video and Audio
IP Video Input
4-ch Up to 6 MP resolution
Incoming Bandwidth
40 Mbps
Outgoing Bandwidth
60 Mbps
HDMI Output
1-ch, 1920 × 1080p/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
VGA Output
1-ch, 1920 × 1080p/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
Video Output Mode
HDMI/VGA simultaneous output
Decoding
Decoding Format
H.265+/H.265/ H.264+/H.264
Recording Resolution
6 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Synchronous playback
4-ch
Decoding Capability
4-ch@1080p (30 fps) or 2-ch@4 MP (30 fps) or 1-ch@6 MP (30 fps)
Stream Type
Video, Video & Audio
Network
Remote Connection
16
Network Protocol
TCP/IP, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, SMTP, UPnP™
Network Interface
1, RJ-45 10/100Mbps self-adaptive Ethernet interface
PoE
Interface
4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power
≤ 36 W
Standard
IEEE 802.3 af/at
Auxiliary Interface
SATA
1 SATA interface
Capacity
Up to 6 TB capacity for each disk
Alarm In/Out
N/A
USB Interface
Rear panel: 2 × USB 2.0
General
Power Supply
48 VDC, 1 A
Consumption
≤ 10 W (without HDD and PoE off)
Working Temperature
-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity
10% to 90%
Dimension (W × D × H)
265 × 225 × 48 mm (10.4" × 8.9" × 1.9")
Weight
≤ 1 kg (without HDD, 2.2 lb.)
Certification
CE
EN50130-4, EN 61000-3-2,EN 61000-3-3
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Video and Audio
  • IP Video Input4-ch Up to 6 MP resolution
  • Incoming Bandwidth40 Mbps
  • Outgoing Bandwidth60 Mbps
  • HDMI Output1-ch, 1920 × 1080p/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
  • VGA Output1-ch, 1920 × 1080p/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
  • Video Output ModeHDMI/VGA simultaneous output
Decoding
  • Decoding FormatH.265+/H.265/ H.264+/H.264
  • Recording Resolution6 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
  • Synchronous playback4-ch
  • Decoding Capability4-ch@1080p (30 fps) or 2-ch@4 MP (30 fps) or 1-ch@6 MP (30 fps)
  • Stream TypeVideo, Video & Audio
Network
  • Remote Connection16
  • Network ProtocolTCP/IP, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, SMTP, UPnP™
  • Network Interface1, RJ-45 10/100Mbps self-adaptive Ethernet interface
PoE
  • Interface4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
  • Power≤ 36 W
  • StandardIEEE 802.3 af/at
Auxiliary Interface
  • SATA1 SATA interface
  • CapacityUp to 6 TB capacity for each disk
  • Alarm In/OutN/A
  • USB InterfaceRear panel: 2 × USB 2.0
General
  • Power Supply48 VDC, 1 A
  • Consumption≤ 10 W (without HDD and PoE off)
  • Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity10% to 90%
  • Dimension (W × D × H)265 × 225 × 48 mm (10.4" × 8.9" × 1.9")
  • Weight≤ 1 kg (without HDD, 2.2 lb.)
Certification
  • CEEN50130-4, EN 61000-3-2,EN 61000-3-3
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V4.74.100_230707
Firmware_V4.74.100_230707
K20B2_V4.74.100build230707_ReleaseNotes
Applied to:
NVR-104MH-D/4P(C)
Firmware_Asia_V4.76.106_241118
Firmware_Europe_V4.76.106_241118
V4.76.106 build241118_ReleaseNotes
Applied to:
NVR-104MH-D/4P(D)
