EOL

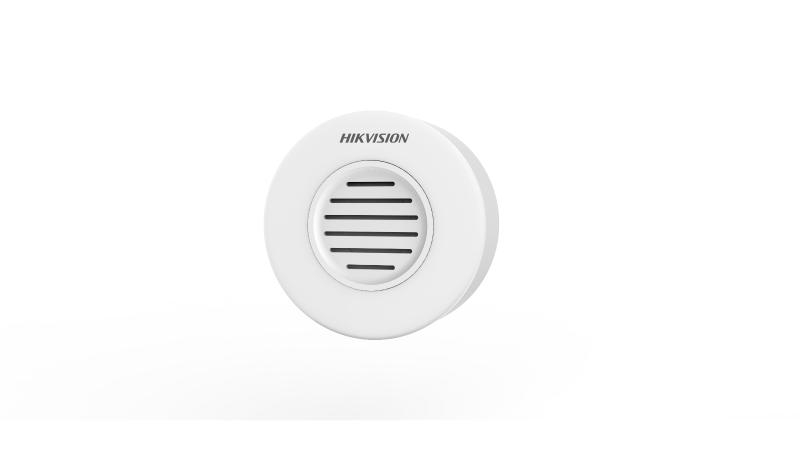

DS-PMA-WBELL(433MHz)

  • RF 433 MHz
  • Offers reliable protection utilizing two-way wireless technology
  • Supports tamper alarm
  • Communicates up to 800 m (in open areas)
  • Siren: 105 dB
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-PMA-WBELL(433M)
DS-PMA-WBELL(433MHz)
EOL
Data Sheet

Specification

  • Software features
  • Tamper-ProofTamper switch
  • RF transmission
  • RF Frequency433MHz
  • RF Modulation2GFSK
  • RF Speed10 kbps
  • RF Range800 m (open area)
  • Electrical characteristics
  • Power supplyMicro-USB，3.7V lithium battery backup ( stand by for over 24 hours)
  • General
  • Operation temperature-10℃ ~ ＋55℃
  • Operation humidity≤95%RH
  • Shell materialPC + ABS
  • Dimension(WxHxD)Φ80*45
  • Weight116 g
  • Installation methodWall mounting
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Software features
Tamper-Proof
Tamper switch
RF transmission
RF Frequency
433MHz
RF Modulation
2GFSK
RF Speed
10 kbps
RF Range
800 m (open area)
Electrical characteristics
Power supply
Micro-USB，3.7V lithium battery backup ( stand by for over 24 hours)
General
Operation temperature
-10℃ ~ ＋55℃
Operation humidity
≤95%RH
Shell material
PC + ABS
Dimension(WxHxD)
Φ80*45
Weight
116 g
Installation method
Wall mounting
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Software features
  • Tamper-ProofTamper switch
RF transmission
  • RF Frequency433MHz
  • RF Modulation2GFSK
  • RF Speed10 kbps
  • RF Range800 m (open area)
Electrical characteristics
  • Power supplyMicro-USB，3.7V lithium battery backup ( stand by for over 24 hours)
General
  • Operation temperature-10℃ ~ ＋55℃
  • Operation humidity≤95%RH
  • Shell materialPC + ABS
  • Dimension(WxHxD)Φ80*45
  • Weight116 g
  • Installation methodWall mounting
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
