EOL

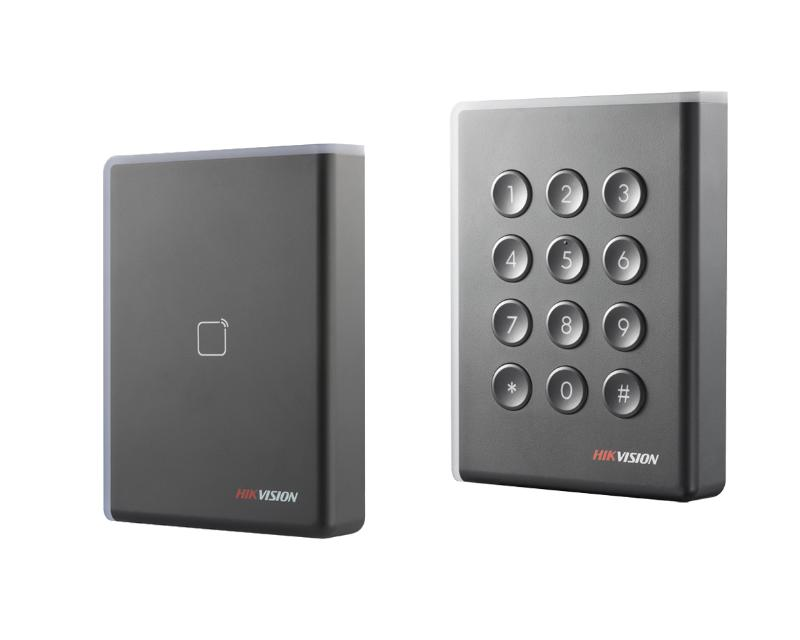

Pro 1108 Series Card Reader

  • Mifare1/ EM card reader
  • Built-in audible beeper
  • Support RS-485, Wiegand (W26, W34), and OSDP protocol
  • IP65
View Less
View more

Available models:

DS-K1108E
DS-K1108M
DS-K1108MK

Specification

  • System
  • Processor32-bit
  • Interface
  • RS-485Support
  • WiegandSupport, set via DIP switch
  • Authentication
  • Card reading distance≤50mm (≤1.97")
  • General
  • IndicatorPower/Status
  • Power supplyDC 12V
  • Power consumption≤2W
  • Working temperature-20°C to +65°C (-4°F to +149°F)
  • Working humidity10% to 90% (Non Condensing)
  • Protective levelIP 65
  • Dimensions123mm × 88mm × 21mm (4.84" × 3.46" × 0.83")
  • InstallationWall Mounting with/without Gang Box
  • ApprovalRadio Frequency Standard: ISO 14443-A
  • KeypadPhysical Key/No Key
  • BuzzerSupport
  • Function
  • ID settingsvia DIP Switch

Specification

Specification
System
  • Processor32-bit
Interface
  • RS-485Support
  • WiegandSupport, set via DIP switch
Authentication
  • Card reading distance≤50mm (≤1.97")
General
  • IndicatorPower/Status
  • Power supplyDC 12V
  • Power consumption≤2W
  • Working temperature-20°C to +65°C (-4°F to +149°F)
  • Working humidity10% to 90% (Non Condensing)
  • Protective levelIP 65
  • Dimensions123mm × 88mm × 21mm (4.84" × 3.46" × 0.83")
  • InstallationWall Mounting with/without Gang Box
  • ApprovalRadio Frequency Standard: ISO 14443-A
  • KeypadPhysical Key/No Key
  • BuzzerSupport
Function
  • ID settingsvia DIP Switch
For better user experience, we highly recommend you to update your device to the latest firmware asap.
