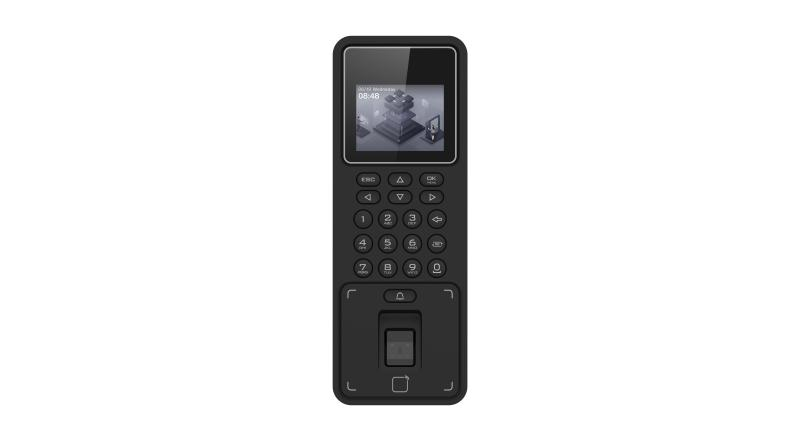

Pro Fingerprint Terminals

2.4-inch LCD screen
Multiple authentication methods, including fingerprint, card (M1 card), and PIN, etc.
Max. 3000 cards, 3000 fingerprints and 100,000 events
Supports ISAPI and ISUP 5.0 protocols
Configuration via the PC web client and mobile web client
Supports wired network and Wi-Fi (AP mode)
Supports wiring with secure door control unit or card reader via RS-485
Supports power supply by battery in the bracket
Supports access control and local time and attendance function

View Less

Data Sheet

Available models:

DS-K1T808MFWX-B

Specification
Resources
Accessories

Data Sheet

System
Operating systemLinux

Display
Screen size2.4 inch
TypeLCD
Resolution320 × 240

Audio
Audio outputBuilt-in buzzer

Network
Wired networkSupport
Wi-FiSupport, 2.4 G, 802.11b/g/n

Interface
Network interface1 RJ-45, 10/100 M self-adaptive
Lock control1
Exit button1
Door contact input1
TAMPER1
RS-4851 RS-485 (Half duplex, HIKVISION)
Wiegand1 Wiegand (W26, W34)
USB1

Capacity
Fingerprint capacity3000
Card capacity3000
Event capacity100,000

Authentication
Card typeM1 card
Fingerprint moduleOptical fingerprint module
Fingerprint comparing mode1:1 and 1:N

General
Power supply12 VDC Supports power supply by battery in the bracket
Power consumption≤ 6 W
Working temperature-10 °C to 55 °C (14 °F to 131 °F)
Working humidity0 to 90% (No condensing)
LanguageEnglish, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean, Japanese
KeypadSupport

System

Operating system

Linux

Display

Screen size

2.4 inch

Type

LCD

Resolution

320 × 240

Audio

Audio output

Built-in buzzer

Network

Wired network

Support

Wi-Fi

Support, 2.4 G, 802.11b/g/n

Interface

Network interface

1 RJ-45, 10/100 M self-adaptive

Lock control

Exit button

Door contact input

TAMPER

RS-485

1 RS-485 (Half duplex, HIKVISION)

Wiegand

1 Wiegand (W26, W34)

USB

Capacity

Fingerprint capacity

3000

Card capacity

3000

Event capacity

100,000

Authentication

Card type

M1 card

Fingerprint module

Optical fingerprint module

Fingerprint comparing mode

1:1 and 1:N

General

Power supply

12 VDC Supports power supply by battery in the bracket

Power consumption

≤ 6 W

Working temperature

-10 °C to 55 °C (14 °F to 131 °F)

Working humidity

0 to 90% (No condensing)

Language

English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean, Japanese

Keypad
