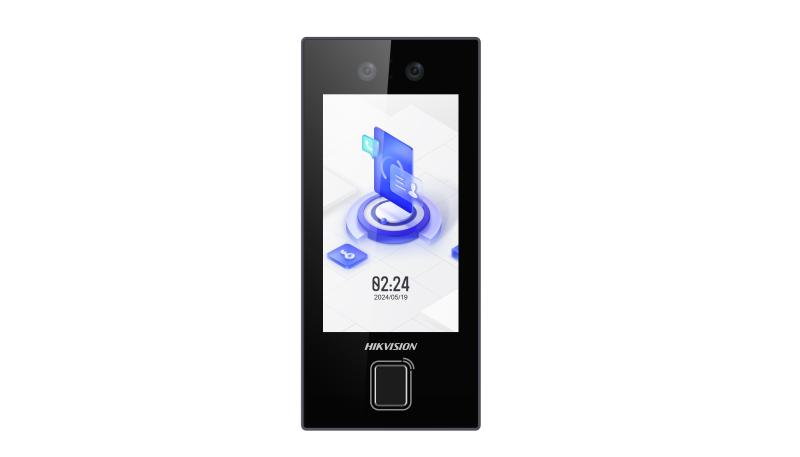

Value Series Face Access Terminal

  • Supports 4.5-inch LCD touch screen, 2 Mega pixel wide-angle lens, and built-in M1 card reading module
  • Max.3000 faces capacity, Max.3000 fingerprints capacity, and Max.3000 cards
  • Face Recognition Distance: 0.3 m to 1.5 m; Duration ＜ 0.2 s/User; Accuracy rate ≥ 99%
  • Supports face, card, PIN, and fingerprint authentication
  • Two-way audio with client software, indoor station, and main station.
  • Supports mobile web and PC web for configuration
  • Supports powered by 12 VDC or PoE and supports powering for device and door lock.
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-K1T344MFX-E1
DS-K1T344MFX-E1
Data Sheet

Specification

  • System
  • Operating systemLinux
  • Display
  • Screen size4.5-inch
  • Resolution480 × 854
  • TypeLCD
  • Operation methodTouchable
  • Video
  • Lens× 2
  • Video standardPAL (Default) and NTSC
  • Network
  • Wired network10/100 Mbps self adaptive
  • Wi-FiNot support
  • Interface
  • Alarm input2
  • Alarm output1
  • PoEIEEE802.3at, standard PoE
  • Network interface1
  • RS-4851
  • Wiegand1, supports Wiegand input, single direction
  • Lock control1
  • Exit button1
  • Door contact input1
  • TAMPER1
  • USB1
  • Capacity
  • User capacity3000
  • Card capacity3000
  • Face capacity3000
  • Fingerprint capacity3000
  • Event capacity150000
  • Authentication
  • Card typeM1 card
  • Card reading frequency13.56 MHz
  • Face recognition duration＜ 0.2 s
  • Face recognition accuracy rate＞99%
  • Face recognition distance0.3 to 1.5 m
  • General
  • ButtonNo physical call button
  • Power supply12 VDC, 1 A, standard PoE
  • Working temperature-30 °C to 60 °C (-22 °F to 140 °F)
  • Working humidity10 to 90% (No condensing)
  • Dimensions165.2 mm × 75.7 mm × 25 mm (6.5" × 2.98" × 0.98")
  • InstallationWall mounting
  • Protective levelIP65
  • LanguageEnglish, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Turkish, French
  • WeightGross weight: 0.93 kg (2.05 lbs) Net weight: 0.36 kg (0.79 lbs)
  • Function
  • QR code recognitionSupport scan QR code via camera
  • Face anti-spoofingSupport
  • Two-way audioSupport
  • Audio promptSupport
  • Time synchronizationSupport
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

System
Operating system
Linux
Display
Screen size
4.5-inch
Resolution
480 × 854
Type
LCD
Operation method
Touchable
Video
Lens
× 2
Video standard
PAL (Default) and NTSC
Network
Wired network
10/100 Mbps self adaptive
Wi-Fi
Not support
Interface
Alarm input
2
Alarm output
1
PoE
IEEE802.3at, standard PoE
Network interface
1
RS-485
1
Wiegand
1, supports Wiegand input, single direction
Lock control
1
Exit button
1
Door contact input
1
TAMPER
1
USB
1
Capacity
User capacity
3000
Card capacity
3000
Face capacity
3000
Fingerprint capacity
3000
Event capacity
150000
Authentication
Card type
M1 card
Card reading frequency
13.56 MHz
Face recognition duration
＜ 0.2 s
Face recognition accuracy rate
＞99%
Face recognition distance
0.3 to 1.5 m
General
Button
No physical call button
Power supply
12 VDC, 1 A, standard PoE
Working temperature
-30 °C to 60 °C (-22 °F to 140 °F)
Working humidity
10 to 90% (No condensing)
Dimensions
165.2 mm × 75.7 mm × 25 mm (6.5" × 2.98" × 0.98")
Installation
Wall mounting
Protective level
IP65
Language
English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Turkish, French
Weight
Gross weight: 0.93 kg (2.05 lbs) Net weight: 0.36 kg (0.79 lbs)
Function
QR code recognition
Support scan QR code via camera
Face anti-spoofing
Support
Two-way audio
Support
Audio prompt
Support
Time synchronization
Support
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
System
  • Operating systemLinux
Display
  • Screen size4.5-inch
  • Resolution480 × 854
  • TypeLCD
  • Operation methodTouchable
Video
  • Lens× 2
  • Video standardPAL (Default) and NTSC
Network
  • Wired network10/100 Mbps self adaptive
  • Wi-FiNot support
Interface
  • Alarm input2
  • Alarm output1
  • PoEIEEE802.3at, standard PoE
  • Network interface1
  • RS-4851
  • Wiegand1, supports Wiegand input, single direction
  • Lock control1
  • Exit button1
  • Door contact input1
  • TAMPER1
  • USB1
Capacity
  • User capacity3000
  • Card capacity3000
  • Face capacity3000
  • Fingerprint capacity3000
  • Event capacity150000
Authentication
  • Card typeM1 card
  • Card reading frequency13.56 MHz
  • Face recognition duration＜ 0.2 s
  • Face recognition accuracy rate＞99%
  • Face recognition distance0.3 to 1.5 m
General
  • ButtonNo physical call button
  • Power supply12 VDC, 1 A, standard PoE
  • Working temperature-30 °C to 60 °C (-22 °F to 140 °F)
  • Working humidity10 to 90% (No condensing)
  • Dimensions165.2 mm × 75.7 mm × 25 mm (6.5" × 2.98" × 0.98")
  • InstallationWall mounting
  • Protective levelIP65
  • LanguageEnglish, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Turkish, French
  • WeightGross weight: 0.93 kg (2.05 lbs) Net weight: 0.36 kg (0.79 lbs)
Function
  • QR code recognitionSupport scan QR code via camera
  • Face anti-spoofingSupport
  • Two-way audioSupport
  • Audio promptSupport
  • Time synchronizationSupport
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
