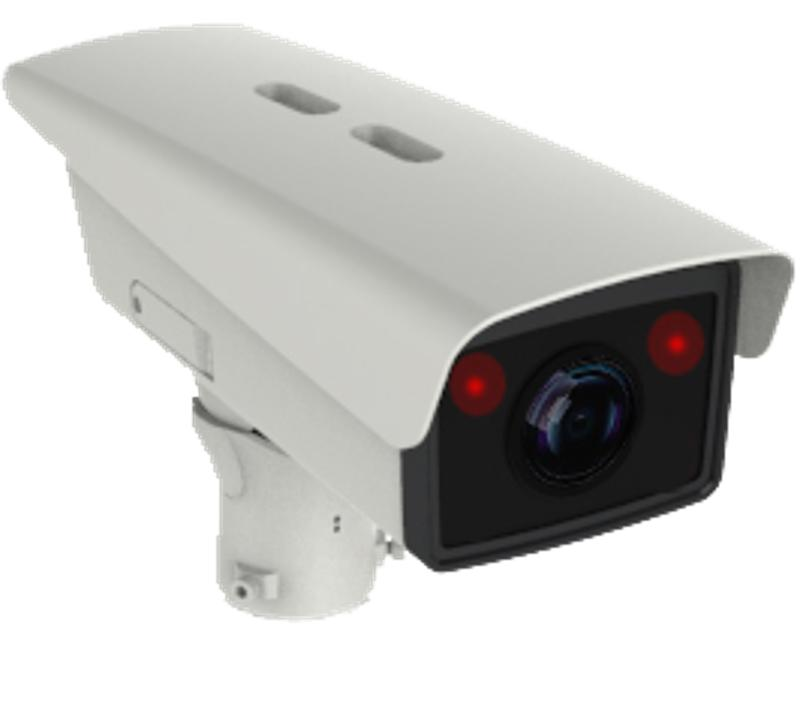

4MP ANPR Intelligent Entrance Video Unit

1/3" Progressive Scan CMOS
Up to 2688 × 1520 resolution with real-time video
2x pics high-performance LEDs (integrated white light and IR)
3.1 to 6mm motorized vari-focal lens
Support relay output to control vehicle barrier
Support loop triggering or radar triggering
Support multi-frame LPR
Support dirty license plate recognition
Support quick pass of multiple vehicles
Support vehicle type, vehicle color and vehicle brand recognition
Integrated shield, lights, TF Card (up to 512 G)
Up to 100,000 allowlists and blocklists
Offline control
PoE (802.3af)
One-touch focus
Manual capture and ANPR

View Less

Available models:

DS-TCG405-E(12V/Poe)

DS-TCG405-E

Especificación
Resources
Accesorios

Cámara
Tipo de sensor1/3" Progressive Scan CMOS
Max. Resolución2688 × 1520
Iluminación mínimaColor: 0.022Lux@(F1.9, AGC ON) B/W: 0.011Lux@(F1.9, AGC ON)
Obturador1/30 s to 1/100,000 s
Interruptor día/nocheSupported
IR Cut FilterIR cut filter Blue glass module to reduce ghost phenomenon

Lente
Lente3.1 to 6 mm
Apertura3.1 to 6 mm：F1.9
Focal Length & FoV 3.1 to 6 mm, horizontal FoV: 105.5° to 51.4°, vertical FoV: 55.9° to 28.9°, diagonal FoV: 126.9° to 59.2°
EnfoqueAuto,Vari-focal lens, motor-driven lens

Luz suplementaria
Tipo de luz suplementariaIR Light, Warm White Light
Rango de luz suplementariaVideo: 3.1 mm to 6 mm: 10 m Vehicle License Plate: 3.1 mm to 6 mm: 5 m
IR WavelengthWarm White Light 3000 K, IR Light 850 nm

Imagen
WDR140 dB
Main stream50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-stream50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Configuración de imagenSaturation: 0 to 100 Brightness: 0 to 100 Contrast: 0 to 100 Gain: 0 to 100 3D DNR: Off, Normal, and Expert modes are selectable. White balance: White Balance 1 and White Balance 2 are selectable.
Interruptor de parámetros de imagenYes
WDR SwitchOn, Time, Brightness
Frame Rate25 fps (P)/30 fps (N)

Vídeo
ROI8 regions respectively for main stream and sub-stream, 6 levels for each region.
Compresión de vídeoMain stream: H.265/H.264/MJPEG, Sub-stream: H.265/H.264/MJPEG,
Tipo H.264Low profile Medium profile High Profile
Vídeo bitrate32 Kbps to 16 Mbps
Bit Rate TypeConstant, Variable
Codificación de video escalable (SVC)H.265 and H.264 encoding

Capture Mode
Trigger TypeVideo Detection, I/O Coil, Radar Mixed Traffic
Picture TypeScene Picture, Scene Picture + Close-up Picture
Scene ModeEntrance & Exit Toll Gate, Underground Parking Entrance & Exit
Capture TypeStrobe Light Mode

Capture Parameters
Formato de imagenJPEG
Resolución de captura2688 × 1520
Reconocimiento de matrículaForward, Backward, Bidirection
LED ControlSupports automatic light control/time control of LEDs
Reconocimiento inteligenteANPR, Motor Vehicle Feature, Vehicle Color Recognition, Enable Vehicle Manufacturer Recognition
Capture Picture OverlayLocation, Capture Time, Plate Number, Capture No., Vehicle Color Vehicle Type

Entrance and Exit
Barrier Gate Control ModeBy Camera/Platform/Mixed
Keep Boom Pole Open for Following VehicleEnable/Disable
Lock Barrier Gate for Large-Sized VehicleYes
Salida de Relé2-ch relay output, supporting opening and closing of barrier gates
Barrier Gate StatusNone, Barrier Gate Close In Place, Barrier Gate Open In Place, Remote Control Open In Place
Allowlist and BlocklistUp to 100,000 allowlist and blocklist totally Note: Only when the TF card is available, can the function take effect.

Red
Almacenamiento en redNAS (NFS, SMB/CIFS), auto network replenishment (ANR) together with high-end Hikvision memory card, memory card encryption and health detection are supported.
ProtocoloTCP/IP, ICMP, HTTP, HTTPS, FTP Upload Picture, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, SNMP, IGMP, QoS, IPv6, UDP, SSL/TLS, WebSocket
APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP, Otap, Guarding Vision Platform
ClienteHik-Central,SDKdemo,PMS
Navegador webPlug-in required live view: IE10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local service: Chrome 41.0+, Firefox 30.0+
SeguridadPassword protection, complicated password, HTTPS encryption, watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2

Interfaz
Audio1 input (line in), 1 output (line out)
Modo de comunicación1 RJ45 10M/100M Ethernet port
Entrada de alarma3-ch triggered inputs
Salida de alarma1-ch alarm output
WiegandNot support
RS-2321-ch RS-232 serial port
RS-4851-ch RS-485 serial port
Interfaz de red1 RJ45 10M/100M self-adaptive Ethernet port
Memory Card Slot1 TF card slot, up to 1 TB

Función inteligente
LPR AccuracyCapture rate > 98% Vehicle moving direction recognition accuracy > 98.5% LPR accuracy > 98% Mistaken capture rate < 2% European: LPR accuracy > 98% Country/Region recognition accuracy > 95%
Vehicle Type RecognitionCar/Van/Bus/Truck/Light Truck/SUV_MPV/Pickup/Pedestrian/Motorcycle/Tricycle
Vehicle ColorRed, Yellow (including orange, golden), Green, Cyan, Blue, Purple, Pink, Brown, White, Gray (including silver), Black
Vehicle Brand84 manufacturers: Hyundai, Toyota, KIA, Honda, Volkswagen, Benz, Nissan, Ford, Isuzu, BMW, Chevrolet, Mitsubishi, Renault, Opel, Suzuki, Skoda, Daewoo, Audi, Mazda, GAC HINO, Peugeot, SsangYong, Citroen, Fiat, Scania, MAN, Volvo, Lexus, Seat, Land Rover, Daihatsu, Dongwo, Subaru, Iveco, MINI, JEEP, Porsche, Chery, Dodge, Chrysler, Acura, Alfa Romeo, Great Wall, Infiniti, Smart, Saic Maxus, JAC, Jaguar, GMC, Lincoln, JMC, SAAB, FAW, Yutong, Guangzhou Yunbao, Joylong, Geely, Cadillac, JBC, An‘kai, Haima, Foton, King Long, Dongfeng, Geely-Emgrand, Perodua, UD, BYD, Renault Samsung, Proton, HICOM, Malaysia_Unknown 1, Hyundai-Rohens, SsangYong-Old Version, Equus-Old Version, CNHTC, Rolls-Royce, Beiben Truck, Haval, Hino, Kia-Borrego, Chang‘an, Alfa, FORO
ANPR Supported Country/RegionMiddle East: The United Arab Emirates (Abu Dhabi, Ajman, Dubai, Fujairah, Ras Al Khaimah, Sharjah and Umm Al Quwain), Qatar, Iraq, Egypt, Jordan, Kuwait, Saudi Arabia, Pakistan, Oman, Lebanon, Bahrain Africa: Nigeria, Kenya, Ivory Coast , South Africa, Tanzania, Mauritius, Morocco, Tunisia, Sierra Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Senegal, Algeria Asia-Pacific: Australia, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam, the Philippines, Taiwan, Myanmar, India, Mongolia, Cambodia, Laos, Bangladesh, Nepal, Sri Lanka America: Canada, Argentina, Chile, Paraguay, Uruguay, El Salvador, Bolivia, Colombia, Brazil, Ecuador, Peru, Mexico, Panama, Costa Rica, Trinidad and Tobago, the Dominican Republic, Guatemala Europe: Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, the Republic of North Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, the UK, Ireland, Germany, Italy, Austria, Israel, Palestinian, Belgium, Luxembourg, Albania, Serbia, Romania, Montenegro, Denmark, Finland, Sweden, Slovenia, Portugal, Malta, Cyprus, Iceland, Liechtenstein, Bosnia and Herzegovina Russian-Speaking Regions: Azerbaijan, Belarus, Kazakhstan, Lithuania, Georgia, Estonia, Latvia, Russia, Ukraine, Moldova, Uzbekistan, Kyrgyzstan, Armenia, Turkmenistan, Tajikistan

Certificaciones
EMCCE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EEN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014); KC (KN 32: 2015, KN 35: 2015)
SeguridadCB (IEC 62368-1: 2014 + A11); CE-LVD (EN 62368-1: 2014/A11: 2017); BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005);
AmbienteCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
ProtecciónIK10 (IEC 62262: 2002), IP67 (IEC 60529-2013)

General
Temperatura de trabajo y humedad-25°C to 70°C (-13°F to 158°F) 90% or less (non-condensing)
Fuente de alimentación12 to 24 VDC/PoE (802.3at, 44 V to 57 V), 300 mA to 230 mA
Consumo de trabajo10 W Max.
Dimensiones415 mm × 145 mm × 145 mm (16.34 × 5.71 × 5.71 inch)
3.25 kg (7.17 lb.)
Weight (with Package)4.3 kg (9.48 lb.)
Dimensions (with Package)480 × 435 × 205 mm (18.90× 17.13 × 8.07 inch)
Condiciones de almacenajeTemperature: -20 °C to 70 °C (- 4°F to 158 °F) Humidity: 95% (non-condensing)
Condiciones de inicio y funcionamientoTemperature: -30 °C to 70 °C (-22 °F to 158 °F) Humidity: 95% (non-condensing)
Idioma33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Cámara

Tipo de sensor

1/3" Progressive Scan CMOS

Max. Resolución

2688 × 1520

Iluminación mínima

Color: 0.022Lux@(F1.9, AGC ON) B/W: 0.011Lux@(F1.9, AGC ON)

Obturador

1/30 s to 1/100,000 s

Interruptor día/noche

Supported

IR Cut Filter

IR cut filter Blue glass module to reduce ghost phenomenon

Lente

3.1 to 6 mm

Apertura

3.1 to 6 mm：F1.9

Focal Length & FoV

3.1 to 6 mm, horizontal FoV: 105.5° to 51.4°, vertical FoV: 55.9° to 28.9°, diagonal FoV: 126.9° to 59.2°

Enfoque

Auto,Vari-focal lens, motor-driven lens

Luz suplementaria

Tipo de luz suplementaria

IR Light, Warm White Light

Rango de luz suplementaria

Video: 3.1 mm to 6 mm: 10 m Vehicle License Plate: 3.1 mm to 6 mm: 5 m

IR Wavelength

Warm White Light 3000 K, IR Light 850 nm

Imagen

WDR

140 dB

Main stream

50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-stream

50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

Configuración de imagen

Saturation: 0 to 100 Brightness: 0 to 100 Contrast: 0 to 100 Gain: 0 to 100 3D DNR: Off, Normal, and Expert modes are selectable. White balance: White Balance 1 and White Balance 2 are selectable.

Interruptor de parámetros de imagen

Yes

WDR Switch

On, Time, Brightness

Frame Rate

25 fps (P)/30 fps (N)

Vídeo

ROI

8 regions respectively for main stream and sub-stream, 6 levels for each region.

Compresión de vídeo

Main stream: H.265/H.264/MJPEG, Sub-stream: H.265/H.264/MJPEG,

Tipo H.264

Low profile Medium profile High Profile

Vídeo bitrate

32 Kbps to 16 Mbps

Bit Rate Type

Constant, Variable

Codificación de video escalable (SVC)

H.265 and H.264 encoding

Capture Mode

Trigger Type

Video Detection, I/O Coil, Radar Mixed Traffic

Picture Type

Scene Picture, Scene Picture + Close-up Picture

Scene Mode

Entrance & Exit Toll Gate, Underground Parking Entrance & Exit

Capture Type

Strobe Light Mode

Capture Parameters

Formato de imagen

JPEG

Resolución de captura

2688 × 1520

Reconocimiento de matrícula

Forward, Backward, Bidirection

LED Control

Supports automatic light control/time control of LEDs

Reconocimiento inteligente

ANPR, Motor Vehicle Feature, Vehicle Color Recognition, Enable Vehicle Manufacturer Recognition

Capture Picture Overlay

Location, Capture Time, Plate Number, Capture No., Vehicle Color Vehicle Type

Entrance and Exit

Barrier Gate Control Mode

By Camera/Platform/Mixed

Keep Boom Pole Open for Following Vehicle

Enable/Disable

Lock Barrier Gate for Large-Sized Vehicle

Yes

Salida de Relé

2-ch relay output, supporting opening and closing of barrier gates

Barrier Gate Status

None, Barrier Gate Close In Place, Barrier Gate Open In Place, Remote Control Open In Place

Allowlist and Blocklist

Up to 100,000 allowlist and blocklist totally Note: Only when the TF card is available, can the function take effect.

Red

Almacenamiento en red

NAS (NFS, SMB/CIFS), auto network replenishment (ANR) together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Protocolo

TCP/IP, ICMP, HTTP, HTTPS, FTP Upload Picture, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, SNMP, IGMP, QoS, IPv6, UDP, SSL/TLS, WebSocket

API

Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP, Otap, Guarding Vision Platform

Cliente

Hik-Central,SDKdemo,PMS

Navegador web

Plug-in required live view: IE10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local service: Chrome 41.0+, Firefox 30.0+

Seguridad

Password protection, complicated password, HTTPS encryption, watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2

Interfaz

Audio

1 input (line in), 1 output (line out)

Modo de comunicación

1 RJ45 10M/100M Ethernet port

Entrada de alarma

3-ch triggered inputs

Salida de alarma

1-ch alarm output

Wiegand

Not support

RS-232

1-ch RS-232 serial port

RS-485

1-ch RS-485 serial port

Interfaz de red

1 RJ45 10M/100M self-adaptive Ethernet port

Memory Card Slot

1 TF card slot, up to 1 TB

Función inteligente

LPR Accuracy

Capture rate > 98% Vehicle moving direction recognition accuracy > 98.5% LPR accuracy > 98% Mistaken capture rate < 2% European: LPR accuracy > 98% Country/Region recognition accuracy > 95%

Vehicle Type Recognition

Car/Van/Bus/Truck/Light Truck/SUV_MPV/Pickup/Pedestrian/Motorcycle/Tricycle

Vehicle Color

Red, Yellow (including orange, golden), Green, Cyan, Blue, Purple, Pink, Brown, White, Gray (including silver), Black

Vehicle Brand

84 manufacturers: Hyundai, Toyota, KIA, Honda, Volkswagen, Benz, Nissan, Ford, Isuzu, BMW, Chevrolet, Mitsubishi, Renault, Opel, Suzuki, Skoda, Daewoo, Audi, Mazda, GAC HINO, Peugeot, SsangYong, Citroen, Fiat, Scania, MAN, Volvo, Lexus, Seat, Land Rover, Daihatsu, Dongwo, Subaru, Iveco, MINI, JEEP, Porsche, Chery, Dodge, Chrysler, Acura, Alfa Romeo, Great Wall, Infiniti, Smart, Saic Maxus, JAC, Jaguar, GMC, Lincoln, JMC, SAAB, FAW, Yutong, Guangzhou Yunbao, Joylong, Geely, Cadillac, JBC, An‘kai, Haima, Foton, King Long, Dongfeng, Geely-Emgrand, Perodua, UD, BYD, Renault Samsung, Proton, HICOM, Malaysia_Unknown 1, Hyundai-Rohens, SsangYong-Old Version, Equus-Old Version, CNHTC, Rolls-Royce, Beiben Truck, Haval, Hino, Kia-Borrego, Chang‘an, Alfa, FORO

ANPR Supported Country/Region

Middle East: The United Arab Emirates (Abu Dhabi, Ajman, Dubai, Fujairah, Ras Al Khaimah, Sharjah and Umm Al Quwain), Qatar, Iraq, Egypt, Jordan, Kuwait, Saudi Arabia, Pakistan, Oman, Lebanon, Bahrain Africa: Nigeria, Kenya, Ivory Coast , South Africa, Tanzania, Mauritius, Morocco, Tunisia, Sierra Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Senegal, Algeria Asia-Pacific: Australia, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam, the Philippines, Taiwan, Myanmar, India, Mongolia, Cambodia, Laos, Bangladesh, Nepal, Sri Lanka America: Canada, Argentina, Chile, Paraguay, Uruguay, El Salvador, Bolivia, Colombia, Brazil, Ecuador, Peru, Mexico, Panama, Costa Rica, Trinidad and Tobago, the Dominican Republic, Guatemala Europe: Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, the Republic of North Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, the UK, Ireland, Germany, Italy, Austria, Israel, Palestinian, Belgium, Luxembourg, Albania, Serbia, Romania, Montenegro, Denmark, Finland, Sweden, Slovenia, Portugal, Malta, Cyprus, Iceland, Liechtenstein, Bosnia and Herzegovina Russian-Speaking Regions: Azerbaijan, Belarus, Kazakhstan, Lithuania, Georgia, Estonia, Latvia, Russia, Ukraine, Moldova, Uzbekistan, Kyrgyzstan, Armenia, Turkmenistan, Tajikistan

Certificaciones

EMC

CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EEN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014); KC (KN 32: 2015, KN 35: 2015)

Seguridad

CB (IEC 62368-1: 2014 + A11); CE-LVD (EN 62368-1: 2014/A11: 2017); BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005);

Ambiente

CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Protección

IK10 (IEC 62262: 2002), IP67 (IEC 60529-2013)

General

Temperatura de trabajo y humedad

-25°C to 70°C (-13°F to 158°F) 90% or less (non-condensing)

Fuente de alimentación

12 to 24 VDC/PoE (802.3at, 44 V to 57 V), 300 mA to 230 mA

Consumo de trabajo

10 W Max.

Dimensiones

415 mm × 145 mm × 145 mm (16.34 × 5.71 × 5.71 inch)

3.25 kg (7.17 lb.)

Weight (with Package)

4.3 kg (9.48 lb.)

Dimensions (with Package)

480 × 435 × 205 mm (18.90× 17.13 × 8.07 inch)

Condiciones de almacenaje

Temperature: -20 °C to 70 °C (- 4°F to 158 °F) Humidity: 95% (non-condensing)

Condiciones de inicio y funcionamiento

Temperature: -30 °C to 70 °C (-22 °F to 158 °F) Humidity: 95% (non-condensing)

Idioma

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
