DS-MP5604

HOT

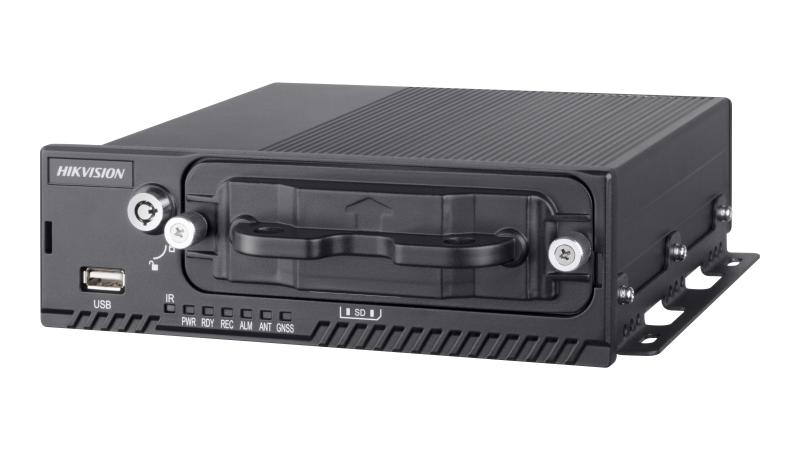

4-ch 1080p, H.265, 1xHDD/SSD Mobile DVR

Supports 4-ch 2 MP analog cameras and 4-ch 2 MP IP cameras
Efficient H.265 compression technology
Supports 1 × 2.5 inch HDD/SSD (up to 2 TB for each), and 1×SD (up to 256 GB)Supports 3G/4G and Wi-Fi modules for communication
Supports GPS positioning

View Less

DS-MP5604

Available models:

DS-MP5604

Entrada vídeo/audio
Cámara Analógica4 analog cameras, up to 1080p resolution
Cámara IP4 IP cameras, up to 1080p resolution (extendable via PoE switch)
Audio bidireccional1, integrated in EXT.DEV interface

Almacenamiento
HDD/SSD1 × 2.5 inch HDD/SSD, up to 2 TB for each HDD/SSD；A dummy HDD with USB 3.0 interface
Tarjeta SD1 × SD card, up to 256 GB

General
Temperatura de trabajoDevice that provides dummy HDD with heating function: -30 °C to +60 °C (-22 °F to +140°F) Other devices: -10 °C to +60 °C (+14 °F to +140°F)
Condiciones de Humedad10% to 95%
Fuente de alimentación9 to 32 VDC
ConsumoStandby: ≤ 0.5 W Full load: ≤ 45 W Note: Without peripheral and storage media ≤ 20 W
Método de funcionamientoMouse, IR remote control, Web control, and touchscreen
Dimensiones (W × D × H)206 × 225.4 × 60.1 mm (8.1 × 8.87 × 2.37 inch)
Peso (sin medios de almacenamiento)1.7 kg (3.7 lb)

Posicionamiento
GNSS (Global Navigation Satellite System)GPS (Global Positioning System) & GLONASS (Global Navigation Satellite System), 1 × Rosenberger antenna

Salida vídeo/audio
Salida de VídeoMain output: 1, integrated in EXT.DEV interface VGA: 1
Salida de audio1

Parámetros de Codificación/Decodificación
Compresión de vídeoH.264/H.265
Resolución de codificaciónMain stream: 1080p/720p/WD1/4CIF；Sub-stream: 720P/WD1/4CIF/2CIF/CIF
Frame Rate PAL: 1 to 15 fps@1080P; NTSC: 1 to 15 fps@1080P; PAL: 1 to 25 fps@720P; NTSC: 1 to 30 fps@720P
Compresión de audioG.711/G.722.1
Stream TypeVideo, video & audio
Audio Bitrate16 Kbps
Dual StreamSupported

Red inalámbrica
Marcación 3G/4G1 × 3G/4G card slot, 1 × Rosenberger antenna
Wi-FiWI58 model: 2 × 5.8 G Wi-Fi SMA antenna

Interfaces
Interfaz de red1 × 10M/100M M12 6-pin aviation connector
Puerto Serial2 × RS-232, 1 × RS-422 (integrated in EXT.DEV interface)
Interfaz USBFront panel: 1 × USB 2.0 Rear panel: 1 × USB 2.0 (5-pin aviation connector)
Entrada de sensor4 high/low level signal inputs
Entrada de alarma4 high/low level signal inputs, 1 pulse signal input, 1 BUTTON input
Salida de alarma2 relay signal outputs

Especificación

Entrada vídeo/audio

Cámara Analógica

4 analog cameras, up to 1080p resolution

Cámara IP

4 IP cameras, up to 1080p resolution (extendable via PoE switch)

Audio bidireccional

1, integrated in EXT.DEV interface

Almacenamiento

HDD/SSD

1 × 2.5 inch HDD/SSD, up to 2 TB for each HDD/SSD；A dummy HDD with USB 3.0 interface

Tarjeta SD

1 × SD card, up to 256 GB

General

Temperatura de trabajo

Device that provides dummy HDD with heating function: -30 °C to +60 °C (-22 °F to +140°F) Other devices: -10 °C to +60 °C (+14 °F to +140°F)

Condiciones de Humedad

10% to 95%

Fuente de alimentación

9 to 32 VDC

Consumo

Standby: ≤ 0.5 W Full load: ≤ 45 W Note: Without peripheral and storage media ≤ 20 W

Método de funcionamiento

Mouse, IR remote control, Web control, and touchscreen

Dimensiones (W × D × H)

206 × 225.4 × 60.1 mm (8.1 × 8.87 × 2.37 inch)

Peso (sin medios de almacenamiento)

1.7 kg (3.7 lb)

Posicionamiento

GNSS (Global Navigation Satellite System)

GPS (Global Positioning System) & GLONASS (Global Navigation Satellite System), 1 × Rosenberger antenna

Salida vídeo/audio

Salida de Vídeo

Main output: 1, integrated in EXT.DEV interface VGA: 1

Salida de audio

Parámetros de Codificación/Decodificación

Compresión de vídeo

H.264/H.265

Resolución de codificación

Main stream: 1080p/720p/WD1/4CIF；Sub-stream: 720P/WD1/4CIF/2CIF/CIF

Frame Rate

PAL: 1 to 15 fps@1080P; NTSC: 1 to 15 fps@1080P; PAL: 1 to 25 fps@720P; NTSC: 1 to 30 fps@720P

Compresión de audio

G.711/G.722.1

Stream Type

Video, video & audio

Audio Bitrate

16 Kbps

Dual Stream

Supported

Red inalámbrica

Marcación 3G/4G

1 × 3G/4G card slot, 1 × Rosenberger antenna

Wi-Fi

WI58 model: 2 × 5.8 G Wi-Fi SMA antenna

Interfaces

Interfaz de red

1 × 10M/100M M12 6-pin aviation connector

Puerto Serial

2 × RS-232, 1 × RS-422 (integrated in EXT.DEV interface)

Interfaz USB

Front panel: 1 × USB 2.0 Rear panel: 1 × USB 2.0 (5-pin aviation connector)

Entrada de sensor

4 high/low level signal inputs

Entrada de alarma

4 high/low level signal inputs, 1 pulse signal input, 1 BUTTON input

Salida de alarma

2 relay signal outputs
