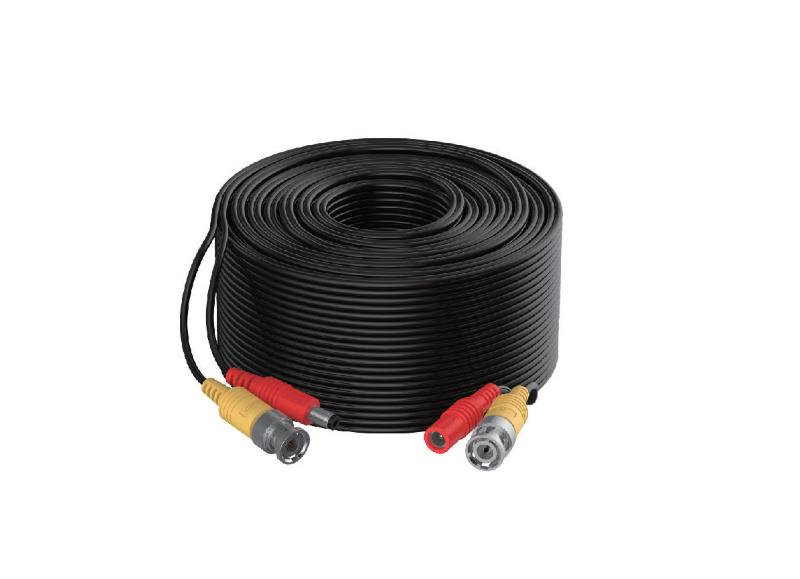

DS-1LH1S2C

HOT

Coaxial cable *1+Power wire *2

  • Mini RG59 Siamese cable：one coaxial cable and two-core power cord
  • Compatible with all CCTV analog systems, transmitting video and power simultaneously, saving wiring and no latency
  • Work for 4K/5MP/4MP/1080p/720p, AHD/CVI/TVI/CVBS security CCTV system
  • High-purity oxygen-free copper conductor material, featuring excellent transmission performance, easy to install，less construction work
  • Flame retardant PVC sheath for weatherproof indoor and outdoor use
  • Pre-made cable BNC and DC power connectors, fast connection for camera and back end equipment
  • Compliant with RoHS 2.0
View Less
View more
Sales Inquiry

Available models:

DS-1LH1S2C-10
DS-1LH1S2C-20
DS-1LH1S2C
HOT

Especificación

  • Coaxial Cable
  • Conductor Materialoxygen-free copper
  • Conductor Wire Gauge28 AWG
  • Conductor Diameter7*(0.12± 0.008)mm
  • Insulation MaterialFoam PE
  • Insulation Diameter1.6 ± 0.03 mm
  • Tape MaterialAluminum foil
  • Tape Lappingbonded
  • Braid MateriaCCAMX
  • Braiding Standard32*(0.12±0.008)mm
  • Impedancia75 ohms
  • Jacket MaterialPVC
  • Jacket Average Thickness≥ 0.2mm
  • Power Cable
  • Conductor MaterialCCA
  • Conductor Diameter7*(0.20 ± 0.01)mm
  • Insulation MaterialPVC(red,black)
  • Insulation Diameter1.0 ± 0.05 mm
  • Jacket MaterialPVC
  • Jacket Average Thickness≥ 0.2mm
  • Siamese Cable General
  • Length305m
  • Diameter2.8*5.6 ±0.1mm
  • ColorBlack
  • Temperatura de funcionamiento-20~60ºC
  • Temperatura de almacenamiento-10~50ºC
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Especificación

Coaxial Cable
Conductor Material
oxygen-free copper
Conductor Wire Gauge
28 AWG
Conductor Diameter
7*(0.12± 0.008)mm
Insulation Material
Foam PE
Insulation Diameter
1.6 ± 0.03 mm
Tape Material
Aluminum foil
Tape Lapping
bonded
Braid Materia
CCAMX
Braiding Standard
32*(0.12±0.008)mm
Impedancia
75 ohms
Jacket Material
PVC
Jacket Average Thickness
≥ 0.2mm
Power Cable
Conductor Material
CCA
Conductor Diameter
7*(0.20 ± 0.01)mm
Insulation Material
PVC(red,black)
Insulation Diameter
1.0 ± 0.05 mm
Jacket Material
PVC
Jacket Average Thickness
≥ 0.2mm
Siamese Cable General
Length
305m
Diameter
2.8*5.6 ±0.1mm
Color
Black
Temperatura de funcionamiento
-20~60ºC
Temperatura de almacenamiento
-10~50ºC
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Especificación
Coaxial Cable
  • Conductor Materialoxygen-free copper
  • Conductor Wire Gauge28 AWG
  • Conductor Diameter7*(0.12± 0.008)mm
  • Insulation MaterialFoam PE
  • Insulation Diameter1.6 ± 0.03 mm
  • Tape MaterialAluminum foil
  • Tape Lappingbonded
  • Braid MateriaCCAMX
  • Braiding Standard32*(0.12±0.008)mm
  • Impedancia75 ohms
  • Jacket MaterialPVC
  • Jacket Average Thickness≥ 0.2mm
Power Cable
  • Conductor MaterialCCA
  • Conductor Diameter7*(0.20 ± 0.01)mm
  • Insulation MaterialPVC(red,black)
  • Insulation Diameter1.0 ± 0.05 mm
  • Jacket MaterialPVC
  • Jacket Average Thickness≥ 0.2mm
Siamese Cable General
  • Length305m
  • Diameter2.8*5.6 ±0.1mm
  • ColorBlack
  • Temperatura de funcionamiento-20~60ºC
  • Temperatura de almacenamiento-10~50ºC
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
