Discontinued

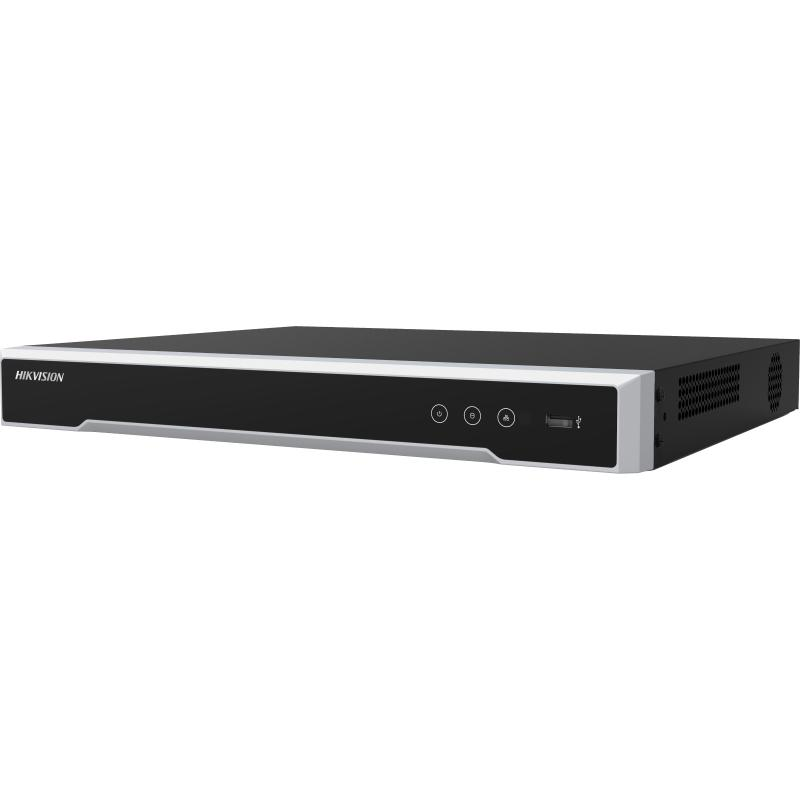

16-ch 1U 4K NVR

  • Up to 16-ch IP camera inputs
  • H.265+/H.265/H.264+/H.264 video formats
  • Up to 2-ch@8 MP or 4-ch@4 MP or 8-ch@1080p decoding capacity
  • 1 HDMI and 1 VGA interfaces, both interfaces support independent video output
  • 2 SATA interfaces for HDD connection (up to 10 TB capacity per HDD)
  • Up to 160 Mbps incoming bandwidth

View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-7616NI-K2
DS-7616NI-K2 Discontinued
Data Sheet

Especificación

  • Video and Audio
  • Entrada de vídeo IP16-ch
  • Incoming Bandwidth160 Mbps
  • Outgoing Bandwidth160 Mbps
  • HDMI Output4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
  • VGA Output1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
  • Video Output ModeHDMI/VGA independent output
  • Entrada de Audio1-ch, RCA (2.0 Vp-p, 1 KΩ)
  • Salida de audio1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1kΩ, using the audio input)
  • Descodificación
  • Formato de decodificaciónH.265/H.265+/H.264/H.264+
  • Resolución de grabación12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
  • Reproducción Sincrónica16-ch
  • Decodificación1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)
  • Stream TypeVideo, Video & Audio
  • Compresión de audioG.711ulaw/G.711alaw/G.722/G.726
  • Red
  • Conexión remota128-ch
  • Protocolo de redTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
  • Interfaz de red1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
  • Auxiliary Interface
  • SATA2 SATA interfaces
  • CapacidadUp to 10 TB capacity for each HDD
  • Interfaz USBFront panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
  • Alarma E/S4/1
  • General
  • Fuente de alimentación12 VDC, 3.33A
  • Consumo≤ 15 W (without HDD)
  • Temperatura de trabajo-10 °C to 55 °C (14 °F to 131 °F)
  • Condiciones de Humedad10 to 90 %
  • Dimensión (W × D × H)385 × 315× 52 mm (15.2" × 12.4" × 2.0")
  • ≤ 1 kg (without HDD, 2.2 lb.)
  • Certificación
  • FCCPart 15 Subpart B, ANSI C63.4-2014
  • CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Especificación

Video and Audio
Entrada de vídeo IP
16-ch
Incoming Bandwidth
160 Mbps
Outgoing Bandwidth
160 Mbps
HDMI Output
4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
VGA Output
1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
Video Output Mode
HDMI/VGA independent output
Entrada de Audio
1-ch, RCA (2.0 Vp-p, 1 KΩ)
Salida de audio
1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio
1-ch, RCA (2.0 Vp-p, 1kΩ, using the audio input)
Descodificación
Formato de decodificación
H.265/H.265+/H.264/H.264+
Resolución de grabación
12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Reproducción Sincrónica
16-ch
Decodificación
1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)
Stream Type
Video, Video & Audio
Compresión de audio
G.711ulaw/G.711alaw/G.722/G.726
Red
Conexión remota
128-ch
Protocolo de red
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Interfaz de red
1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Auxiliary Interface
SATA
2 SATA interfaces
Capacidad
Up to 10 TB capacity for each HDD
Interfaz USB
Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
Alarma E/S
4/1
General
Fuente de alimentación
12 VDC, 3.33A
Consumo
≤ 15 W (without HDD)
Temperatura de trabajo
-10 °C to 55 °C (14 °F to 131 °F)
Condiciones de Humedad
10 to 90 %
Dimensión (W × D × H)
385 × 315× 52 mm (15.2" × 12.4" × 2.0")
≤ 1 kg (without HDD, 2.2 lb.)
Certificación
FCC
Part 15 Subpart B, ANSI C63.4-2014
CE
EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Especificación
Video and Audio
  • Entrada de vídeo IP16-ch
  • Incoming Bandwidth160 Mbps
  • Outgoing Bandwidth160 Mbps
  • HDMI Output4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
  • VGA Output1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
  • Video Output ModeHDMI/VGA independent output
  • Entrada de Audio1-ch, RCA (2.0 Vp-p, 1 KΩ)
  • Salida de audio1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1kΩ, using the audio input)
Descodificación
  • Formato de decodificaciónH.265/H.265+/H.264/H.264+
  • Resolución de grabación12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
  • Reproducción Sincrónica16-ch
  • Decodificación1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)
  • Stream TypeVideo, Video & Audio
  • Compresión de audioG.711ulaw/G.711alaw/G.722/G.726
Red
  • Conexión remota128-ch
  • Protocolo de redTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
  • Interfaz de red1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Auxiliary Interface
  • SATA2 SATA interfaces
  • CapacidadUp to 10 TB capacity for each HDD
  • Interfaz USBFront panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
  • Alarma E/S4/1
General
  • Fuente de alimentación12 VDC, 3.33A
  • Consumo≤ 15 W (without HDD)
  • Temperatura de trabajo-10 °C to 55 °C (14 °F to 131 °F)
  • Condiciones de Humedad10 to 90 %
  • Dimensión (W × D × H)385 × 315× 52 mm (15.2" × 12.4" × 2.0")
  • ≤ 1 kg (without HDD, 2.2 lb.)
Certificación
  • FCCPart 15 Subpart B, ANSI C63.4-2014
  • CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

Firmware

For better user experience, we highly recommend you to update your device to the latest firmware asap.

Firmware

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V4.74.200_230522
K51_V4.74.200build230522_ReleaseNotes
Aplicado a:
DS-7616NI-K2
