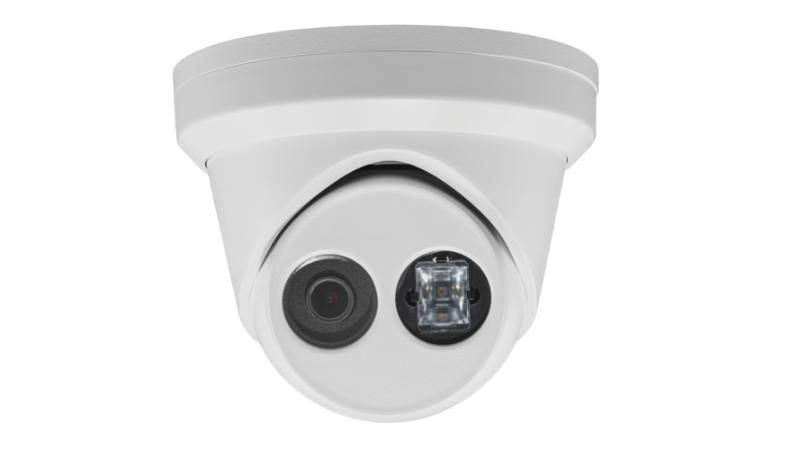

DS-2CD2363G0-I(U)

6 MP WDR Fixed Turret Network Camera with Build-in Mic

  • High quality imaging with 6 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • -U: built-in microphone for real-time audio security
  • Water and dust resistant (-I: IP67/-IU: IP66)
  • Robust structure design with full metal materials
View Less
View more
DS-2CD2363G0-IEOL
DS-2CD2363G0-IUEOL
Sales Inquiry

Available models:

DS-2CD2363G0-I(2.8mm)

Available models:

DS-2CD2363G0-IU(2.8mm)
DS-2CD2363G0-I(U)

Especificación

  • Cámara
  • Sensor de imagen 1/2.9" Progressive Scan CMOS
  • Iluminación mínima Color: 0.01 lux @(F1.2, AGC ON), 0.028 lux @(F2.0, AGC ON), 0 lux with IR
  • Velocidad de obturación 1/3 s to 1/100,000 s
  • Obturador lento Yes
  • Wide dynamic range 120dB
  • Día y Noche IR Cut Filter
  • Ajuste de ángulo Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
  • Lente
  • Enfoque Fixed
  • Lente 2.8/4/6/8 mm
  • FOV 2.8 mm, horizontal FOV: 97°, vertical FOV: 63°, diagonal FOV: 120°,4 mm, horizontal FOV: 78°, vertical FOV: 50°, diagonal FOV: 97°,6 mm, horizontal FOV: 60°, vertical FOV: 39°, diagonal FOV: 75°,8 mm, horizontal FOV: 39.5°, vertical FOV: 26°, diagonal FOV: 48°
  • Apertura F2.0
  • Montura del lente M12
  • Tipo de apertura Fixed
  • Iluminador
  • Rango IR Up to 30 m
  • Longitud de onda 850nm
  • Vídeo
  • Max. Resolución 3072 × 2048
  • Main stream 50Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720),60Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 30fps (2560 × 1440, 1920 × 1080, 1280 × 720)
  • Sub Stream 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
  • Third Stream 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288),60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
  • Compresión de video Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
  • Vídeo bitrate 32 Kbps to 16 Mbps
  • Tipo H.264 Main Profile/High Profile
  • Tipo H.265 Main Profile
  • H.264 + Main stream supports
  • H.265 + Main stream supports
  • Codificación de video escalable (SVC) H.264 and H.265 encoding support
  • Audio
  • Compresión de audio G722.1/G.711/G726/MP2L2/PCM/MP3
  • Velocidad de bits de audio 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3)
  • Red
  • Vista en vivo simultánea Up to 6 channels
  • API ONVIF (PROFILE S, PROFILE G), ISAPI
  • Protocolos TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
  • Usuario/operador Up to 32 users,3 levels: Administrator, Operator and User
  • Almacenamiento en red Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
  • Cliente iVMS-4200, Hik-Connect, Hik-Central
  • Navegador web Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+
  • Activador de alarma Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
  • Imagen
  • Interruptor día/noche Day/Night/Auto/Schedule
  • Recorte objetivo No
  • DNR 3D DNR
  • Mejora de la imagen BLC/3D DNR/HLC
  • Configuración de imagen Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
  • Interfaz
  • Salida de Vídeo No
  • Almacenamiento a bordo Built-in microSD/SDHC/SDXC slot, up to 128 GB
  • Restablecimiento de hardware Yes
  • Interfaz de comunicación 1 RJ45 10M/100M self-adaptive Ethernet port
  • Evento
  • Evento Básico Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
  • Evento inteligente Line crossing detection, intrusion detection, face detection
  • Detección de rostro Yes
  • General
  • Método de enlace Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, Email
  • Versión de firmware 5.6.3
  • Idioma del cliente web 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
  • Función general Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
  • Condiciones de inicio y funcionamiento -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
  • Fuente de alimentación 12 VDC ± 25%, Φ 5.5mm ,PoE(802.3af, class 3)
  • Consumo de energía y corriente 12 VDC, 0.5 A, max. 6.0 W,PoE: (802.3af, 36 V to 57 V), 0.3 A to 0.2 A, max. 7.5 W
  • Dimensión de la cámara Camera: Φ 127.3 × 95.9 mm (5″ × 3. 8″),Package: 150 × 150 × 141 mm (5.9″ × 5.9″ × 5.6″)
  • Peso de la cámara Camera: 620 g (1.4 lb.)
  • Certificaciones
  • Protección Without -U: Ingress protection: IP67 (IEC 60529-2013) With -U: Ingress protection: IP66 (IEC 60529-2013)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Especificación

Cámara
Sensor de imagen
1/2.9" Progressive Scan CMOS
Iluminación mínima
Color: 0.01 lux @(F1.2, AGC ON), 0.028 lux @(F2.0, AGC ON), 0 lux with IR
Velocidad de obturación
1/3 s to 1/100,000 s
Obturador lento
Yes
Wide dynamic range
120dB
Día y Noche
IR Cut Filter
Ajuste de ángulo
Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lente
Enfoque
Fixed
Lente
2.8/4/6/8 mm
FOV
2.8 mm, horizontal FOV: 97°, vertical FOV: 63°, diagonal FOV: 120°,4 mm, horizontal FOV: 78°, vertical FOV: 50°, diagonal FOV: 97°,6 mm, horizontal FOV: 60°, vertical FOV: 39°, diagonal FOV: 75°,8 mm, horizontal FOV: 39.5°, vertical FOV: 26°, diagonal FOV: 48°
Apertura
F2.0
Montura del lente
M12
Tipo de apertura
Fixed
Iluminador
Rango IR
Up to 30 m
Longitud de onda
850nm
Vídeo
Max. Resolución
3072 × 2048
Main stream
50Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720),60Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 30fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream
50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288),60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
Compresión de video
Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
Vídeo bitrate
32 Kbps to 16 Mbps
Tipo H.264
Main Profile/High Profile
Tipo H.265
Main Profile
H.264 +
Main stream supports
H.265 +
Main stream supports
Codificación de video escalable (SVC)
H.264 and H.265 encoding support
Audio
Compresión de audio
G722.1/G.711/G726/MP2L2/PCM/MP3
Velocidad de bits de audio
64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3)
Red
Vista en vivo simultánea
Up to 6 channels
API
ONVIF (PROFILE S, PROFILE G), ISAPI
Protocolos
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Usuario/operador
Up to 32 users,3 levels: Administrator, Operator and User
Almacenamiento en red
Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Cliente
iVMS-4200, Hik-Connect, Hik-Central
Navegador web
Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+
Activador de alarma
Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Imagen
Interruptor día/noche
Day/Night/Auto/Schedule
Recorte objetivo
No
DNR
3D DNR
Mejora de la imagen
BLC/3D DNR/HLC
Configuración de imagen
Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
Interfaz
Salida de Vídeo
No
Almacenamiento a bordo
Built-in microSD/SDHC/SDXC slot, up to 128 GB
Restablecimiento de hardware
Yes
Interfaz de comunicación
1 RJ45 10M/100M self-adaptive Ethernet port
Evento
Evento Básico
Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Evento inteligente
Line crossing detection, intrusion detection, face detection
Detección de rostro
Yes
General
Método de enlace
Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, Email
Versión de firmware
5.6.3
Idioma del cliente web
32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Función general
Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
Condiciones de inicio y funcionamiento
-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Fuente de alimentación
12 VDC ± 25%, Φ 5.5mm ,PoE(802.3af, class 3)
Consumo de energía y corriente
12 VDC, 0.5 A, max. 6.0 W,PoE: (802.3af, 36 V to 57 V), 0.3 A to 0.2 A, max. 7.5 W
Dimensión de la cámara
Camera: Φ 127.3 × 95.9 mm (5″ × 3. 8″),Package: 150 × 150 × 141 mm (5.9″ × 5.9″ × 5.6″)
Peso de la cámara
Camera: 620 g (1.4 lb.)
Certificaciones
Protección
Without -U: Ingress protection: IP67 (IEC 60529-2013) With -U: Ingress protection: IP66 (IEC 60529-2013)
