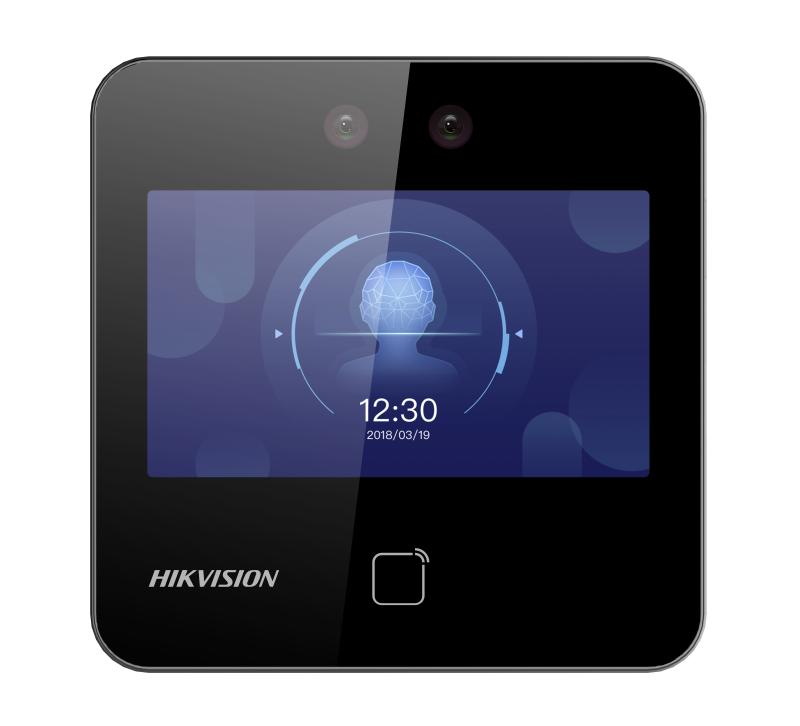

Value Series Face Access Terminal

Max.1500 faces capacity, and Max.3000 cards
Face Recognition Terminal, 4.3-inch LCD touch screen,2 Mega pixel wide-angle lens,Built-in M1 card reading module
Two-way audio with client software, indoor station, and main station; Supports TCP/IP, Wi-Fi
Supports ISAPI, ISUP5.0
Configuration via the web client
Face recognition. Distance: 0.3 m to 1.5 m
Duration < 0.2 s/User
Accuracy rate ≥ 99%

View Less

Data Sheet

Available models:

DS-K1T343MWX

Especificación
Resources
Accesorios

Data Sheet

pantalla
Screen size4.3 inch
Método de operaciónCapacitive touch screen
TipoLCD

Vídeo
Lente2
Resolución2 MP

Audio
Calidad de audioNoise suppression and echo cancellation

Red
Red cableadaSupport
Wi-FiSupport, 2.4 G, 802.11b/g/n

Interfaz
Interfaz de red1 RJ-45, 10/100 M self-adaptive
Lock control1
Botón de salida1
Entrada de contacto de puerta1
Tamper1
RS-4851 RS-485 (Half duplex, HIKVISION)
Wiegand1 Wiegand(Hik 26bit,Hik 34bit)
USB1

Autenticación
Tipo de tarjetaM1 card
Frecuencia de lectura de tarjeta13.56 MHz

General
Fuente de alimentación12 VDC, 1 A (power adapter included)
Temperatura de trabajo-10 °C to 40 °C (14 °F to 104 °F)
Humedad de trabajo0 to 90% (No condensing)
Dimensiones118.4 mm × 118.4 mm × 21.8 mm (4.66" × 4.66" × 0.86")
InstalaciónWall mounting, base mounting
IdiomaEnglish, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean; Japanese
PlatformHik-ProConnect and HikCentral Professional

Función
Face anti-spoofingSupport

pantalla

Screen size

4.3 inch

Método de operación

Capacitive touch screen

Tipo

LCD

Vídeo

Lente

Resolución

2 MP

Audio

Calidad de audio

Noise suppression and echo cancellation

Red

Red cableada

Support

Wi-Fi

Support, 2.4 G, 802.11b/g/n

Interfaz

Interfaz de red

1 RJ-45, 10/100 M self-adaptive

Lock control

Botón de salida

Entrada de contacto de puerta

Tamper

RS-485

1 RS-485 (Half duplex, HIKVISION)

Wiegand

1 Wiegand(Hik 26bit,Hik 34bit)

USB

Autenticación

Tipo de tarjeta

M1 card

Frecuencia de lectura de tarjeta

13.56 MHz

General

Fuente de alimentación

12 VDC, 1 A (power adapter included)

Temperatura de trabajo

-10 °C to 40 °C (14 °F to 104 °F)

Humedad de trabajo

0 to 90% (No condensing)

Dimensiones

118.4 mm × 118.4 mm × 21.8 mm (4.66" × 4.66" × 0.86")

Instalación

Wall mounting, base mounting

Idioma

English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean; Japanese

Platform

Hik-ProConnect and HikCentral Professional

Función

Face anti-spoofing
