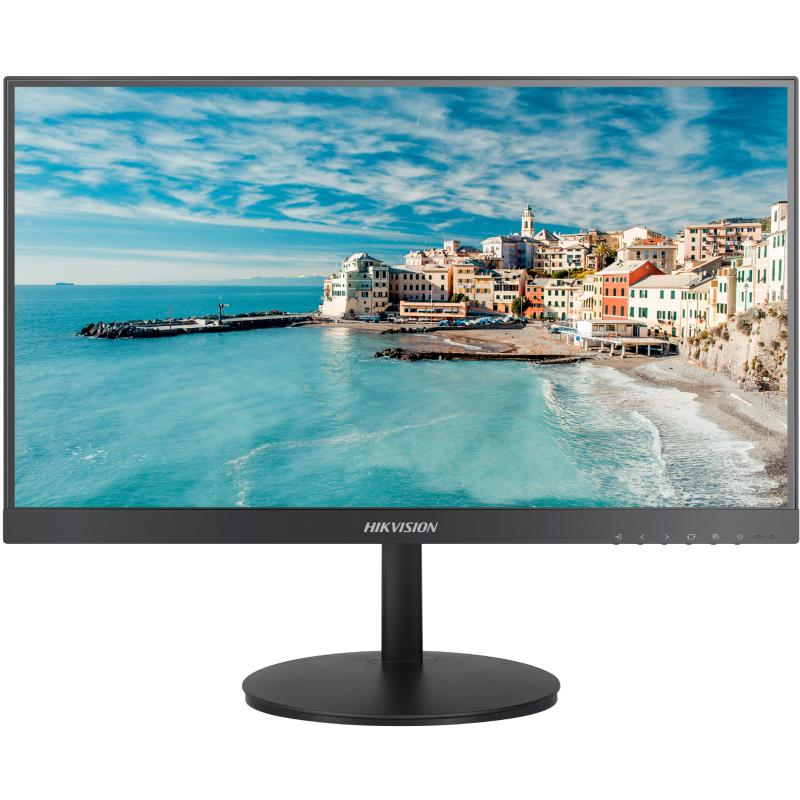

21.5 inch FHD Borderless Monitor

Ultra-thin device body with ultra-thin border for 3 sides.
8 bit LVDS HD (1920 × 1080) display.
178° ultra-wide view screen.
3D noise reduction.
Low blue light design for eye care.
Dual interface of HDMI and VGA.
Support VESA wall mount.

View Less

Data Sheet

Available models:

DS-D5022FN00(European standard)

DS-D5022FN00(British Standard)

DS-D5022FN00(American Standard)

DS-D5022FN00(Australian Standard)

DS-D5022FN00

EOL

Specification
Resources
Accessories

Data Sheet

Display
Screen Size21.5 inch
Active Display Area478.656 mm × 260.280 mm
Resolution1920 × 1080@60 Hz
BacklightE-LED
Pixel Pitch0.0831 mm (H) × 0.241 mm (V)
Brightness250 cd/m²
Viewing Angle178° (H) / 178° (V)
Color Depth8 bit
Contrast Ratio3000 : 1
Response Time6.5 ms
Refresh RateMax. 75Hz , Typ. 60 Hz
HazeHaze 25%, 3H
Reliability7 × 16 H
Color Gamut72% NTSC

Interface
Video & Audio InputHDMI 1.4 × 1, VGA × 1
Video & Audio OutputNone
Data Transmission InterfaceNone
Control InterfaceNone

Power
Power SupplyDC 12V, 2.0A
Power Consumption≤ 24 W
Standby Consumption≤ 0.5 W

Working Environment
Working Temperature0℃ to 40 ℃ (32 ℉ to 104 ℉)
Working Humidity10% to 90% RH (Non-Condensing)
Storage Temperature-20 ℃ to 60 ℃ (-4 ℉ to 140 ℉)
Storage Humidity0% to 90% RH

General
Casing MaterialPlastic
VESA75 mm × 75 mm (4 - M4 × 6 mm)
Bezel Width6.85 mm (top/left/right), 21.55 mm (bottom)
Product Dimensions (W × H × D)492.4mm（W）× 390.1mm（H）× 200.2mm（D）mm
Package Dimensions (W × H × D)599mm（W）x 393mm（H）x 109 mm（D）
Net Weight2.08 ± 0.5 kg
Gross Weight3.4 ± 0.5 kg
Packing ListMonitor × 1, Base component × 1, Power adapter (12 V, 2.0 A) × 1, HDMI cable (1.5 m) × 1, User manual × 1, Multilingual manual × 1
RemarksIf the appearance and parameters in this specification vary from the actual product, the later prevails. You can also consult local sale staff.
