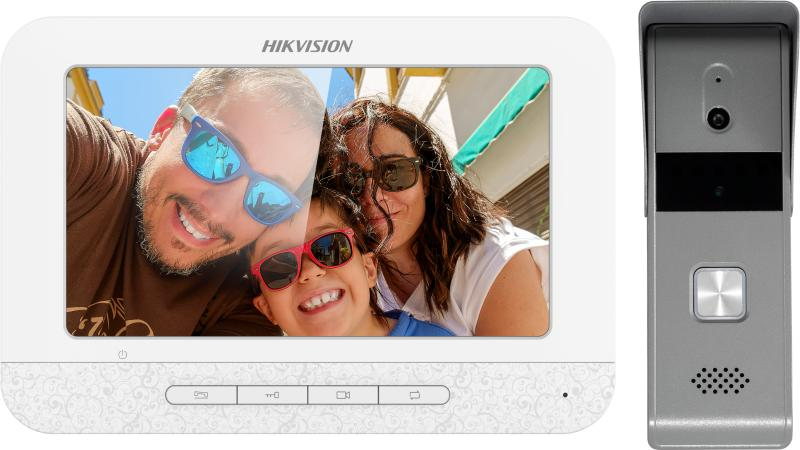

Villa Analog Kit

  • Water proof 4-wire analog video intercom bundle for villa or house
  • One call button for easier calls
  • Including DS-KB2421T-IM and DS-KH2220, 5-meter 4-wire cable, and other accessories
  • European power supply adaptor included (please mark for other standards when you order)

View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-KIS203T
DS-KIS203T
Data Sheet

Specification

  • Door station/Video parameters
  • Resolution1920 × 1080 Stream resolution: 960 × 576
  • Lens1/2.7" CMOS
  • FOVHorizontal: 66.2°，Vertical: 37.2°
  • Door station/Audio parameters
  • Audio inputBuilt-in omnidirectional microphone
  • Audio outputBuilt-in loudspeaker
  • Door station/Device interfaces
  • I/O output1 relay output
  • Four-wire1-ch video input, 1-ch audio input/output, 1-ch power supply, 1-ch grounding
  • Door station/General
  • Power supply12 VDC
  • Power consumptionMax. 5W
  • Working temperature-10° C to + 55° C (14° F to 131° F)
  • Working humidity10% to 90%
  • Dimensions128 mm × 42 mm × 24.8 mm
  • Protective levelIP65
  • Indoor station/Display parameters
  • Operation methodPhysical button
  • Type7-inch colorful TFT LCD
  • Resolution800 × 480
  • Indoor station/Audio parameters
  • Audio inputBuilt-in omnidirectional microphone
  • Audio outputBuilt-in loudspeaker
  • Audio qualityNoise suppression and echo cancellation
  • Indoor station/General
  • Power supply12 VDC
  • Power consumption≤5 W
  • Working temperature-10° C to + 55° C (14° F to 131° F)
  • Working humidity10% to 90%
  • Dimensions (W × H × D)195.8 mm × 132.8 mm × 18.39 mm (7.7" × 5.2" ×0.7")
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Door station/Video parameters
Resolution
1920 × 1080 Stream resolution: 960 × 576
Lens
1/2.7" CMOS
FOV
Horizontal: 66.2°，Vertical: 37.2°
Door station/Audio parameters
Audio input
Built-in omnidirectional microphone
Audio output
Built-in loudspeaker
Door station/Device interfaces
I/O output
1 relay output
Four-wire
1-ch video input, 1-ch audio input/output, 1-ch power supply, 1-ch grounding
Door station/General
Power supply
12 VDC
Power consumption
Max. 5W
Working temperature
-10° C to + 55° C (14° F to 131° F)
Working humidity
10% to 90%
Dimensions
128 mm × 42 mm × 24.8 mm
Protective level
IP65
Indoor station/Display parameters
Operation method
Physical button
Type
7-inch colorful TFT LCD
Resolution
800 × 480
Indoor station/Audio parameters
Audio input
Built-in omnidirectional microphone
Audio output
Built-in loudspeaker
Audio quality
Noise suppression and echo cancellation
Indoor station/General
Power supply
12 VDC
Power consumption
≤5 W
Working temperature
-10° C to + 55° C (14° F to 131° F)
Working humidity
10% to 90%
Dimensions (W × H × D)
195.8 mm × 132.8 mm × 18.39 mm (7.7" × 5.2" ×0.7")
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Door station/Video parameters
  • Resolution1920 × 1080 Stream resolution: 960 × 576
  • Lens1/2.7" CMOS
  • FOVHorizontal: 66.2°，Vertical: 37.2°
Door station/Audio parameters
  • Audio inputBuilt-in omnidirectional microphone
  • Audio outputBuilt-in loudspeaker
Door station/Device interfaces
  • I/O output1 relay output
  • Four-wire1-ch video input, 1-ch audio input/output, 1-ch power supply, 1-ch grounding
Door station/General
  • Power supply12 VDC
  • Power consumptionMax. 5W
  • Working temperature-10° C to + 55° C (14° F to 131° F)
  • Working humidity10% to 90%
  • Dimensions128 mm × 42 mm × 24.8 mm
  • Protective levelIP65
Indoor station/Display parameters
  • Operation methodPhysical button
  • Type7-inch colorful TFT LCD
  • Resolution800 × 480
Indoor station/Audio parameters
  • Audio inputBuilt-in omnidirectional microphone
  • Audio outputBuilt-in loudspeaker
  • Audio qualityNoise suppression and echo cancellation
Indoor station/General
  • Power supply12 VDC
  • Power consumption≤5 W
  • Working temperature-10° C to + 55° C (14° F to 131° F)
  • Working humidity10% to 90%
  • Dimensions (W × H × D)195.8 mm × 132.8 mm × 18.39 mm (7.7" × 5.2" ×0.7")
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
