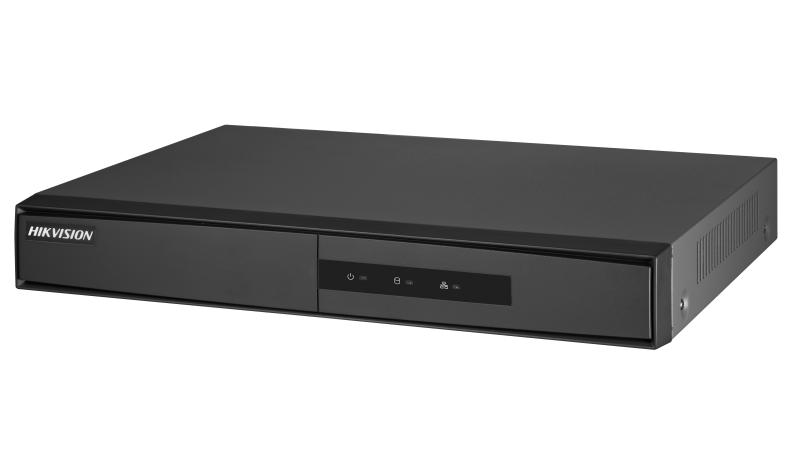

16-ch 1080p Lite 1U H.264 DVR

  • 16 channels and 2 HDDs 1U DVR
  • H.264+ / H.264 video compression
  • Encoding ability up to 1080p lite @ 25/30 fps
  • 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
  • Up to 18 network cameras can be connected
View Less
View more

Available models:

DS-7216HGHI-F2

Specification

  • Recording
  • Video compressionH.264+/H.264
  • Encoding resolutionWhen 1080p Lite mode not enabled: 720p/WD1/4CIF/VGA/CIF,When 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF
  • Frame rateMain stream: ,When 1080p Lite mode not enabled:,For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),When 1080p Lite mode enabled:,1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),
  • Video bit rate32 Kbps to 4 Mbps
  • Dual streamSupport
  • Stream typeVideo, Video & Audio
  • Audio compressionG.711u
  • Audio bit rate64 Kbps
  • Video and Audio
  • IP video input2-ch (up to 18-ch) Up to 1080p resolution Support H.264+/H.264 IP cameras
  • Analog video input16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
  • Turbo HD input1080p25, 1080p30, 720p25, 720p30
  • AHD input1080p25, 1080p30, 720p25, 720p30
  • HDCVI input1080p25, 1080p30, 720p25, 720p30
  • CVBS inputSupport
  • Audio input1-ch, RCA (2.0 Vp-p, 1 KΩ)
  • Audio output1-ch, RCA (Linear, 1 KΩ)
  • Two-way audioReuse the first audio input
