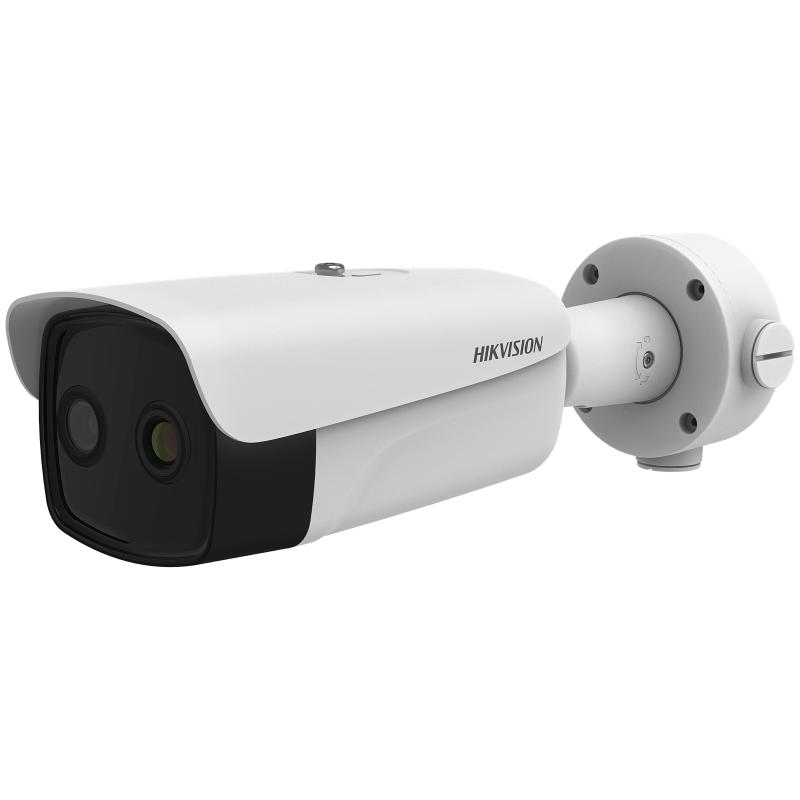

Thermal & Optical Bi-spectrum Network Bullet Camera

  • Powerful perimeter protection functions, based on intelligent algorithm: Line crossing, intrusion, region entrance & exit
  • 384 × 288 resolution, 17 μm, VOx UFPA, NETD < 35 mK (25 °C, F# = 1.0)
  • Temperature exception alarm for fire prevention, -20°C to 150°C (-4°F to 302°F), ± 8°C (± 14.4°F)
  • Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
  • Fire detection algorithm
  • High quality detector with 10 years guarantee
View Less
View more

Available models:

DS-2TD2637-15/PY

Specification

  • Thermal Module
  • Image SensorVanadium Oxide Uncooled Focal Plane Arrays
  • Resolution384 × 288
  • Pixel Interval17 μm
  • Response Waveband8 μm to 14 μm
  • NETDLess than 35 mK (@25 °C,F#=1.0)
  • Focal Length15 mm
  • IFOV1.13 mrad
  • Field of View24.5° × 18.5° (H × V)
  • Min. Focusing Distance2.5 m
  • ApertureF1.0
  • Digital Zoom×2, ×4, ×8
  • Optical Module
  • Image Sensor1/2.7" Progressive Scan CMOS
  • Resolution2688 × 1520, 4 MP
  • Min. IlluminationColor: 0.0089 Lux @(F1.6, AGC ON), B/W: 0.0018 Lux @(F1.6, AGC ON)
  • Shutter Speed1s to 1/100,000s
  • Focal Length6 mm
  • Field of View51.7° × 28° (H × V)
  • Aperture (Range)F1.6
  • WDR120 dB
  • Image Effect
  • Bi-spectrum Image FusionDisplay the details of optical channel on thermal channel
  • <
