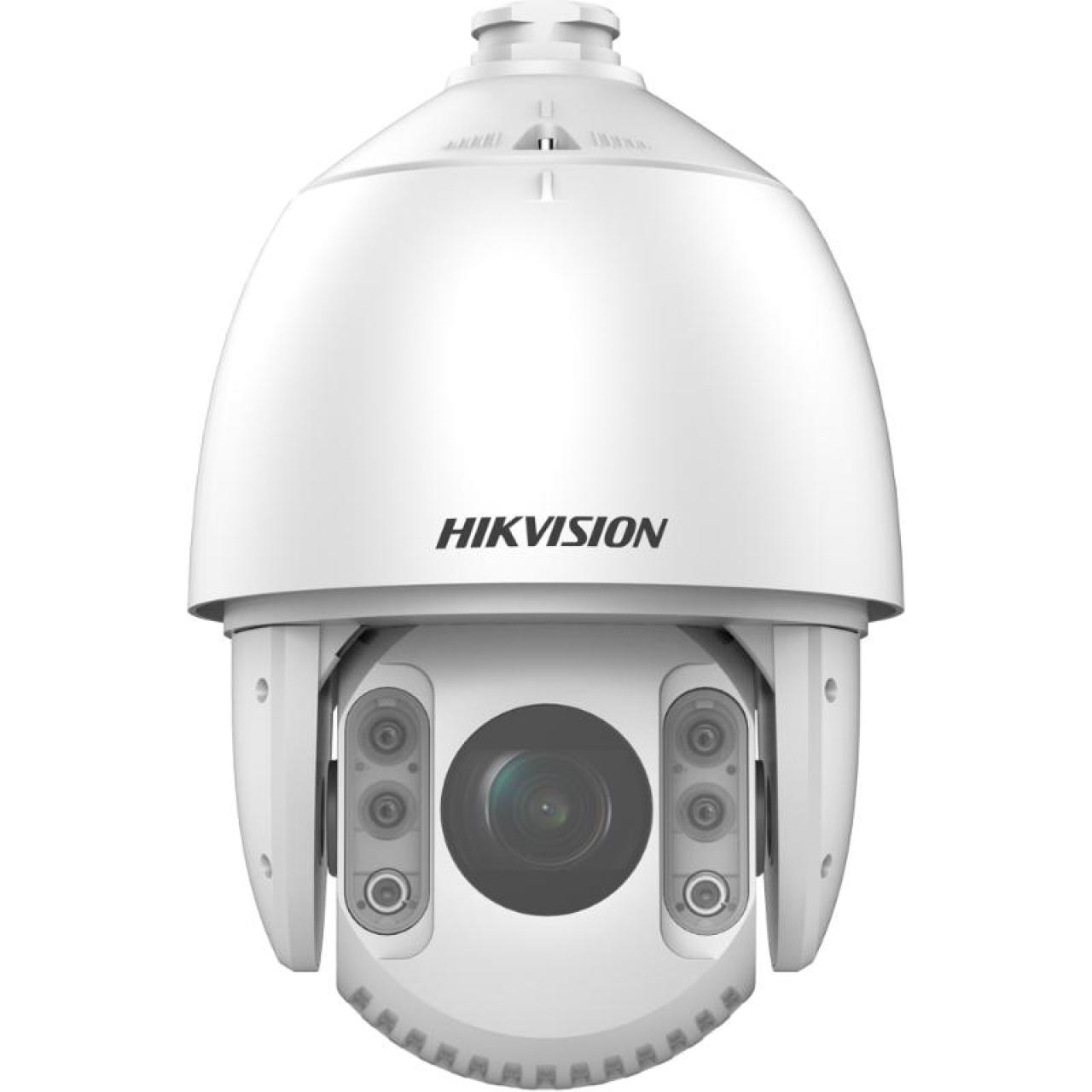

7-inch 2 MP 25X Powered by DarkFighter IR Network Speed Dome

1/2.8" progressive scan CMOS
High quality imaging with 2 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
25× optical zoom and 16× digital zoom provide close up views over expansive areas
WDR, HLC, BLC, 3D DNR, defog, regional exposure, regional focus
Expansive night view with up to 200 m IR distance
24 VAC & Hi-PoE
Support H.265+/H.265 video compression

View Less

Data Sheet

Available models:

DS-2DE7225IW-AE(S6)

EOL

Specification
Resources
Accessories

Data Sheet

Camera
Image Sensor1/2.8" progressive scan CMOS
Min. Illuminationcolor: 0.005Lux @ (F1.6，AGC ON); B/W: 0.001Lux @ (F1.6，AGC ON);0 Lux with IR
Shutter Speed1 s to 1/30,000 s
Slow Shutteryes
Focussemi-auto;manual;auto
Day & NightICR
Day/Night Switchday, night, auto, scheduled-switch
BLCyes
WDR120 dB WDR
HLCyes
3D DNRyes
Defogyes
EISno
Regional Exposureyes
Regional Focusyes
Image Settingssaturation;brightness;contrast;sharpness
Image Parameters Switchyes
White BalanceMWB;indoor;outdoor;fluorescent lamp;sodium lamp;ATW;auto;Locked WB
Digital Zoom16x
Optical Zoom25x
Privacy Maskup to 24 masks;mask color configurable
SNR＞52dB

Lens
Focal Length4.8 mm to 120 mm, 25× Optical
Zoom Speedapprox. 3.6 s
FOVHorizontal field of view: 57.6° to 2.5° (wide-tele), Vertical field of view: 34.4° to 1.4° (wide-tele), Diagonal field of view: 64.5° to 2.9° (wide-tele)
ApertureF1.6

Illuminator
IR DistanceUp to 200 m

PTZ
Movement Range (Pan)360°
Movement Range (Tilt)-15° to 90° (auto flip)
Pan Speedpan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s
Tilt Speedtilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
Proportional Zoomyes
Presets300
Patrol Scan8 patrols, up to 32 presets for each patrol
Pattern Scan4 pattern scans
Power-off Memoryyes
Park Actionpreset;patrol scan;pattern scan;auto scan;tilt scan;random scan;frame scan;panorama scan
3D Positioningyes
PTZ Status Displayyes
Preset Freezingyes
Scheduled Taskpreset;auto scan;random scan;frame scan;patrol scan;pattern scan;panorama scan;tilt scan;dome reboot;dome adjust;aux output

Video
Max. Resolution1920 × 1080
Stream Typemain stream;sub-stream;third stream
Main Stream50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video CompressionH.265;H.264;MJPEG
Video Bit Rate32 kbps to 16384 kbps
H.264 Typebaseline profile;main profile;high profile
H.265 Typemain profile
H.264+yes
H.265+yes
SVCyes
ROIfixed region;main stream, sub-stream and third stream respectively support eight fixed areas

Audio
Audio CompressionG.711alaw;G.711ulaw;G.722.1;G.726;MP2L2;PCM
Audio Bit rateMP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps, 192 kbps
Audio Sampling RateMP2L2: 16 kHz, 32 kHz, 48 kHz;PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz
Environment Noise Filteringyes

Smart Features
Basic Eventmotion detection;alarm input;alarm output;video tampering alarm;exception
Smart Eventintrusion detection;line crossing detection;region entrance detection;region exiting detection;unattended baggage detection;object removal detection;audio exception detection;face detection
Smart Trackingmanual tracking;event tracking;auto-tracking
Smart RecordANR;Dual-VCA
Alarm Linkagesmart tracking;memory card video recording;alarm output;sending email;notify surveillance center; upload to FTP;NAS video recording

Network
Network StorageNAS (NFS, SMB/ CIFS)
ProtocolsIPv4/IPv6,HTTP,HTTPS,802.1X,QoS,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP/IP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,ISUP
API ISAPI;Hikvision SDK;Third-party management platform;Open-ended API;Hik-Connect;ISUP;Open Network Video Interface;CGI
Simultaneous Live View20
User/Host32
Security MeasuresAuthenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filter
ClientiVMS-4200;Hik-Connect
Web BrowserIE10-11, Chrome 57+, Firefox 52+, Safari 12+

Interface
Communication InterfaceRJ45, self-adaptive 10M/100M Ethernet port
On-board Storagesupport microSD/microSDHC/microSDXC cards;up to 256 GB
Alarm Input2 alarm inputs
Alarm Output1 alarm output
Audio Input1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
Audio Output1 audio output, line level, impedance: 600 Ω

General
Power24 VAC;PoE (802.3at)
Power Consumption and CurrentMax. 24 W, including max. 1.6 W for heater and 12 W for IR
Operating Conditions-30℃ to 65℃ (-22°F to 149°F) ;humidity lower than 90%RH
Resetyes
Demistyes
MaterialADC12
DimensionsØ 220 mm × 353.4 mm (Ø 8.66" × 13.91")
WeightApprox. 4.5 kg (9.92 lb.)

Approval
ProtectionIP66 Standard, 6000V Lightning Protection, Surge Protection and Voltage Transient Protection ;IK10 (excluding glass window)
