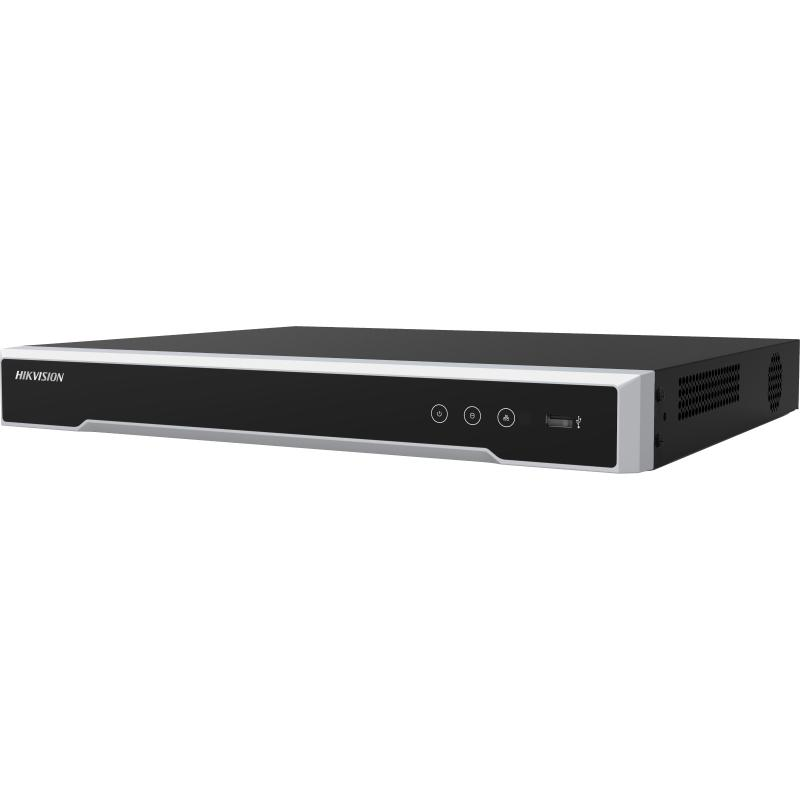

8-ch 1U 4K NVR

  • Up to 8 channel IP cameras can be connected
  • Supports decoding H.265+/H.265/H.264+/H.264 video formats
  • Up to 4K high-definition live view, storage and playback
  • Up to 8-ch @ 1080p decoding capacity
  • Up to 80 Mbps high incoming bandwidth ensures IP cameras can be connected
  • 1 HDMI and 1 VGA interfaces: both interfaces support independent video output
  • 2 HDDs for continuous video recording

Specification
  • Video and Audio
  • IP Video Input8-ch
  • HDMI Output4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • Outgoing Bandwidth160 Mbps
  • VGA Output1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • Incoming Bandwidth80 Mbps
  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1kΩ)
  • Decoding
  • Decoding FormatH.265/H.265+/H.264/H.264+/MPEG4
  • Decoding Capability2-ch @ 8 MP (25fps) / 4-ch @ 4MP (30fps) / 8-ch @ 1080p (30fps)
  • Synchronous playback8-ch
  • Recording Resolution8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
  • Network
  • Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
  • Network ProtocolTCP/IP, DHCP, IPv4, Hik-Connect, DNS, DDNS, NTP, RTSP, SADP,SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
  • Auxiliary Interface
  • SATA2 SATA interfaces
  • CapacityUp to 6 TB capacity for each HDD
  • USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
  • Alarm In/Out4/1
  • General
  • Power Supply12 VDC
  • Consumption≤15 W
  • Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity10 to 90 %
  • Dimension (W × D × H)385 × 315× 52 mm (15.2" × 12.4" × 2.0")
  • ≤ 1 kg (2.2 lb)
