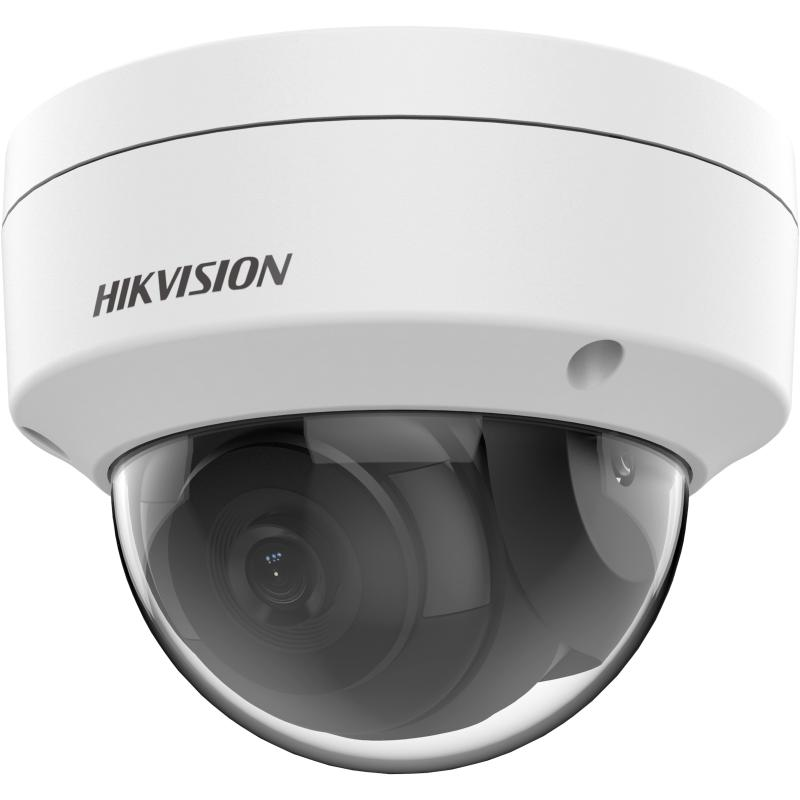

4K Fixed Dome Network Camera

  • High quality imaging with 8 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging even with strong back lighting due to 120 dB WDR
  • Water and dust resistant (IP67) and vandal resistant (IK10)
  • EXIR 2.0: advanced infrared technology with long IR range

View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-2CD1183G0-I(2.8mm)(C)
DS-2CD1183G0-I(4mm)(C)
DS-2CD1183G0-I
Data Sheet

Specification

  • Camera
  • Image Sensor1/2.8" Progressive Scan CMOS
  • Max. Resolution3840 × 2160
  • Min. IlluminationColor: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
  • Shutter Time1/3 s to 1/100,000 s
  • Day & NightIR cut filter
  • Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°
  • Lens
  • Lens TypeFixed focal lens, 2.8 and 4 mm optional
  • Focal Length & FOV2.8 mm, horizontal FOV 108°, vertical FOV 60°, diagonal FOV 127° 4 mm, horizontal FOV 86°, vertical FOV 46°, diagonal FOV 102°
  • Lens MountM12
  • Iris TypeFixed
  • ApertureF2.0
  • DORI
  • DORI2.8 mm, D: 81 m, O: 32 m, R: 16 m, I: 8 m 4 mm, D: 106 m, O: 42 m, R: 21 m, I: 11 m
  • Illuminator
  • Supplement Light TypeIR
  • Supplement Light RangeUp to 30 m
  • Smart Supplement LightYes
  • IR Wavelength850 nm
  • Video
  • Main Stream50 Hz: 12.5 fps (3840 × 2160), 20 fps (2592 × 1944), 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 15 fps (3840 × 2160), 20 fps (2592 × 1944), 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
  • Sub-Stream50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
  • Video Compression Main stream: H.265+/H.264+/H.265/H.264 Sub-stream: H.265/H.264/MJPEG
  • Video Bit Rate32 Kbps to 16 Mbps
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • Bit Rate ControlCBR/VBR
  • Region of Interest (ROI)1 fixed region for main stream
  • Network
  • SecurityPassword protection, complicated password, HTTPS encryption, watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS,security audit log, TLS 1.2, host authentication (MAC address)
  • Simultaneous Live ViewUp to 6 channels
  • APIOpen Network Video Interface (Profile S), ISAPI, SDK
  • ProtocolsTCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour, FTP, SMTP
  • User/HostUp to 32 users. 3 user levels: administrator, operator and user
  • ClientiVMS-4200, Hik-Connect
  • Web BrowserPlug-in required live view: IE 10, IE 11 Local service: Chrome 57.0+, Firefox 52.0+
  • Image
  • Wide Dynamic Range (WDR)120 dB
  • SNR≥ 52 dB
  • Day/Night SwitchDay, Night, Auto, Schedule
  • Image EnhancementBLC, HLC, 3D DNR
  • Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser.
  • Privacy Mask4 regions of privacy mask
  • Interface
  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
  • Event
  • Basic Event Motion detection , video tampering alarm, exception
  • LinkageNotify surveillance center, trigger capture
  • General
  • Power12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
  • MaterialMetal & Plastic
  • DimensionØ110.8 mm × 84.7 mm (Ø4.4" × 3.3")
  • Package Dimension134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")
  • WeightApprox. 520 g (1.1 lb.)
  • With Package WeightApprox. 720 g (1.6 lb.)
  • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • LanguageEnglish, Ukrainian
  • General FunctionAnti-flicker, heartbeat, mirror, password protection, password reset via e-mail
  • Approval
  • EMCFCC (47 CFR Part 15, Subpart B) CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014) RCM (AS/NZS CISPR 32: 2015) IC (ICES-003: Issue 7) KC (KN32: 2015, KN35: 2015)
  • SafetyUL (UL 62368-1) CB (IEC 62368-1: 2014+A11) CE-LVD (EN 62368-1: 2014/A11: 2017) BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005)
  • EnvironmentCE-RoHS (2011/65/EU) WEEE (2012/19/EU) Reach (Regulation (EC) No 1907/2006)
  • ProtectionIP67 (IEC 60529-2013) IK10 (IEC 62262: 2002)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Camera
Image Sensor
1/2.8" Progressive Scan CMOS
Max. Resolution
3840 × 2160
Min. Illumination
Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
Shutter Time
1/3 s to 1/100,000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 355°, tilt: 0° to 75°
Lens
Lens Type
Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 108°, vertical FOV 60°, diagonal FOV 127° 4 mm, horizontal FOV 86°, vertical FOV 46°, diagonal FOV 102°
Lens Mount
M12
Iris Type
Fixed
Aperture
F2.0
DORI
DORI
2.8 mm, D: 81 m, O: 32 m, R: 16 m, I: 8 m 4 mm, D: 106 m, O: 42 m, R: 21 m, I: 11 m
Illuminator
Supplement Light Type
IR
Supplement Light Range
Up to 30 m
Smart Supplement Light
Yes
IR Wavelength
850 nm
Video
Main Stream
50 Hz: 12.5 fps (3840 × 2160), 20 fps (2592 × 1944), 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 15 fps (3840 × 2160), 20 fps (2592 × 1944), 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression
Main stream: H.265+/H.264+/H.265/H.264 Sub-stream: H.265/H.264/MJPEG
Video Bit Rate
32 Kbps to 16 Mbps
H.264 Type
Baseline Profile/Main Profile/High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR/VBR
Region of Interest (ROI)
1 fixed region for main stream
Network
Security
Password protection, complicated password, HTTPS encryption, watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS,security audit log, TLS 1.2, host authentication (MAC address)
Simultaneous Live View
Up to 6 channels
API
Open Network Video Interface (Profile S), ISAPI, SDK
Protocols
TCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour, FTP, SMTP
User/Host
Up to 32 users. 3 user levels: administrator, operator and user
Client
iVMS-4200, Hik-Connect
Web Browser
Plug-in required live view: IE 10, IE 11 Local service: Chrome 57.0+, Firefox 52.0+
Wide Dynamic Range (WDR)
120 dB
SNR
≥ 52 dB
Day/Night Switch
Day, Night, Auto, Schedule
Image Enhancement
BLC, HLC, 3D DNR
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser.
Privacy Mask
4 regions of privacy mask
Interface
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
Event
Basic Event
Motion detection , video tampering alarm, exception
Linkage
Notify surveillance center, trigger capture
General
Power
12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
Material
Metal & Plastic
Dimension
Ø110.8 mm × 84.7 mm (Ø4.4" × 3.3")
Package Dimension
134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")
Weight
Approx. 520 g (1.1 lb.)
With Package Weight
Approx. 720 g (1.6 lb.)
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language
English, Ukrainian
General Function
Anti-flicker, heartbeat, mirror, password protection, password reset via e-mail
Approval
EMC
FCC (47 CFR Part 15, Subpart B) CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014) RCM (AS/NZS CISPR 32: 2015) IC (ICES-003: Issue 7) KC (KN32: 2015, KN35: 2015)
Safety
UL (UL 62368-1) CB (IEC 62368-1: 2014+A11) CE-LVD (EN 62368-1: 2014/A11: 2017) BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005)
Environment
CE-RoHS (2011/65/EU) WEEE (2012/19/EU) Reach (Regulation (EC) No 1907/2006)
Protection
IP67 (IEC 60529-2013) IK10 (IEC 62262: 2002)
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Camera
  • Image Sensor1/2.8" Progressive Scan CMOS
  • Max. Resolution3840 × 2160
  • Min. IlluminationColor: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
  • Shutter Time1/3 s to 1/100,000 s
  • Day & NightIR cut filter
  • Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°
Lens
  • Lens TypeFixed focal lens, 2.8 and 4 mm optional
  • Focal Length & FOV2.8 mm, horizontal FOV 108°, vertical FOV 60°, diagonal FOV 127° 4 mm, horizontal FOV 86°, vertical FOV 46°, diagonal FOV 102°
  • Lens MountM12
  • Iris TypeFixed
  • ApertureF2.0
DORI
  • DORI2.8 mm, D: 81 m, O: 32 m, R: 16 m, I: 8 m 4 mm, D: 106 m, O: 42 m, R: 21 m, I: 11 m
Illuminator
  • Supplement Light TypeIR
  • Supplement Light RangeUp to 30 m
  • Smart Supplement LightYes
  • IR Wavelength850 nm
Video
  • Main Stream50 Hz: 12.5 fps (3840 × 2160), 20 fps (2592 × 1944), 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 15 fps (3840 × 2160), 20 fps (2592 × 1944), 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
  • Sub-Stream50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
  • Video Compression Main stream: H.265+/H.264+/H.265/H.264 Sub-stream: H.265/H.264/MJPEG
  • Video Bit Rate32 Kbps to 16 Mbps
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • Bit Rate ControlCBR/VBR
  • Region of Interest (ROI)1 fixed region for main stream
Network
  • SecurityPassword protection, complicated password, HTTPS encryption, watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS,security audit log, TLS 1.2, host authentication (MAC address)
  • Simultaneous Live ViewUp to 6 channels
  • APIOpen Network Video Interface (Profile S), ISAPI, SDK
  • ProtocolsTCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour, FTP, SMTP
  • User/HostUp to 32 users. 3 user levels: administrator, operator and user
  • ClientiVMS-4200, Hik-Connect
  • Web BrowserPlug-in required live view: IE 10, IE 11 Local service: Chrome 57.0+, Firefox 52.0+
  • Wide Dynamic Range (WDR)120 dB
  • SNR≥ 52 dB
  • Day/Night SwitchDay, Night, Auto, Schedule
  • Image EnhancementBLC, HLC, 3D DNR
  • Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser.
  • Privacy Mask4 regions of privacy mask
Interface
  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
Event
  • Basic Event Motion detection , video tampering alarm, exception
  • LinkageNotify surveillance center, trigger capture
General
  • Power12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
  • MaterialMetal & Plastic
  • DimensionØ110.8 mm × 84.7 mm (Ø4.4" × 3.3")
  • Package Dimension134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")
  • WeightApprox. 520 g (1.1 lb.)
  • With Package WeightApprox. 720 g (1.6 lb.)
  • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • LanguageEnglish, Ukrainian
  • General FunctionAnti-flicker, heartbeat, mirror, password protection, password reset via e-mail
Approval
  • EMCFCC (47 CFR Part 15, Subpart B) CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014) RCM (AS/NZS CISPR 32: 2015) IC (ICES-003: Issue 7) KC (KN32: 2015, KN35: 2015)
  • SafetyUL (UL 62368-1) CB (IEC 62368-1: 2014+A11) CE-LVD (EN 62368-1: 2014/A11: 2017) BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005)
  • EnvironmentCE-RoHS (2011/65/EU) WEEE (2012/19/EU) Reach (Regulation (EC) No 1907/2006)
  • ProtectionIP67 (IEC 60529-2013) IK10 (IEC 62262: 2002)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V5.7.23_241008
Applied to:
DS-2CD1183G0-I(2.8mm)(C)
DS-2CD1183G0-I(4mm)(C)
