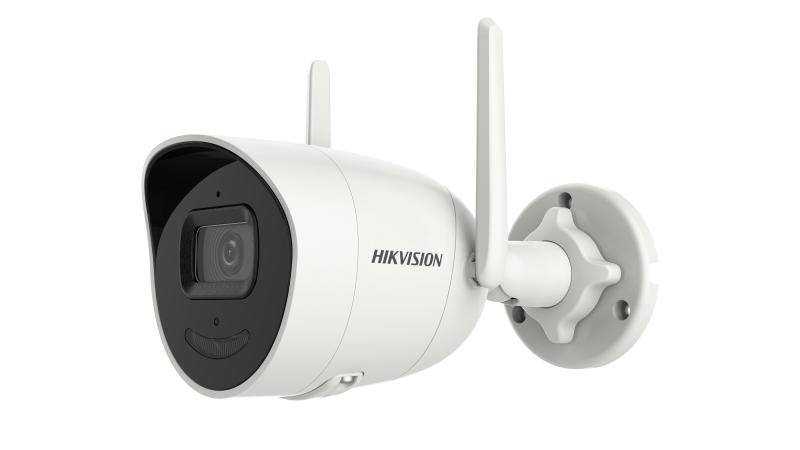

2 MP Outdoor Fixed Bullet Network Camera with Build-in Mic

  • 1/2.7" Progressive Scan 2MP CMOS
  • Built-in dual antenna 2.4G Wi-Fi, up to 120m range in open area
  • Built-in Microphone
  • H.265+, H.265, H.264+, H.264
  • EXIR, 30m IR range
  • Wi-Fi connection with Hik-Connect directly is not possible
  • IP66 Dust and water proof

View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-2CV1021G1-IDW(2.8mm)(D)
DS-2CV1021G1-IDW
Data Sheet

Specification

  • Camera
  • Image Sensor1/2.7" Progressive Scan CMOS
  • Max. Resolution1920 × 1080
  • Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
  • Shutter Time1/3 s to 1/100,000 s
  • Day & NightIR cut filter
  • Angle AdjustmentPan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
  • Lens
  • Lens TypeFixed focal lens, 2.8 and 4 mm optional
  • Focal Length & FOV2.8 mm, horizontal FOV 108°, vertical FOV 60°, diagonal FOV 123° 4 mm, horizontal FOV 91°, vertical FOV 46°, diagonal FOV 110°
  • ApertureF1.6
  • Iris TypeFixed
  • Lens MountM12
  • Depth of Field2.8 mm: 1 m to ∞ 4 mm: 1.1 m to ∞
  • DORI
  • DORI2.8 mm, D: 42 m, O: 17 m, R: 9 m, I: 4 m 4 mm, D: 52 m, O: 21 m, R: 11 m, I: 5 m
  • Illuminator
  • Supplement Light TypeIR
  • IR Wavelength850 nm
  • Supplement Light RangeUp to 30 m
  • Smart Supplement LightYes
  • Video
  • Main Stream50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
  • Sub-Stream50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
  • Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG
  • Video Bit Rate32 Kbps to 8 Mbps
  • H.264 TypeBaseline Profile, Main Profile, High Profile
  • H.265 TypeMain Profile
  • Bit Rate ControlCBR,VBR
  • Audio
  • Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
  • Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
  • Audio Sampling Rate8 kHz/16 kHz
  • Environment Noise FilteringYes
  • Network
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6, Bonjour
  • Simultaneous Live ViewUp to 6 channels
  • APIOpen Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK
  • SecurityPassword protection,complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS
  • User/HostUp to 32 users. 3 levels: administrator, operator and user
  • Network StorageAuto Network Replenishment (ANR)
  • ClientWired network: Hik-Connect, iVMS-4200 Wi-Fi: iVMS-4200 *Wi-Fi connection with Hik-Connect directly is not possible.
  • Web BrowserPlug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
  • Wi-Fi
  • Transfer Rate11n: up to 300 Mbps
  • Wi-Fi Protocol802.11n: OFDM,802.11b: DSSS,802.11g: OFDM
  • Frequency Range2.412 GHz to 2.472 GHz
  • Channel Bandwidth 20/40 MHz
  • Modulation802.11n: BPSK, QPSK, 16QAM, and 64QAM 802.11b: DBPSK and DQPSK, CCK 802.11g: BPSK, QPSK, 16QAM, and 64QAM
  • Wireless RangeUp to 120 m (The performance varies based on actual environment)
  • Antenna2 Antennas
  • Image
  • Image SettingsSaturation,brightness,contrast,sharpness,adjustable by client software or web browser
  • Day/Night SwitchAuto, Schedule, Day, Night
  • Wide Dynamic Range (WDR)120 dB
  • SNR≥ 52 dB
  • Image EnhancementBLC, 3D DNR
  • Interface
  • Built-in MicrophoneYes
  • Reset KeyYes
  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
  • Event
  • Basic Event Motion detection, exception
  • Linkage Notify surveillance center,trigger recording,trigger capture
  • General
  • Power12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection,A switching adapter is included in the package.
  • MaterialBase: metal, front cover: metal, back cover: plastic
  • Dimension175.6 mm × 73 mm × 89.1 mm (6.9" × 2.9" × 3.5")
  • Package Dimension260 mm × 125 mm × 125 mm (10.2" × 4.9" × 4.9")
  • WeightApprox. 345 g (0.8 lb.)
  • General FunctionAnti-banding, heartbeat, mirror, password protection, watermark, IP address filter
  • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • LanguageEnglish, Ukrainian
  • Approval
  • EMCFCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, KC: KN32: 2015, KN35: 2015
  • RFFCC ID (FCC Part 15.247(BT or 2.4G)); CE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G));
  • SafetyCB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
  • EnvironmentCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
  • ProtectionIP66: IEC 60529-2013
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Camera
Image Sensor
1/2.7" Progressive Scan CMOS
Max. Resolution
1920 × 1080
Min. Illumination
Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time
1/3 s to 1/100,000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
Lens
Lens Type
Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 108°, vertical FOV 60°, diagonal FOV 123° 4 mm, horizontal FOV 91°, vertical FOV 46°, diagonal FOV 110°
Aperture
F1.6
Iris Type
Fixed
Lens Mount
M12
Depth of Field
2.8 mm: 1 m to ∞ 4 mm: 1.1 m to ∞
DORI
DORI
2.8 mm, D: 42 m, O: 17 m, R: 9 m, I: 4 m 4 mm, D: 52 m, O: 21 m, R: 11 m, I: 5 m
Illuminator
Supplement Light Type
IR
IR Wavelength
850 nm
Supplement Light Range
Up to 30 m
Smart Supplement Light
Yes
Video
Main Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG
Video Bit Rate
32 Kbps to 8 Mbps
H.264 Type
Baseline Profile, Main Profile, High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR,VBR
Audio
Audio Compression
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate
64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate
8 kHz/16 kHz
Environment Noise Filtering
Yes
Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6, Bonjour
Simultaneous Live View
Up to 6 channels
API
Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK
Security
Password protection,complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS
User/Host
Up to 32 users. 3 levels: administrator, operator and user
Network Storage
Auto Network Replenishment (ANR)
Client
Wired network: Hik-Connect, iVMS-4200 Wi-Fi: iVMS-4200 *Wi-Fi connection with Hik-Connect directly is not possible.
Web Browser
Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
Wi-Fi
Transfer Rate
11n: up to 300 Mbps
Wi-Fi Protocol
802.11n: OFDM,802.11b: DSSS,802.11g: OFDM
Frequency Range
2.412 GHz to 2.472 GHz
Channel Bandwidth
20/40 MHz
Modulation
802.11n: BPSK, QPSK, 16QAM, and 64QAM 802.11b: DBPSK and DQPSK, CCK 802.11g: BPSK, QPSK, 16QAM, and 64QAM
Wireless Range
Up to 120 m (The performance varies based on actual environment)
Antenna
2 Antennas
Image Settings
Saturation,brightness,contrast,sharpness,adjustable by client software or web browser
Day/Night Switch
Auto, Schedule, Day, Night
Wide Dynamic Range (WDR)
120 dB
SNR
≥ 52 dB
Image Enhancement
BLC, 3D DNR
Interface
Built-in Microphone
Yes
Reset Key
Yes
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
Event
Basic Event
Motion detection, exception
Linkage
Notify surveillance center,trigger recording,trigger capture
General
Power
12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection,A switching adapter is included in the package.
Material
Base: metal, front cover: metal, back cover: plastic
Dimension
175.6 mm × 73 mm × 89.1 mm (6.9" × 2.9" × 3.5")
Package Dimension
260 mm × 125 mm × 125 mm (10.2" × 4.9" × 4.9")
Weight
Approx. 345 g (0.8 lb.)
General Function
Anti-banding, heartbeat, mirror, password protection, watermark, IP address filter
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language
English, Ukrainian
Approval
EMC
FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, KC: KN32: 2015, KN35: 2015
RF
FCC ID (FCC Part 15.247(BT or 2.4G)); CE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G));
Safety
CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
Environment
CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Protection
IP66: IEC 60529-2013
