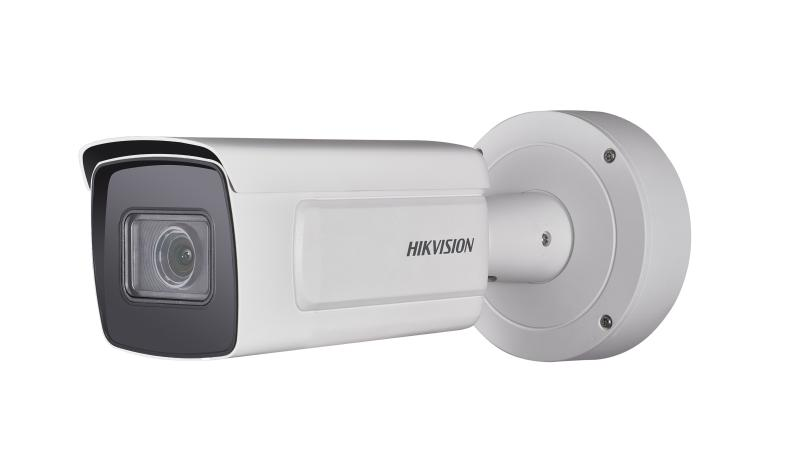

6MP Moto Varifocal Bullet Network Camera

High quality imaging with 6 MP resolution
Clear imaging against strong back light due to true WDR technology
Efficient H.265+ compression technology to save bandwidth and storage
Advanced streaming technology enables smooth live view and data self-correction in poor networks
5 streams and up to 5 custom streams to meet a wide variety of applications
6 behavior analyses, 3 exception detection, and face detection
Water and dust resistant and vandal proof (IP67 and IK10).

View Less

Data Sheet

Available models:

DS-2CD5A65G0-IZHS(2.8-12mm)

DS-2CD5A65G0-IZ(H)S

EOL

Specification
Resources
Accessories

Data Sheet

Camera
Image Sensor1/1.8″ Progressive Scan CMOS
Min. IlluminationColor: 0.007 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Speed1 s to 1/100,000 s
Slow ShutterYes
Wide Dynamic Range120 dB
Day & NightIR Cut Filter
Angle AdjustmentBracket, pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°

Lens
FocusAuto, semi-auto, manual
Lens Type2.8 to 12 mm
FOV2.8 to 12 mm, horizontal FOV 112.4° to 41°, vertical FOV 58° to 23°, diagonal FOV 137° to 47°
ApertureF1.2
Lens MountIntegrated

Illuminator
IR RangeUp to 50 m
Wavelength850 nm

Video
Max. Resolution3072 × 2048
Main Stream50Hz: 25fps (3200 × 1800, 3072 × 2048, 2560 × 1440, 1920 × 1080, 1280 × 720),60Hz: 30fps (3200 × 1800, 3072 × 2048, 2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-Stream50Hz: 25fps (704 × 576, 640 × 480),60Hz: 30fps (704 × 480, 640 × 480)
Third Stream50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480),60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Fourth Stream50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480),60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Fifth Stream50Hz: 25fps (704 × 576, 640 × 480),60Hz: 30fps (704 × 480, 640 × 480)
Custom Stream50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480),60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480),Up to 5 custom streams are supported
Video Compression Main stream: H.265/H.264/H.265+/H.264+,Sub stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
H.264+Main stream supports
H.265+Main stream supports
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region of Interest (ROI)4 fixed regions for main stream, sub stream, third stream, fourth stream, and fifth stream

Audio
Environment Noise FilteringNo
Audio Sampling RateNo
Audio Compression No
Audio Bit RateNo

Network
Simultaneous Live ViewUp to 20 channels
APIONVIF (PROFILE S, PROFILE G), ISAPI, SDK
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
User/HostUp to 32 users. 3 user levels: administrator, operator and user
SecurityPassword protection, HTTPS encryption, IEEE 802.1x port-based network access control, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF
Network StoragemicroSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR
ClientiVMS-4200, Hik-Connect, iVMS-5200, Hik-Central
Web BrowserPlug-in required live view: IE8-11, Chrome 41-44, Mozilla Firefox30.0-51, Safari8.0+,Plug-in free live view: Chrome 45+, Mozilla Firefox52+
Alarm TriggerMotion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error

Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In
Target CroppingYes
DNR3D DNR
Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Image EnhancementBLC, HLC, 3D DNR, Defog, EIS
Image SettingsRotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser

Interface
AudioNo
Alarm 2 inputs, 2 outputs (up to 24 VDC 1A or 110 VAC 500 mA)
Video Output1 BNC: CVBS analog output (4CIF resolution), internal,1Vp-p composite output (75 Ω/CVBS)
On-board StorageBuilt-in microSD/SDHC/SDXC slot, up to 256 GB
Hardware ResetYes
Communication Interface1 RJ45 10M/100M/1000M Ethernet port
Heater-H: yes

Event
Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
CountingCounting
Face DetectionYes
Exception DetectionScene change detection, defocus detection

General
Firmware Version5.5.80
General FunctionOne-key reset, anti-flicker, 5 streams and up to 5 custom streams, heartbeat, password protection, privacy mask, watermark, IP address filter
Startup and Operating Conditions-30 °C to 65 °C (-22 °F to 149 °F), -H: -40 °C to 65 °C (-40 °F to 149 °F),Humidity 95% or less (non-condensing)
Power Supply12 VDC ± 20%, two-core terminal block,PoE (802.3at, class 4)
Power Consumption and Current-IZS: 12 VDC, 1.0 A, max. 12 W; PoE (802.3at, 42.5 V to 57 V), 0.3 A to 0.2 A,-IZHS: 12 VDC, 1.3 A, max. 15 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A
Camera DimensionCamera: Φ144 × 347 mm (Φ5.7″ × 13.7″),With package: 405 × 190 × 180 mm (15.9″ × 7.5″ × 7.1″)
Camera WeightCamera: approx. 2.45 kg (5.40 lb.),With package: approx. 2.7 kg (5.95 lb.)

Approval
ProtectionIP67，IK10

Camera

Image Sensor

1/1.8″ Progressive Scan CMOS

Min. Illumination

Color: 0.007 Lux @ (F1.2, AGC ON), 0 Lux with IR

Shutter Speed

1 s to 1/100,000 s

Slow Shutter

Yes

Wide Dynamic Range

120 dB

Day & Night

IR Cut Filter

Angle Adjustment

Bracket, pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

Focus

Auto, semi-auto, manual

Lens Type

2.8 to 12 mm

FOV

2.8 to 12 mm, horizontal FOV 112.4° to 41°, vertical FOV 58° to 23°, diagonal FOV 137° to 47°

Aperture

F1.2

Lens Mount

Integrated

Illuminator

IR Range

Up to 50 m

Wavelength

850 nm

Video

Max. Resolution

3072 × 2048

Main Stream

50Hz: 25fps (3200 × 1800, 3072 × 2048, 2560 × 1440, 1920 × 1080, 1280 × 720),60Hz: 30fps (3200 × 1800, 3072 × 2048, 2560 × 1440, 1920 × 1080, 1280 × 720)

Sub-Stream

50Hz: 25fps (704 × 576, 640 × 480),60Hz: 30fps (704 × 480, 640 × 480)

Third Stream

50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480),60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

Fourth Stream

50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480),60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

Fifth Stream

50Hz: 25fps (704 × 576, 640 × 480),60Hz: 30fps (704 × 480, 640 × 480)

Custom Stream

50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480),60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480),Up to 5 custom streams are supported

Video Compression

Main stream: H.265/H.264/H.265+/H.264+,Sub stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Baseline Profile/Main Profile/High Profile

H.265 Type

Main Profile

H.264+

Main stream supports

H.265+

Main stream supports

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Region of Interest (ROI)

4 fixed regions for main stream, sub stream, third stream, fourth stream, and fifth stream

Audio

Environment Noise Filtering

Audio Sampling Rate

Audio Compression

Audio Bit Rate

Network

Simultaneous Live View

Up to 20 channels

API

ONVIF (PROFILE S, PROFILE G), ISAPI, SDK

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour

User/Host

Up to 32 users. 3 user levels: administrator, operator and user

Security

Password protection, HTTPS encryption, IEEE 802.1x port-based network access control, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF

Network Storage

microSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR

Client

iVMS-4200, Hik-Connect, iVMS-5200, Hik-Central

Web Browser

Plug-in required live view: IE8-11, Chrome 41-44, Mozilla Firefox30.0-51, Safari8.0+,Plug-in free live view: Chrome 45+, Mozilla Firefox52+

Alarm Trigger

Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error


Day/Night Switch

Day/Night/Auto/Schedule/Triggered by Alarm In

Target Cropping

Yes

DNR

3D DNR

Picture Overlay

LOGO picture can be overlaid on video with 128 × 128 24bit bmp format

Image Enhancement

BLC, HLC, 3D DNR, Defog, EIS

Image Settings

Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser

Interface

Audio

Alarm

2 inputs, 2 outputs (up to 24 VDC 1A or 110 VAC 500 mA)

Video Output

1 BNC: CVBS analog output (4CIF resolution), internal,1Vp-p composite output (75 Ω/CVBS)

On-board Storage

Built-in microSD/SDHC/SDXC slot, up to 256 GB

Hardware Reset

Yes

Communication Interface

1 RJ45 10M/100M/1000M Ethernet port

Heater

-H: yes

Event

Smart Event

Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection

Counting

Face Detection

Yes

Exception Detection

Scene change detection, defocus detection

General

Firmware Version

5.5.80

General Function

One-key reset, anti-flicker, 5 streams and up to 5 custom streams, heartbeat, password protection, privacy mask, watermark, IP address filter

Startup and Operating Conditions

-30 °C to 65 °C (-22 °F to 149 °F), -H: -40 °C to 65 °C (-40 °F to 149 °F),Humidity 95% or less (non-condensing)

Power Supply

12 VDC ± 20%, two-core terminal block,PoE (802.3at, class 4)

Power Consumption and Current

-IZS: 12 VDC, 1.0 A, max. 12 W; PoE (802.3at, 42.5 V to 57 V), 0.3 A to 0.2 A,-IZHS: 12 VDC, 1.3 A, max. 15 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A

Camera Dimension

Camera: Φ144 × 347 mm (Φ5.7″ × 13.7″),With package: 405 × 190 × 180 mm (15.9″ × 7.5″ × 7.1″)

Camera Weight

Camera: approx. 2.45 kg (5.40 lb.),With package: approx. 2.7 kg (5.95 lb.)

Approval

Protection

IP67，IK10
